IFM OJ5126 - Retro-Reflective Sensor, Retro-Reflective, Range to 2 m

IFM OJ5126 - Retro-Reflective Sensor, Retro-Reflective, Range to 2 m

SKUOJ5126BrandIFM
AED 531.15
AED 590.17 AED 531.15
Sale Sold out
Shipping calculated at checkout.

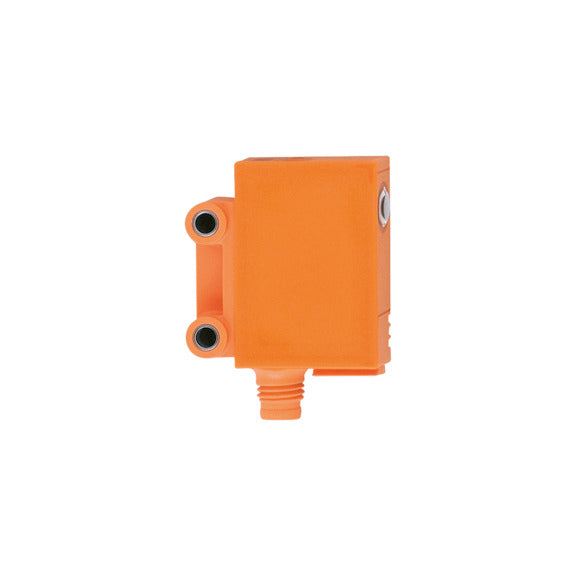

IFM OJ5126 Retro-Reflective Sensor — compact retro-reflective sensor with polarization filter, red light, range to 2 m, PNP. retro-reflective photoelectric sensor with polarization filter, visible red light 660 nm, range up to 2 m to prismatic reflector, PNP light-on/dark-on output, compact ABS housing with stainless sleeves, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: OJ5126

Also known as: IFM OJ5126 retroreflective sensor / photoelectric sensor / optical sensor / reflex sensor.

OJ5126 Applications

The IFM OJ5126 retro-reflective sensor detects objects up to 2 m against a prismatic reflector, using a polarization filter for reliable detection of shiny targets. Its very compact housing fits where space is restricted, and the visible red light plus intuitive sensitivity setting make alignment and commissioning fast on packaging, conveyor and handling lines.

OJ5126 Specifications

Brand IFM Product Type Retro-reflective sensor
Product type code OJP-FPKG/SO/AS Light source Red light, 660 nm
Range (prismatic reflector) 0...2 m Special feature Polarization filter
Electrical design PNP Output function Light-on / dark-on (programmable)
Operating voltage 10...30 V DC Switching frequency 2000 Hz
Protection IP 67 Weight 27.6 g
Electrical connection M8 connector, A-coded, 4 contacts

OJ5126 Datasheet & Manual

Download Datasheet & ManualIFM OJ5126 · PDF · Official IFM document

OJ5126 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM OJ5126 retro-reflective sensor?

The OJ5126 has an operating range of 0...2 m using the prismatic reflector Ø 80 (E20005).

What light source does the OJ5126 use?

The OJ5126 uses red light at a 660 nm wavelength.

What output and switching frequency does the OJ5126 have?

The OJ5126 has a PNP switching output in programmable light-on/dark-on mode, with a switching frequency of 2000 Hz DC.

What is the operating voltage and output rating of the OJ5126?

The OJ5126 operates on 10...30 V DC, draws less than 22 mA, and has an output permanent current rating of 200 mA with a max 2.5 V voltage drop.

What protections does the OJ5126 include?

The OJ5126 has reverse polarity, pulsed short-circuit, and overload protection.

What housing and protection rating does the OJ5126 have?

The OJ5126 has an ABS housing with a SEPS LED window and is rated IP 67, operating from -25...60 degrees C.

How is the OJ5126 connected and is it adjustable?

The OJ5126 connects via a single M8 A-coded connector with 4 contacts, and its range is adjustable with a polarisation filter available.
