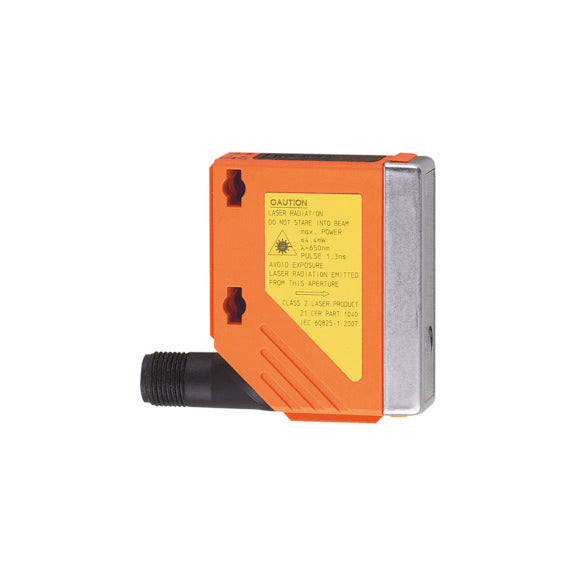

IFM O5D100 - Laser Distance Sensor, 0.03...2 m Range, Display + IO-Link

Q: How accurate is the O5D100 and how fast does it respond?

The IFM O5D100 accuracy ranges from +/-15 mm (0...1000 mm) to +/-30 mm (at 2000 mm) depending on distance and surface; it has a 33 Hz sampling rate, 11 Hz DC switching frequency and hysteresis < 2.5%.

Q: What outputs does the O5D100 provide?

The IFM O5D100 provides two PNP digital outputs, normally open / normally closed (complementary), with max. 100 mA current load per output.

Q: Does the O5D100 support IO-Link?

Yes. The IFM O5D100 supports IO-Link revision 1.1 at COM2 (38.4 kBaud).

Q: What is the operating voltage and current consumption of the O5D100?

The IFM O5D100 operates on 10...30 V DC and draws 75 mA at 24 V.

Q: What are the housing material, IP rating and temperature range of the O5D100?

The IFM O5D100 housing is PA with a stainless-steel bezel, TPU operator interface and PMMA lens; it is rated IP 65 and IP 67 and operates from -25...60 degrees C (warm-up required below -10 degrees C).

Q: Does the O5D100 have a display, and what electrical connection does it use?

Yes. The IFM O5D100 has a 3-digit alphanumeric display (unit: cm) and connects via an M12 A-coded connector with 4 contacts.

SKUO5D100BrandIFM

AED 679.00

Sale Sold out

Shipping calculated at checkout.

Only 3 left

Quantity

IFM O5D100 Laser Distance Sensor — compact time-of-flight sensor 0.03...2 m with display, 2 PNP outputs, background suppression and IO-Link. laser distance sensor with time-of-flight measurement 0.03...2 m, reliable background suppression, 3-digit display, 2 PNP switching outputs, IO-Link, laser class 2 red light, PA housing, IP65/IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: O5D100

Also known as: IFM O5D100 distance sensor / laser sensor / photoelectric sensor / optical sensor.

O5D100 Applications

The IFM O5D100 laser distance sensor detects objects and distances up to 2 m for positioning, presence and level tasks in packaging, handling and assembly. Time-of-flight measurement with background suppression reliably detects glossy and dark surfaces even at oblique angles, and the display with pushbuttons allows precise switch-point setting. IO-Link communication simplifies parameter setup and diagnostics on the line.

O5D100 Specifications

Brand	IFM	Product Type	Laser distance sensor with display
Product type code	O5DLCPKG/US	Light source	Red laser, class 2, 650 nm
Measuring range	0.03...2 m	Outputs	2 x PNP switching (NO/NC)
Interface	IO-Link 1.1 (COM2)	Operating voltage	10...30 V DC
Current consumption	75 mA	Sampling rate	33 Hz
Display	3-digit alphanumeric	Protection	IP 65; IP 67
Housing material	PA / stainless steel front	Weight	61.6 g
Electrical connection	M12 connector, A-coded, 4 contacts

O5D100 Datasheet & Manual

Download Datasheet & ManualIFM O5D100 · PDF · Official IFM document

O5D100 – Frequently Asked Questions (FAQ)

What is the measuring range of the IFM O5D100?

The IFM O5D100 has a measuring/sensing range of 0.03...2 m.

What operating principle and light source does the O5D100 use?

The IFM O5D100 is a photoelectric distance sensor with background suppression using a red laser at 650 nm wavelength, laser protection class 2 (output <= 4.0 mW).

How accurate is the O5D100 and how fast does it respond?

The IFM O5D100 accuracy ranges from +/-15 mm (0...1000 mm) to +/-30 mm (at 2000 mm) depending on distance and surface; it has a 33 Hz sampling rate, 11 Hz DC switching frequency and hysteresis < 2.5%.

What outputs does the O5D100 provide?

The IFM O5D100 provides two PNP digital outputs, normally open / normally closed (complementary), with max. 100 mA current load per output.

Does the O5D100 support IO-Link?

Yes. The IFM O5D100 supports IO-Link revision 1.1 at COM2 (38.4 kBaud).

What is the operating voltage and current consumption of the O5D100?

The IFM O5D100 operates on 10...30 V DC and draws 75 mA at 24 V.

What are the housing material, IP rating and temperature range of the O5D100?

The IFM O5D100 housing is PA with a stainless-steel bezel, TPU operator interface and PMMA lens; it is rated IP 65 and IP 67 and operates from -25...60 degrees C (warm-up required below -10 degrees C).

Does the O5D100 have a display, and what electrical connection does it use?

Yes. The IFM O5D100 has a 3-digit alphanumeric display (unit: cm) and connects via an M12 A-coded connector with 4 contacts.
