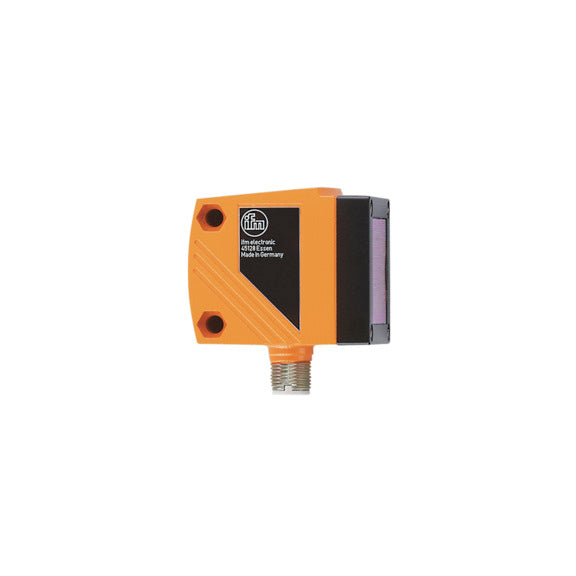

IFM O1D105 (O1DLF3KG/IO-LINK) - Laser Distance Sensor, Up to 10 m Range, IO-Link

SKUO1D105BrandIFM

AED 1,140.79

~~AED 1,267.56~~ AED 1,140.79

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM O1D105 Laser Distance Sensor — time-of-flight range to 10 m with background suppression 10...100 m window, 2 outputs incl. analog, IO-Link. optical time-of-flight distance measurement 0.2...10 m, two switching outputs (one configurable as 4...20 mA / 0...10 V analog), IO-Link 1.1, laser class 2, diecast zinc housing, 4-digit display, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN: O1DLF3KG/IO-LINK · SKU: O1D105

Also known as: IFM O1D105 distance sensor / laser sensor / photoelectric sensor / optical sensor.

O1DLF3KG/IO-LINK Applications

The IFM O1D105 (type O1DLF3KG) laser distance sensor measures distance up to 10 m using time-of-flight, suited to level, positioning and collision-protection tasks in logistics and machine automation. With background suppression, an analog output and IO-Link, plus a clear 4-digit display, it is easy to set up and integrate, and its diecast housing withstands harsh industrial duty.

O1DLF3KG/IO-LINK Specifications

Brand	IFM	Manufacturer Part No.	O1DLF3KG/IO-LINK
Product Type	Laser distance sensor	Light source	Red laser, class 2, 650 nm
Measuring range	0.2...10 m (90% remission)	Outputs	2 x PNP switching; 1 analog
Analog output	4...20 mA / 0...10 V	Interface	IO-Link 1.1 (COM2)
Operating voltage	18...30 V DC	Sampling rate	1...33 Hz
Display	4-digit alphanumeric	Protection	IP 67
Housing material	Diecast zinc	Weight	244.5 g
Electrical connection	M12 connector, A-coded, 5 contacts

O1DLF3KG/IO-LINK Datasheet & Manual

Download Datasheet & ManualIFM O1D105 · PDF · Official IFM document

O1DLF3KG/IO-LINK – Frequently Asked Questions (FAQ)

What is the measuring range of the IFM O1D105 laser distance sensor?

The O1D105 measures 0.2...10 m against white paper (200 x 200 mm, 90 percent reflectance).

What light source does the O1D105 use?

The O1D105 uses a laser class 2 light source with a 650 nm wavelength, power up to 4.0 mW, and a 1.3 ns pulse.

What outputs does the O1D105 provide?

The O1D105 has 2 programmable digital outputs (PNP, normally open / normally closed) plus 1 analogue output that is 4...20 mA or 0...10 V, scalable per IEC 61131-2.

Does the O1D105 support IO-Link?

Yes, the O1D105 supports IO-Link revision 1.1 with COM2 transmission at 38.4 kBaud.

What is the operating voltage and current consumption of the O1D105?

The O1D105 operates on 18...30 V DC and draws less than 150 mA, with reverse polarity and pulsed short-circuit protection.

What housing and protection rating does the O1D105 have?

The O1D105 has a diecast zinc housing with a glass front pane and is rated IP 67, operating from -10...60 degrees C ambient.

Does the O1D105 have a display and how is it connected?

The O1D105 has a 4-digit alphanumeric display plus 2 yellow status LEDs, and connects via a single M12 A-coded connector with 5 contacts.

What is the adjustable sampling rate of the O1D105?

The O1D105 has an adjustable sampling rate of 1...33 Hz and offers background suppression from 10...100 m.
