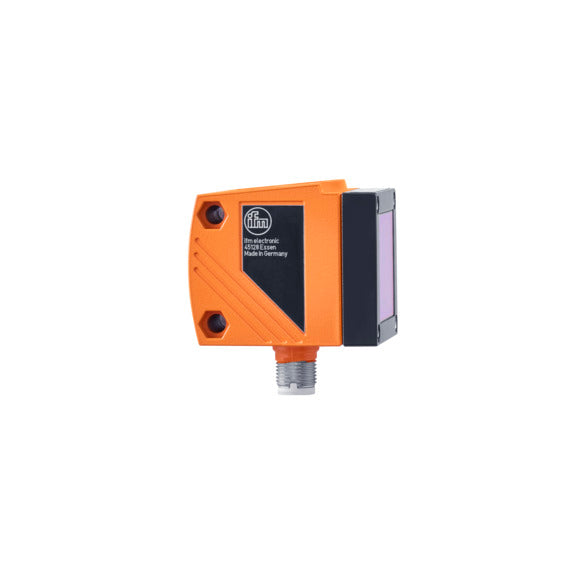

IFM O1D106 (O1DLF3KG) - Laser Distance Sensor, Up to 75 m, IO-Link

SKUO1D106BrandIFM

AED 2,023.14

~~AED 2,247.94~~ AED 2,023.14

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM O1D106 Laser Distance Sensor — reflector range up to 75 m for crane systems, 2 outputs incl. analog, IO-Link. laser distance sensor with background suppression, range up to 75 m with reflector, two switching outputs (one analog 4...20 mA / 0...10 V), IO-Link, laser class 2, diecast zinc, 4-digit display, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN: O1DLF3KG · SKU: O1D106

Also known as: IFM O1D106 distance sensor / laser sensor / photoelectric sensor / optical sensor.

O1DLF3KG Applications

The IFM O1D106 (type O1DLF3KG) laser distance sensor measures up to 75 m against a reflector, designed for crane positioning and long-range distance tasks, with analog output and IO-Link for straightforward integration.

O1DLF3KG Specifications

Brand	IFM	Manufacturer Part No.	O1DLF3KG
Product Type	Laser distance sensor	Light source	Red laser, class 2, 650 nm
Measuring range	1...75 m (reflector)	Outputs	2 x PNP switching; 1 analog
Analog output	4...20 mA / 0...10 V	Interface	IO-Link 1.1
Operating voltage	18...30 V DC	Display	4-digit
Protection	IP 67	Weight	242.6 g

O1DLF3KG Datasheet & Manual

Download Datasheet & ManualIFM O1D106 · PDF · Official IFM document

O1DLF3KG – Frequently Asked Questions (FAQ)

What is the measuring range of the IFM O1D106 laser distance sensor?

The O1D106 measures up to 1...75 m using reflector E21159, with background suppression from 75...150 m.

What light source does the O1D106 use?

The O1D106 uses a class 2 laser at 650 nm wavelength with a power of up to 4.0 mW and a pulse of 1.3 ns.

How accurate and repeatable is the O1D106?

On the O1D106, repeatability is +/-15 mm and accuracy +/-35 mm at 1-25 m, +/-19 mm / +/-39 mm at 50 m, and +/-43 mm / +/-63 mm at 70 m; sampling rate is 1...33 Hz with a minimum process cycle time of 5 ms.

What outputs does the O1D106 provide?

The O1D106 has 2 digital PNP outputs (programmable normally open / normally closed) rated at 200 mA each, plus 1 analog output selectable as 4...20 mA or 0...10 V.

Does the O1D106 support IO-Link?

Yes, the O1D106 supports IO-Link revision 1.1 with COM2 transmission at 38.4 kBaud.

What voltage does the O1D106 operate on?

The O1D106 operates on 18...30 V DC with a current consumption of less than 150 mA, and includes reverse polarity and short-circuit protection.

What is the housing and display of the O1D106?

The O1D106 has a diecast zinc housing with a glass front pane, rated IP 67, and features a 4-digit alphanumeric display with 2 programming buttons.

What is the operating temperature and connection of the O1D106?

The O1D106 operates over -10...60 C and connects via a single M12 A-coded 5-pin connector.
