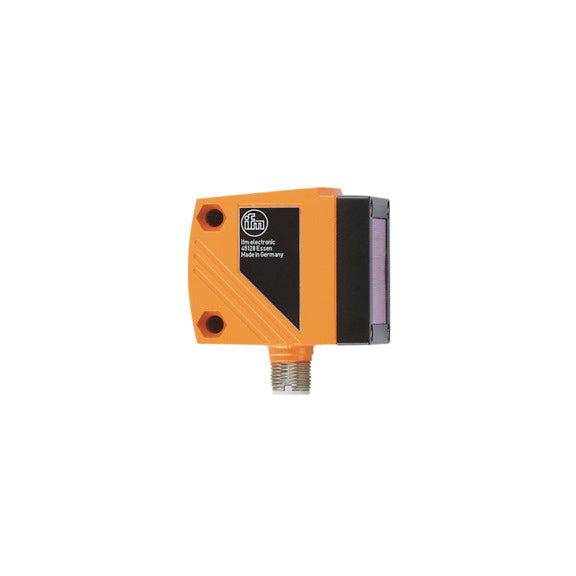

IFM O1D300 (O1DLF3KG/IO-LINK) - Optical Level Sensor, Up to 9.8 m Range, IO-Link

SKUO1D300BrandIFM

AED 1,508.44

~~AED 1,676.06~~ AED 1,508.44

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM O1D300 Optical Level Sensor — optical level measurement to 9.8 m with cm-based level scaling, 2 outputs incl. analog, IO-Link. photoelectric time-of-flight level/distance measurement 0.2...10 m, cm-based level scaling, two switching outputs (one configurable analog 4...20 mA / 0...10 V), IO-Link, laser class 2, diecast zinc housing, 4-digit display, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN: O1DLF3KG/IO-LINK · SKU: O1D300

Also known as: IFM O1D300 level sensor / distance sensor / laser sensor.

O1DLF3KG/IO-LINK Applications

The IFM O1D300 optical level sensor uses laser time-of-flight to measure level and distance up to about 9.8 m without contact, avoiding wear and deposits associated with mechanical devices. With cm-based level scaling, analog output and IO-Link, it suits bulk-solid and liquid level monitoring in tanks, silos and process plant, backed by a rugged diecast housing and clear display.

O1DLF3KG/IO-LINK Specifications

Brand	IFM	Manufacturer Part No.	O1DLF3KG/IO-LINK
Product Type	Optical level sensor	Measuring principle	Photoelectric (time-of-flight)
Light source	Red laser, class 2, 650 nm	Measuring range	0.2...10 m (90% remission)
Outputs	2 x PNP switching; 1 analog	Analog output	4...20 mA / 0...10 V
Interface	IO-Link 1.1 (COM2)	Operating voltage	18...30 V DC
Display	4-digit alphanumeric (cm)	Protection	IP 67
Housing material	Diecast zinc	Weight	240 g
Electrical connection	M12 connector, A-coded, 5 contacts

O1DLF3KG/IO-LINK – Frequently Asked Questions (FAQ)

What is the measuring range of the IFM O1D300 optical level sensor?

The O1D300 measures 0.2...10 m to a white target (90 percent remission) and to a grey target (18 percent remission), and up to 400.0 cm to a black target (6 percent remission).

What light source does the O1D300 use?

The O1D300 uses visible laser light, protection class 2, with a wavelength of 650 nm and power up to 4.0 mW.

What outputs does the O1D300 offer?

The O1D300 has two outputs: OUT1 is programmable normally open / normally closed, and OUT2 is programmable normally open / normally closed or analogue (4...20 mA or 0...10 V, scalable).

What are the analogue output loads for the O1D300?

On the O1D300, the 4...20 mA output drives a max load of 250 Ohms and the 0...10 V output requires a min load of 5000 Ohms.

Does the O1D300 support IO-Link?

Yes, the O1D300 supports IO-Link revision 1.1 with COM2 transmission at 38.4 kBaud.

What is the operating voltage and protection of the O1D300?

The O1D300 operates on 18...30 V DC, draws less than 150 mA, and has reverse polarity protection plus pulsed short-circuit protection.

What housing, IP rating, and temperature range does the O1D300 have?

The O1D300 has a diecast zinc housing, is rated IP 67, and operates over an ambient range of -10...60 degrees C.

Does the O1D300 have a display and adjustable sampling rate?

The O1D300 has a 4-digit alphanumeric display, an adjustable sampling rate of 1...33 Hz (default 15 Hz), and background suppression over 10...100 m.
