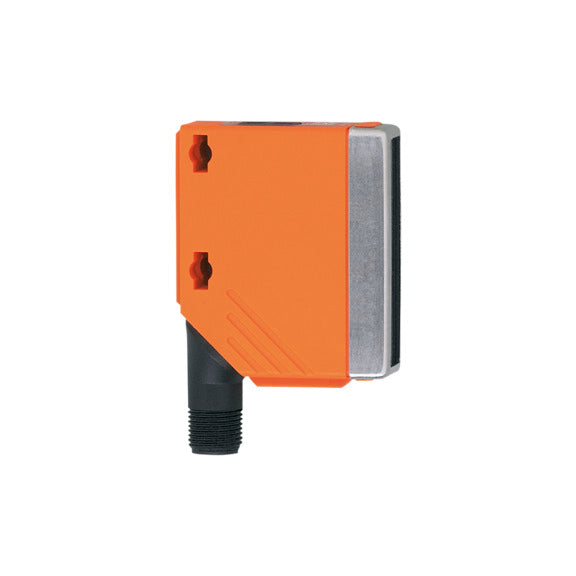

IFM O5H200 - Diffuse Reflection Sensor, Range to 1.4 m, Background Suppr.

SKUO5H200BrandIFM

AED 546.36

~~AED 607.06~~ AED 546.36

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM O5H200 Diffuse Reflection Sensor — diffuse reflection with background suppression, range to 1.4 m, PNP light-on. diffuse reflection photoelectric sensor with precise background suppression, red light, range 50...1400 mm, PNP light-on output, potentiometer sensitivity, rectangular housing, IP65.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: O5H200

Also known as: IFM O5H200 distance sensor / laser sensor / photoelectric sensor / optical sensor.

O5H200 Applications

The IFM O5H200 diffuse reflection sensor detects objects up to 1.4 m with precise background suppression, ignoring the background behind the target. Intuitive potentiometer setting suits packaging and handling automation.

O5H200 Specifications

Brand	IFM	Product Type	Diffuse reflection sensor
Product type code	O5H-HPKG/US100	Light source	Red light, 624 nm
Range	50...1400 mm (background suppression)	Output	PNP light-on
Operating voltage	10...36 V DC	Switching frequency	1000 Hz
Protection	IP 65	Weight	62.5 g

O5H200 Datasheet & Manual

Download Datasheet & ManualIFM O5H200 · PDF · Official IFM document

O5H200 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM O5H200 diffuse reflection sensor?

The O5H200 has an adjustable range of 50...1400 mm against white paper (200 x 200 mm, 90% remission). It reaches 50...800 mm on grey objects (18% remission) and 50...550 mm on black objects (6% remission), with a maximum light spot diameter of 50 mm.

What light source and operating principle does the O5H200 use?

The O5H200 is a diffuse reflection sensor that uses red light at a wavelength of 624 nm.

What is the switching frequency of the IFM O5H200?

The O5H200 has a DC switching frequency of 1000 Hz.

What output does the O5H200 provide and what is its current rating?

The O5H200 has a PNP switching output configured in light-on mode, with a permanent current rating of 200 mA and a maximum voltage drop of 2.5 V DC.

What is the operating voltage and current consumption of the O5H200?

The O5H200 operates on 10...36 V DC and has a current consumption of 25 mA. It includes reverse polarity, pulsed short-circuit, and overload protection.

What is the housing material and IP rating of the IFM O5H200?

The O5H200 has a rectangular housing with a PA body, TPE operator interface, and stainless steel bezel, rated to IP 65. Its ambient temperature range is -25...60 °C.

What electrical connection does the O5H200 use?

The O5H200 uses one M12 connector, A-coded, with 4 contacts.

Does the IFM O5H200 offer background suppression?

Yes, the O5H200 features adjustable background suppression.
