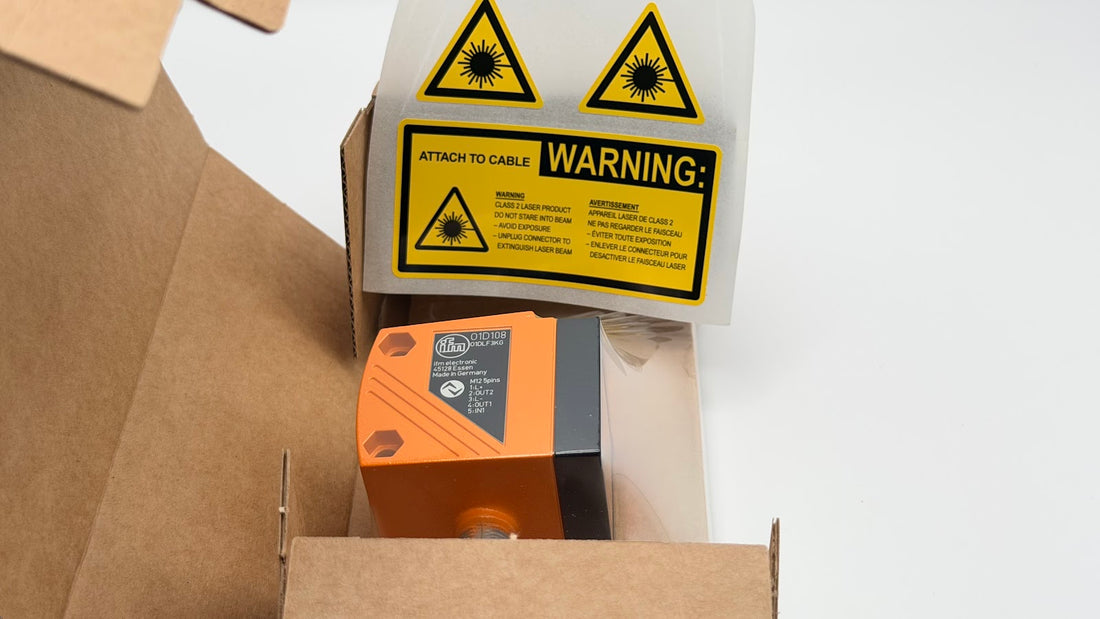

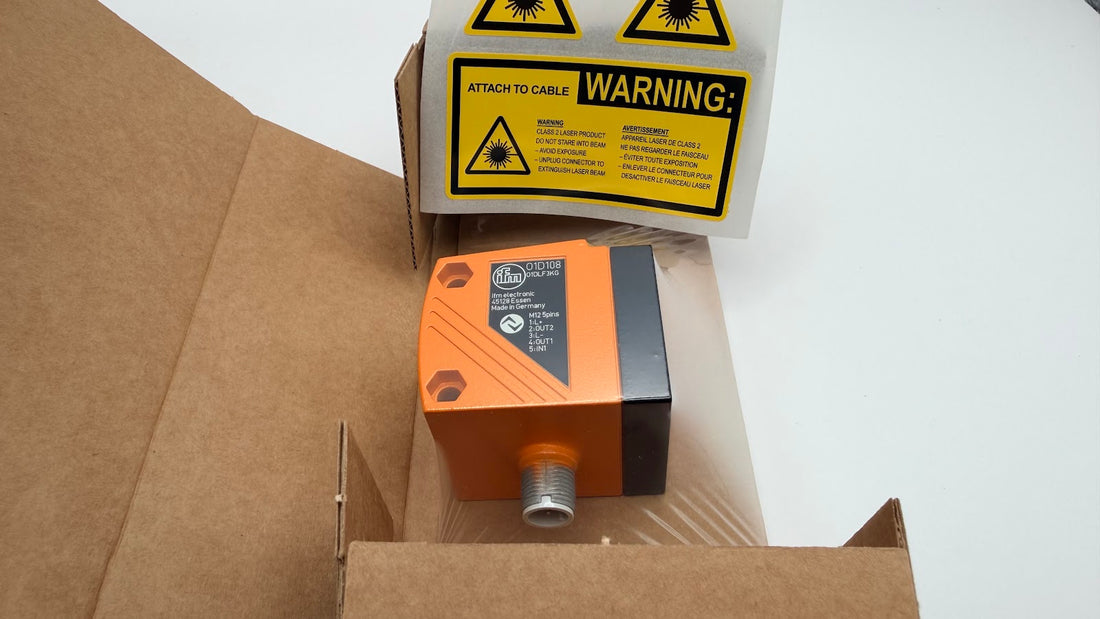

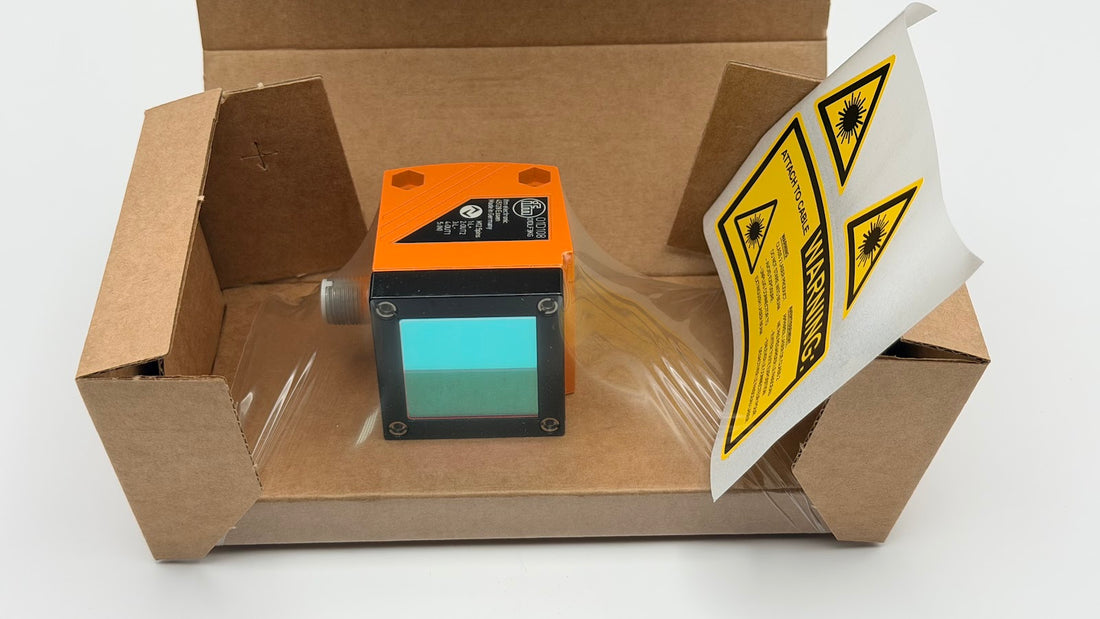

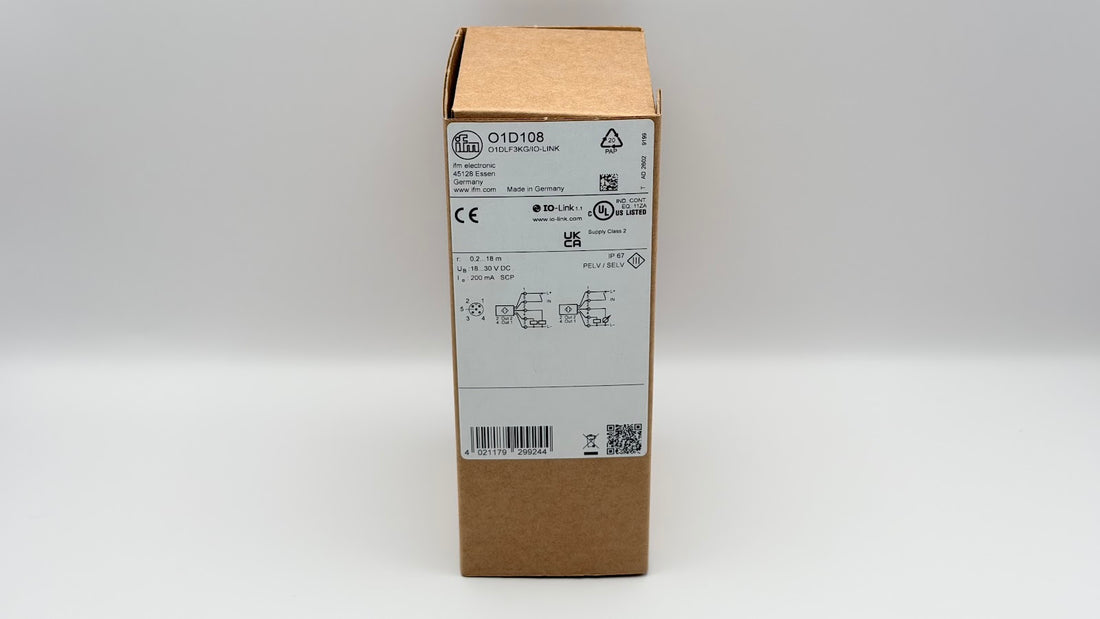

IFM O1D108 - Laser Distance Sensor, 0.2...18 m range, Laser class 2, IO-Link
Shipping calculated at checkout.
In stock
IFM O1D108 Laser Distance Sensor — Long-range laser measurement to 18 m with 4-digit display and IO-Link. 0.2...18 m, laser class 2 (650 nm), 18...30 V DC, 2 x PNP + 1 analogue, IO-Link, M12, IP 67.Shipping & ReturnsSame-day dispatch across UAEOrder before 2 PM... Read more
Description
IFM O1D108 Laser Distance Sensor — Long-range laser measurement to 18 m with 4-digit display and IO-Link. 0.2...18 m, laser class 2 (650 nm), 18...30 V DC, 2 x PNP + 1 analogue, IO-Link, M12, IP 67.
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: O1D108
Also known as: IFM O1D108 distance sensor / photoelectric sensor / optical sensor.
O1D108 Applications
The O1D108 photoelectric distance sensor uses a visible laser to measure distances up to 18 m regardless of target colour or surface. Suited to industrial applications and factory automation, it provides two programmable digital switching outputs and one analogue output, plus IO-Link communication for parameter setting and process data. The 4-digit alphanumeric display and pushbuttons allow fast on-site setup, while the diecast zinc housing rated to IP 67 withstands demanding production environments.
O1D108 Specifications
| Brand | IFM | Product Type | Photoelectric distance sensor for precise distance measurement in industrial applications and factory automation. |
| IFM Type Code | O1DLF3KG/IO-LINK | Measuring range | 0.2...18 m (white paper 200 x 200 mm, 90% remission) |
| Light source | Laser, 650 nm | Laser class | 2 |
| Sampling rate | 1...33 Hz (factory setting 15 Hz) | Operating voltage | 18...30 V DC |
| Current consumption | < 150 mA | Outputs | 2 x digital (PNP, 200 mA) + 1 x analogue |
| Analogue output | 4...20 mA / 0...10 V | Output function | Normally open / normally closed, programmable |
| Communication interface | IO-Link COM2 (38.4 kBaud), revision 1.1 | Electrical connection | M12 connector, A-coded, 5 pins |
| Housing material | Diecast zinc; glass front pane | Protection rating | IP 67 |
| Ambient temperature | -10...60 °C |
O1D108 Datasheet & Manual
Download Datasheet & ManualIFM O1D108 · PDF · Official IFM documentO1D108 – Frequently Asked Questions (FAQ)
What is the measuring range of the IFM O1D108?
The IFM O1D108 measures distances from 0.2 to 18 m against white paper (200 x 200 mm, 90% remission).
What laser class does the IFM O1D108 use?
The IFM O1D108 uses a visible red laser at 650 nm and is classified as laser class 2.
What outputs does the IFM O1D108 provide?
It provides two programmable digital PNP switching outputs (200 mA) and one analogue output (4...20 mA / 0...10 V).
Does the IFM O1D108 support IO-Link?
Yes, the IFM O1D108 supports IO-Link COM2 at 38.4 kBaud, revision 1.1, for parameter setting and process data.
What is the operating voltage of the IFM O1D108?
The IFM O1D108 operates on 18...30 V DC with a current consumption below 150 mA.
What is the electrical connection of the IFM O1D108?
The IFM O1D108 connects via an M12 A-coded connector with 5 pins.
What is the protection rating of the IFM O1D108?
The IFM O1D108 has a diecast zinc housing rated IP 67.
What is the operating temperature range of the IFM O1D108?
The IFM O1D108 operates within an ambient temperature range of -10 to 60 °C.
