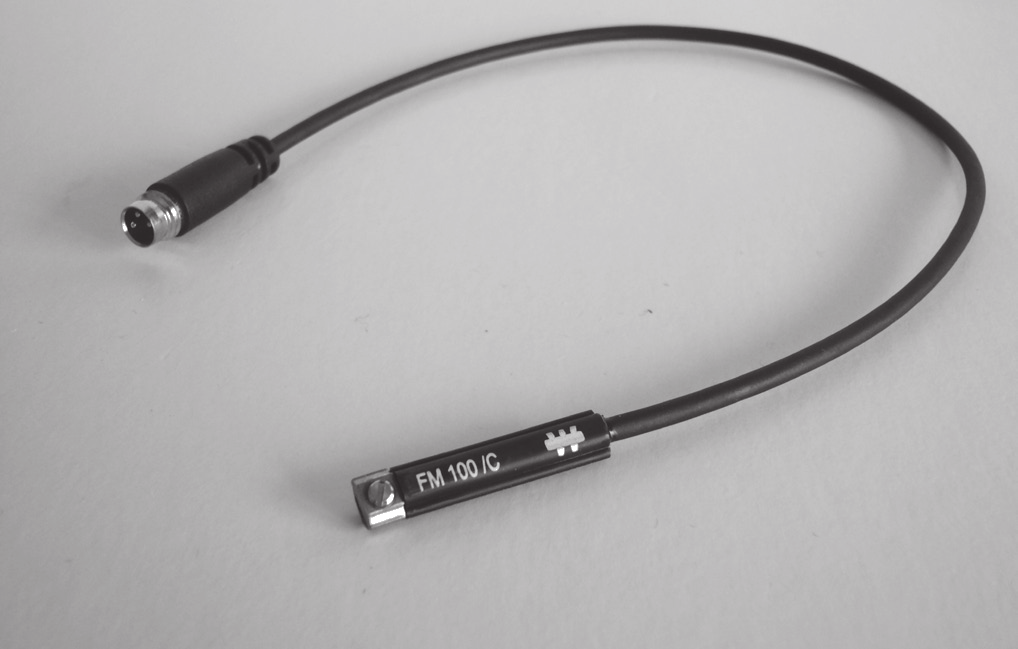

Waircom FM100R - Series FM100 Magnetic Reed Switch (3 m Cable, IP 67)

Waircom FM100R - Series FM100 Magnetic Reed Switch (3 m Cable, IP 67)

SKUFM100RBrandWaircom
AED 91.00
AED 91.00
Sale Sold out
Shipping calculated at checkout.

In stock

The Waircom FM100R is an industrial magnetic reed switch from the Series FM100 product line, designed for accurate piston position sensing on pneumatic cylinders. This 3-wire, N.O. sensor interfaces seamlessly with automation controllers, operating on a versatile voltage range from 3 ÷ 30 V AC/DC. Built for reliable execution under demanding factory conditions, it features a 200 mA maximum exchange current, a 500 Hz operating frequency, and a resilient IP 67 protection rating. The switch comes pre-wired with a 3 m Bare cable and functions effectively in environments from -10 ÷ +70 °C.

View full details
  • Brand: Waircom
  • Family: FM100
  • Switch Model: Reed switch
  • Contacts / Output: N.O.
  • Number of Wires: 3-wire
  • Termination: Bare cable
  • Cable Length: 3 m
  • Operating Voltage: 3 ÷ 30 V AC/DC
  • Max Exchange Current: 200 mA
  • Max Power: 6 W
  • Operating Frequency: 500 Hz
  • Working Temperature: -10 ÷ +70 °C
  • Protection Class: IP 67
