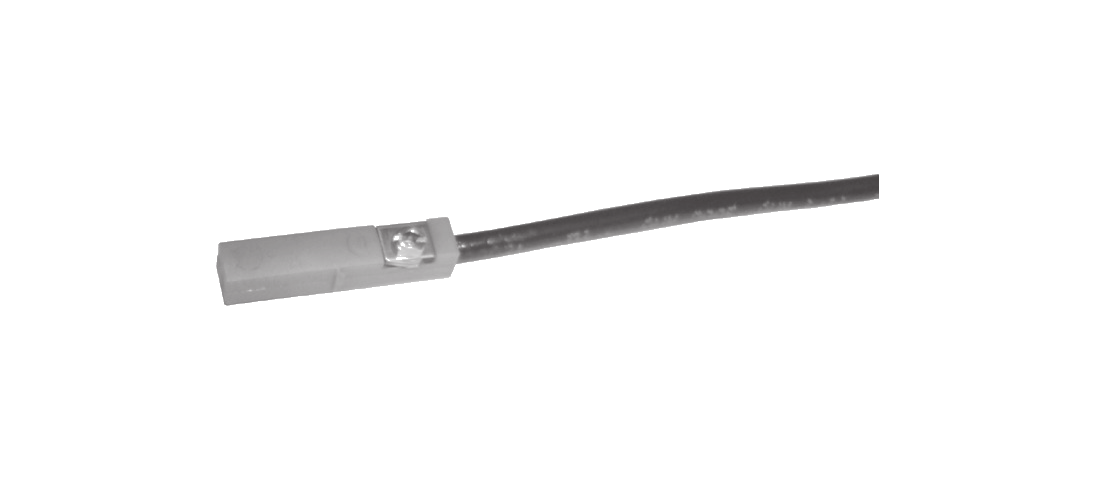

Waircom FM100/EX 3GD - Series FM100/EX Magnetic Magnetoresistive (6 m Cable, IP 65 / IP 67)

Waircom FM100/EX 3GD - Series FM100/EX Magnetic Magnetoresistive (6 m Cable, IP 65 / IP 67)

SKUFM100/EX 3GDBrandWaircom
AED 199.00
AED 199.00
Sale Sold out
Shipping calculated at checkout.

In stock

The Waircom FM100/EX 3GD is an industrial magnetic magnetoresistive from the Series FM100/EX product line, designed for accurate piston position sensing on pneumatic cylinders. This 3-wire, PNP N.A. sensor interfaces seamlessly with automation controllers, operating on a versatile voltage range from 10 ÷ 30 V DC. Built for reliable execution under demanding factory conditions, it features a 100 mA maximum exchange current, a 6000 Hz operating frequency, and a resilient IP 65 / IP 67 protection rating. The switch comes pre-wired with a 6 m Bare cable and functions effectively in environments from -20 ÷ +60 °C.

View full details
  • Brand: Waircom
  • Family: FM100/EX
  • Switch Model: Magnetoresistive (Hall effect)
  • Contacts / Output: PNP N.A.
  • Number of Wires: 3-wire
  • Termination: Bare cable
  • Cable Length: 6 m
  • Operating Voltage: 10 ÷ 30 V DC
  • Max Exchange Current: 100 mA
  • Operating Frequency: 6000 Hz
  • Working Temperature: -20 ÷ +60 °C
  • Protection Class: IP 65 / IP 67
  • ATEX Marking: II 3D Ex tc IIIC T125 °C Dc X / II 3G Ex nA IIC T4 Gc X
