• Waircom - FM100/EX 1GD
1 1

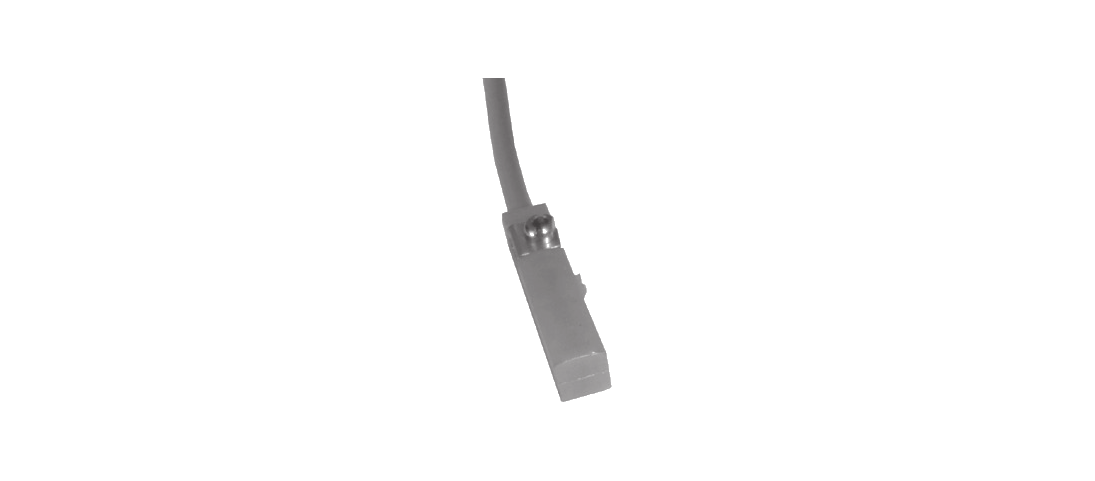

Waircom FM100/EX 1GD - Series FM100/EX Magnetic Magnetoresistive (6 m Cable, IP 65 / IP 67)

Waircom FM100/EX 1GD - Series FM100/EX Magnetic Magnetoresistive (6 m Cable, IP 65 / IP 67)

SKUFM100/EX 1GDBrandWaircom
AED 172.00
AED 172.00
Sale Sold out
Shipping calculated at checkout.

In stock

The Waircom FM100/EX 1GD is an industrial magnetic magnetoresistive from the Series FM100/EX product line, designed for accurate piston position sensing on pneumatic cylinders. This 2-wire, PNP intrinsically safe (N.A.) sensor interfaces seamlessly with automation controllers, operating on a versatile voltage range from 8.2 V DC. Built for reliable execution under demanding factory conditions, it features a 50 mA (Uo=15 V, Po=120 mW) maximum exchange current, a 2000 Hz operating frequency, and a resilient IP 65 / IP 67 protection rating. The switch comes pre-wired with a 6 m Bare cable and functions effectively in environments from -25 ÷ +70 °C.

View full details
  • Brand: Waircom
  • Family: FM100/EX
  • Switch Model: Magnetoresistive (Hall effect)
  • Contacts / Output: PNP intrinsically safe (N.A.)
  • Number of Wires: 2-wire
  • Termination: Bare cable
  • Cable Length: 6 m
  • Operating Voltage: 8.2 V DC
  • Max Exchange Current: 50 mA (Uo=15 V, Po=120 mW)
  • Operating Frequency: 2000 Hz
  • Working Temperature: -25 ÷ +70 °C
  • Protection Class: IP 65 / IP 67
  • ATEX Marking: II 1D Ex ia IIIC T135 °C Da / II 1G Ex ia IIC T4 Ga
