- Brand
- Waircom
- Family

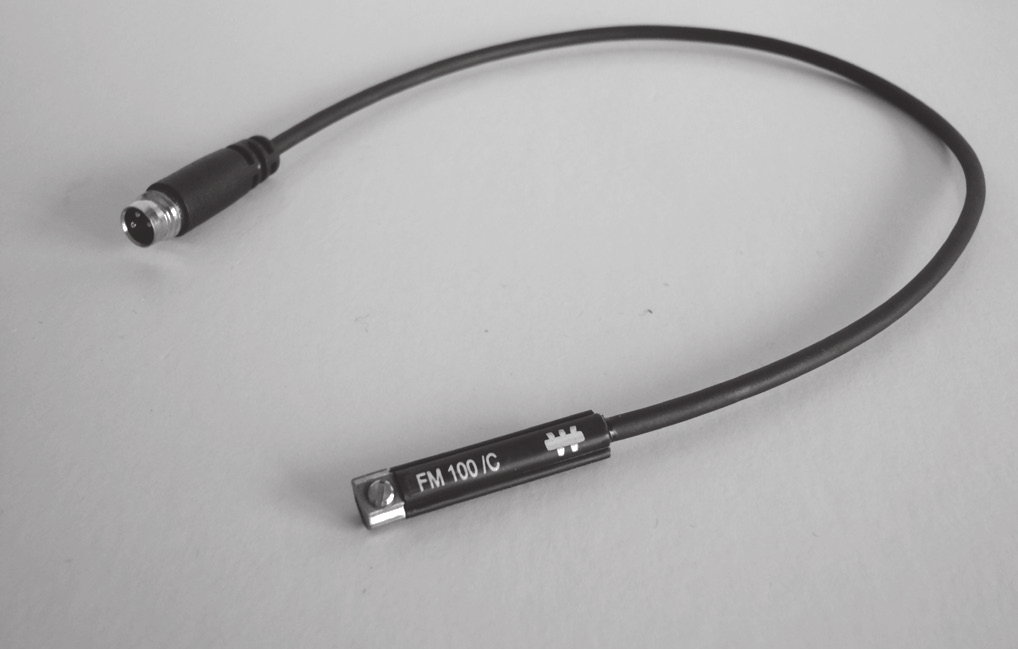

- FM100
- Switch Model
- Reed switch
- Contacts / Output
- N.O.
- Number of Wires
- 2-wire
- Termination
- Bare cable
- Cable Length
- 3 m
ParameterValue
- Operating Voltage
- 3 ÷ 230 V AC/DC
- Max Exchange Current
- 500 mA
- Max Power
- 10 W
- Operating Frequency
- 200 Hz
- Working Temperature
- -10 ÷ +70 °C
- Protection Class
- IP 67
ParameterValue
