• Finder - 66.22.9.024.0600S
1 1

66.22.9.024.0600S - Finder DPST Power Relay, 50000 mA (24 VDC)

66.22.9.024.0600S - Finder DPST Power Relay, 50000 mA (24 VDC)

SKU66.22.9.024.0600SBrandFinder
AED 106.00
AED 106.00
Sale Sold out
Shipping calculated at checkout.

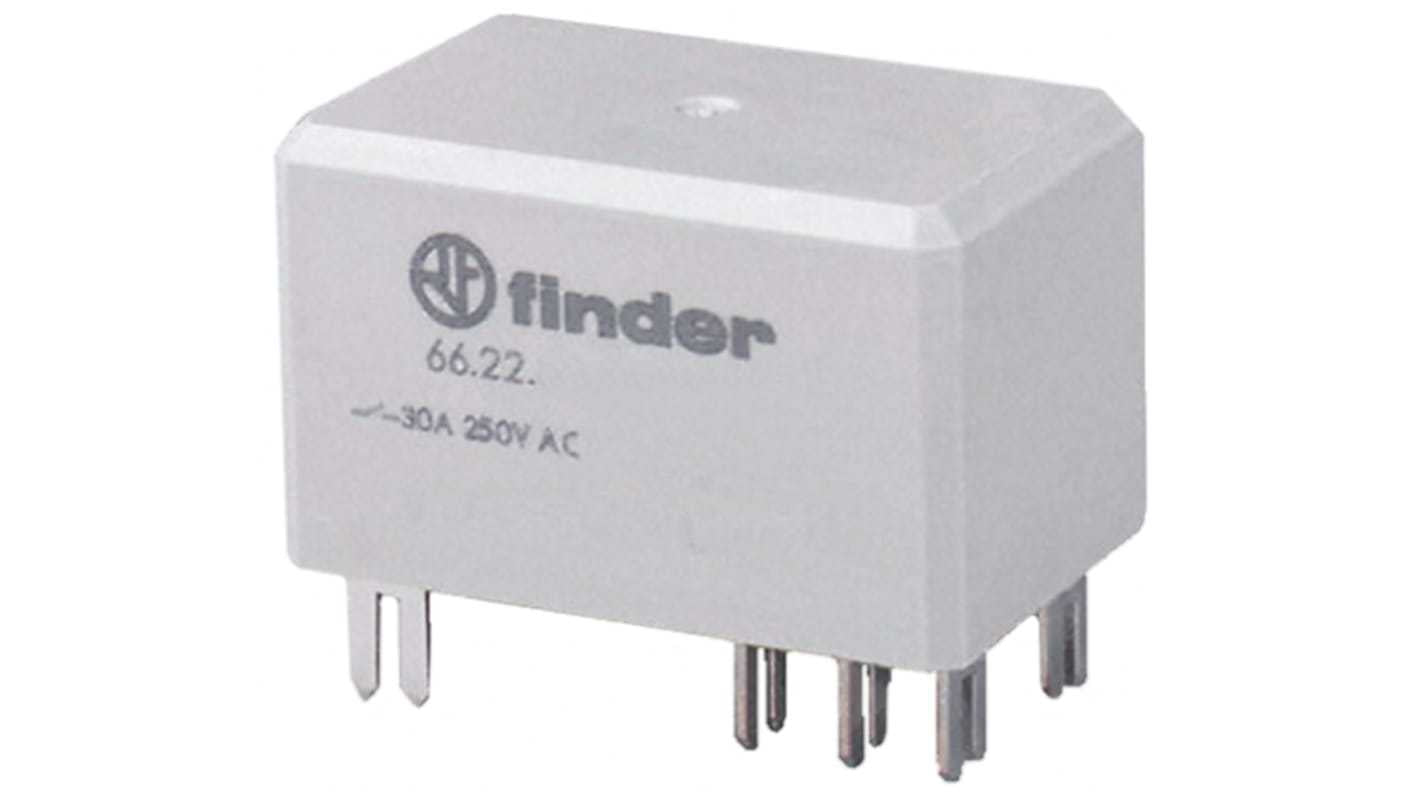

The 66.22.9.024.0600S is a precision-engineered power relay from Finder, part of the 66 series. Featuring a DPST contact configuration rated at 50000 mA switching current, operating on a 24 VDC coil. Its Silver Alloy contacts minimize resistance and arcing, with PCB-Mount installation and Through-Hole terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Finder
  • Application: Power
  • Coil Power: 1.7 W
  • Coil Resistance: 340 Ω
  • Coil Voltage: 24 VDC
  • Contact Configuration: DPST
  • Contact Material: Silver Alloy
  • Depth: 33.5 mm
  • Height: 31 mm
  • Isolation Coil To Contact: 6 kV
  • Latching: No
  • Length: 51.5 mm
  • Maximum Operating Temperature: 70 °C
  • Maximum Switching Voltage: 440 V
  • Maximum Switching Voltage AC: 440 V
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: PCB-Mount
  • Number of Poles: 2
  • Series: 66
  • Switching Current: 50000 mA
  • Terminal Type: Through-Hole
