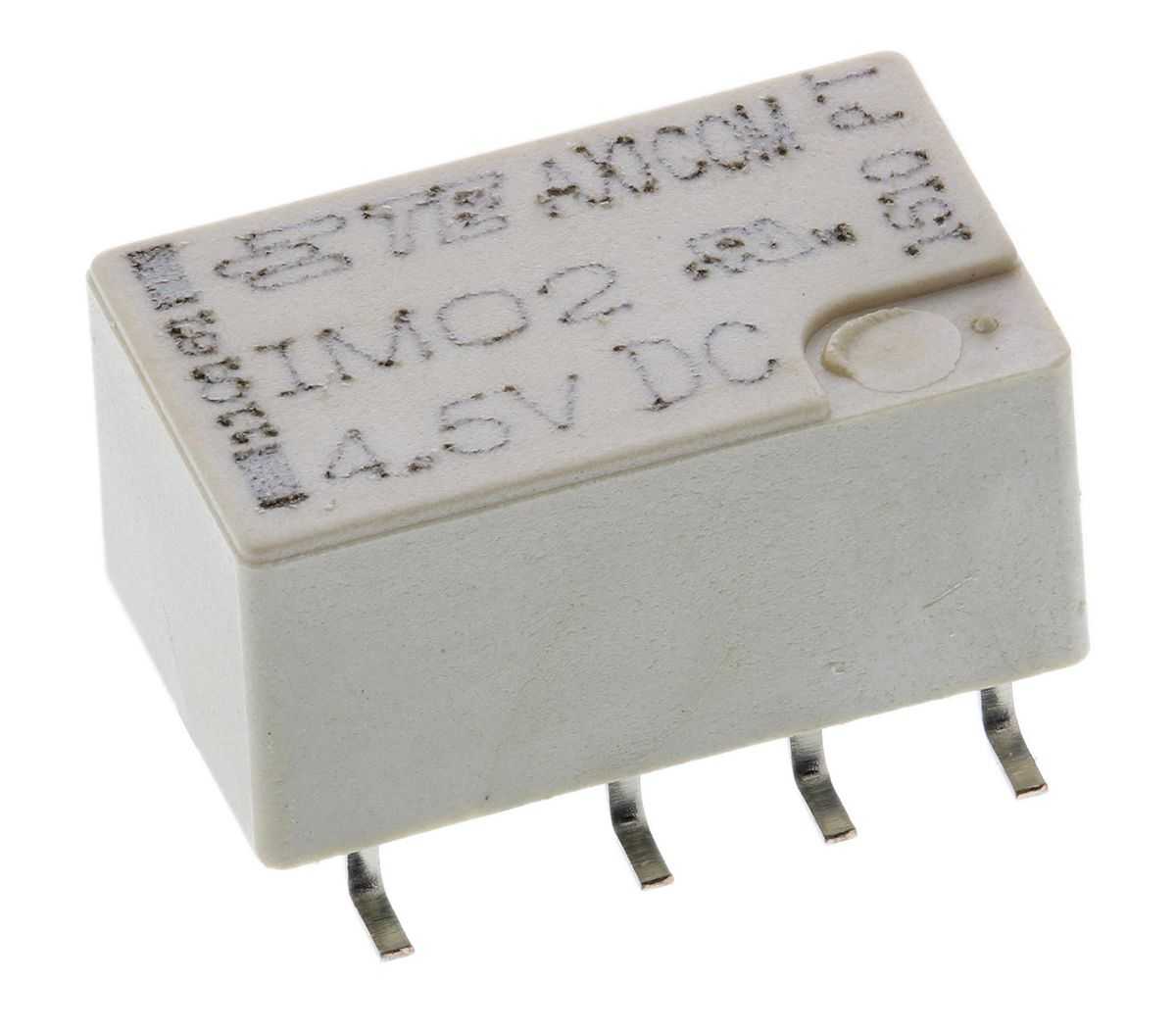

• Te-connectivity - IM02GR
1 1

Te-connectivity Signal Relays IM02GR

Te-connectivity Signal Relays IM02GR

SKUIM02GRBrandTe-connectivity
AED 14.13
AED 14.13
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, Signal Relays, 220 VDC Contact Voltage, 250 VAC Contact Voltage, 140 mW Coil Power (DC), Printed Circuit Board, PCB-SMT, Axicom IM Alias: A86831-000IM02GR=IM RELAY 140mW 4.5V

View full details
ParameterValue
Brand
TE Connectivity
Coil Voltage
4.5V dc
Contact Configuration
DPDT
Mounting Type
Surface Mount
Maximum Switching Current DC
2 A
Maximum Switching Current (DC)
2 A
Maximum Switching Voltage AC
250V
Maximum Switching Voltage (AC)
250V
Maximum Switching Voltage DC
220V
Maximum Switching Voltage (DC)
220V
Series
IM
Maximum Switching Power DC
60 W
Maximum Switching Power (DC)
60 W
Length
10mm
Latching
No
Depth
6mm
ParameterValue
Height
5.65mm
Dimensions
10 x 6 x 5.65mm
Terminal Type
Through Hole
Application
Signal
Switching Current
2A
Number of Poles
2
Minimum Operating Temperature
-40°C
Coil Power
140mW
Maximum Operating Temperature
+85°C
Isolation Coil To Contact
2kV ac
Maximum Switching Power AC
62.5VA
Coil Resistance
145?
Operating Temperature Range
-40 ? +85°C
Features
Bifurcated Contacts, Low Coil Power Consumption
Contact Material
Gold Plated
Country of Origin
Switzerland
