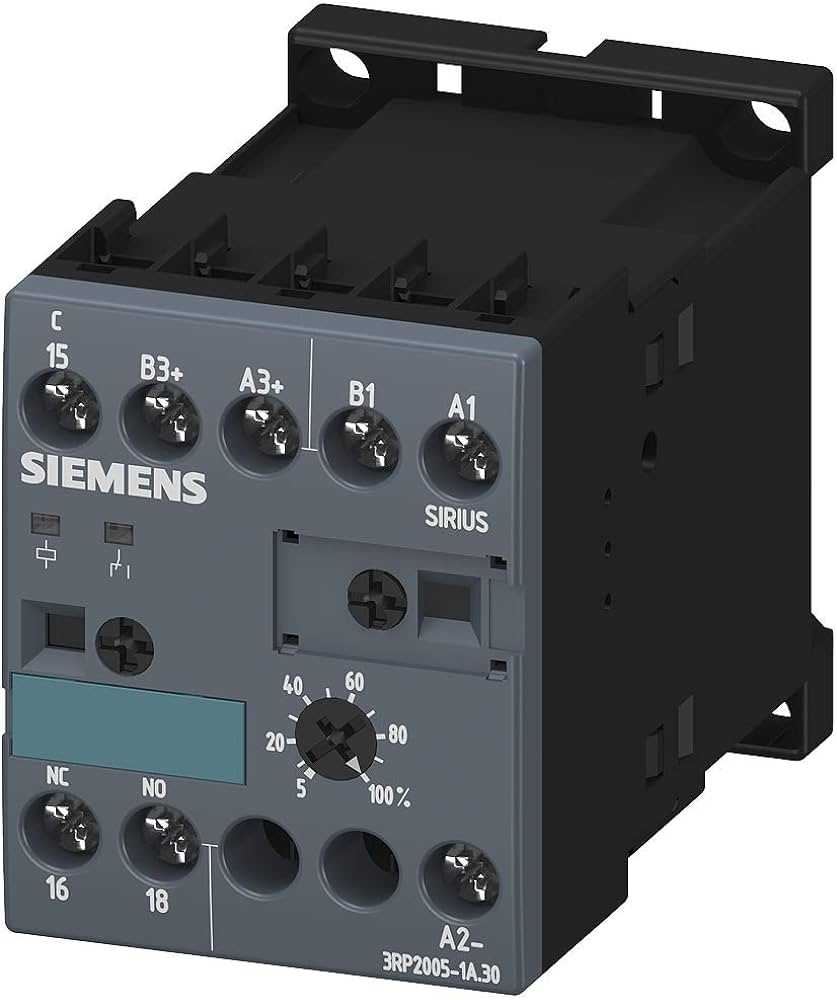

3RP2005-1AQ30 - Siemens Multifunction Timer Relay, 0.05 – 100 h, 0.05 – 100 min, 0.05 – 100s 100 – 127 V AC, 24 V AC/DC (DIN Rail)

The 3RP2005-1AQ30 is a versatile timer relay manufactured by Siemens, part of this product line, measuring 57mm in length. Featuring Additive ON Delay with Auxiliary Voltage, Flash Start with Interval, OFF Delay with Auxiliary Voltage, ON Delay, ON Delay & OFF Delay with Auxiliary Voltage, Passing Break Contact with Auxiliary Voltage, Passing Make Contact, Pulse Former with Auxiliary Voltage timing mode with a configurable time range of 0.05 – 100 h, 0.05 – 100 min, 0.05 – 100s across Hours, Minutes, Seconds increments, this timer relay operates on a 100 – 127 V AC, 24 V AC/DC supply voltage. It provides SPDT output contacts rated for (dc) 1 A, (ac) 3 A at 250 V AC/DC, with Screw termination and DIN Rail installation. With multi function timer, a External power supply configuration, it delivers precise, repeatable time control for industrial automation sequences, motor starting, lighting control, HVAC scheduling, and process timing applications.
