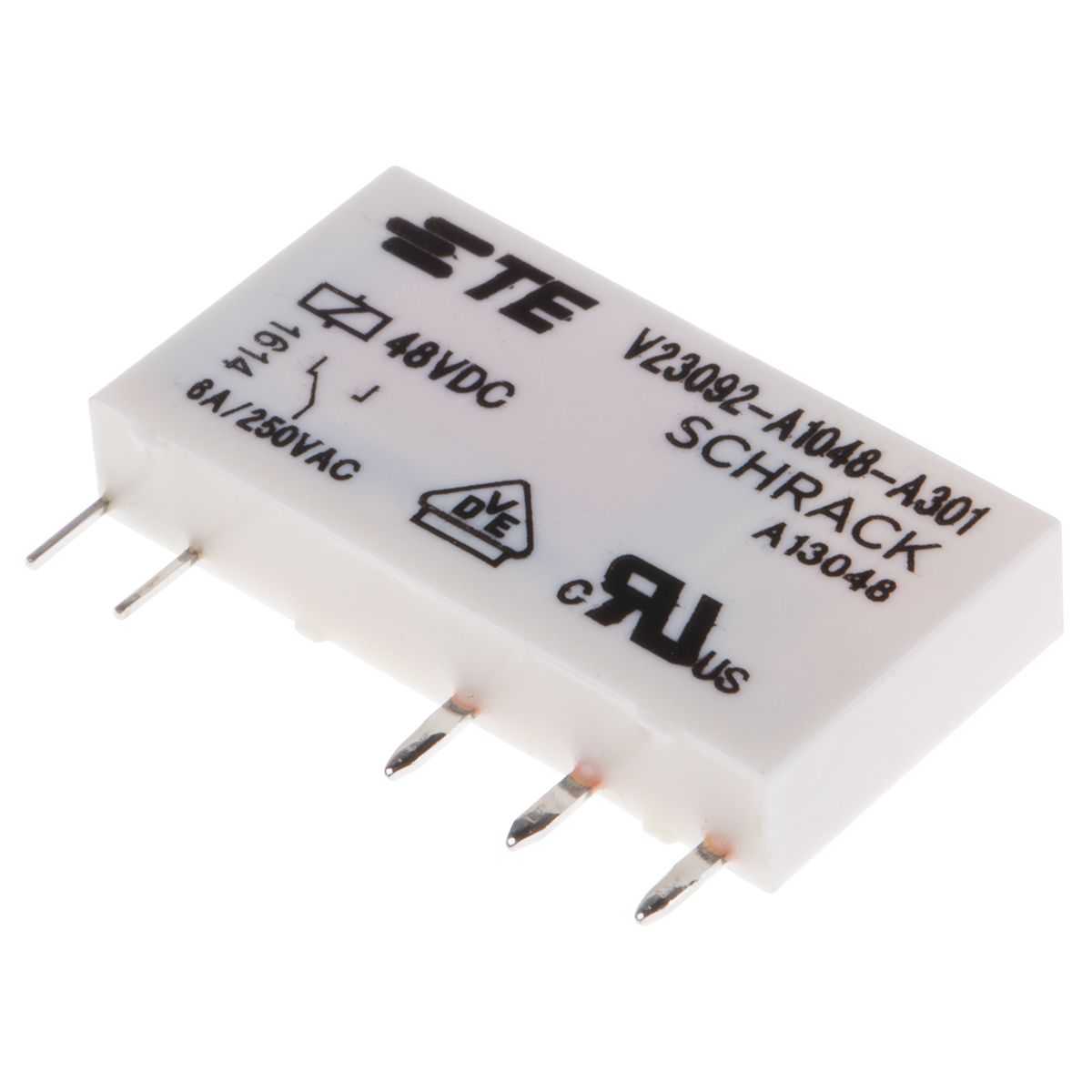

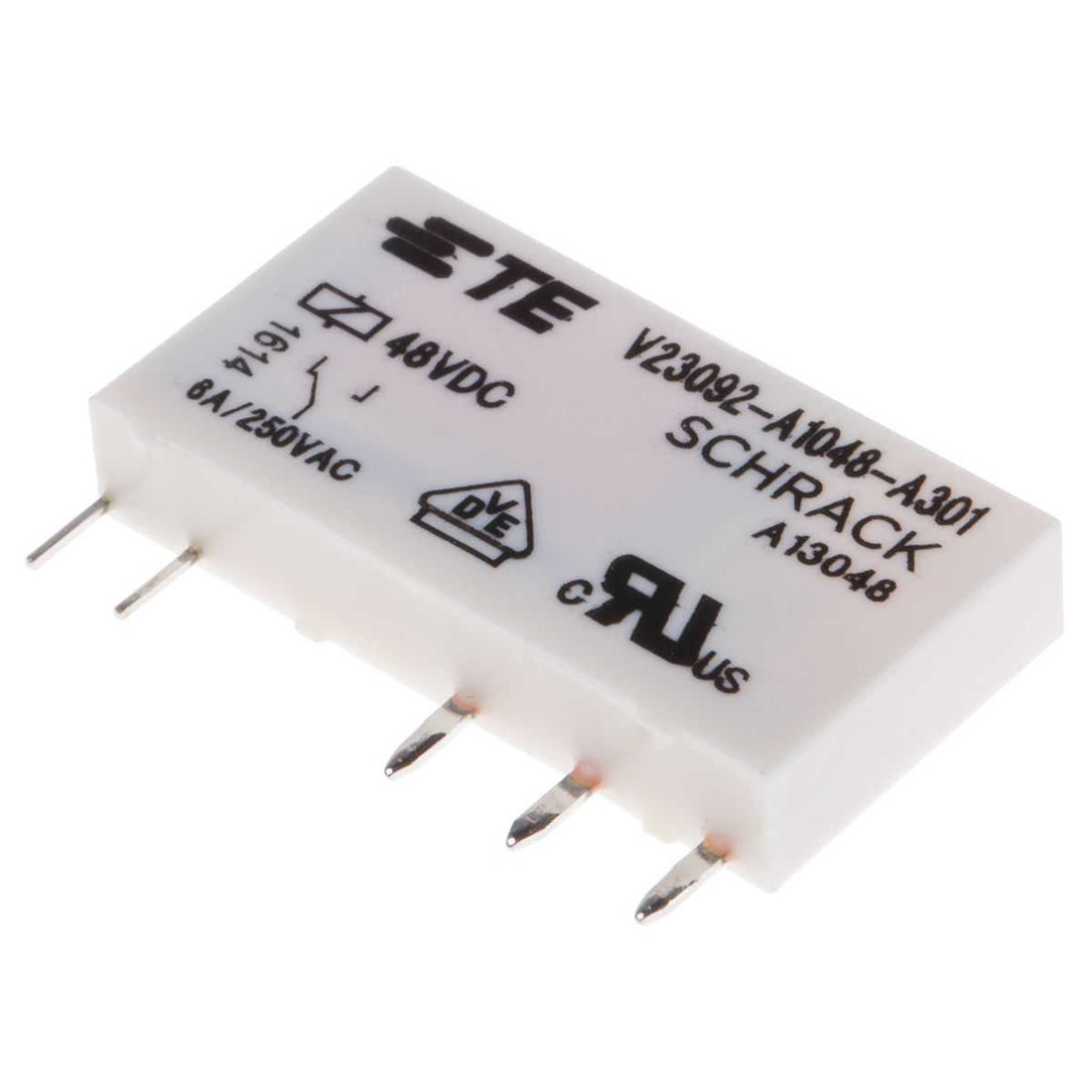

V23092A1048A301 - Te-connectivity SPDT Power Relay, 6000 mA (48 VDC)

V23092A1048A301 - Te-connectivity SPDT Power Relay, 6000 mA (48 VDC)

SKUV23092A1048A301BrandTe-connectivity
AED 45.00
AED 45.00
Sale Sold out
Shipping calculated at checkout.

The V23092A1048A301 is a precision-engineered power relay from Te-connectivity, part of the SNR series. Featuring a SPDT contact configuration rated at 6000 mA switching current, operating on a 48 VDC coil. Its Silver Alloy contacts minimize resistance and arcing, with PCB-Mount installation and Through-Hole terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Te-connectivity
  • Coil Power: 217 mW
  • Coil Resistance: 10600 Ω
  • Coil Voltage: 48 VDC
  • Contact Configuration: SPDT
  • Contact Material: Silver Alloy
  • Depth: 5 mm
  • Height: 15 mm
  • Isolation Coil To Contact: 4 kVrms
  • Latching: No
  • Length: 28 mm
  • Maximum Operating Temperature: 85 °C
  • Maximum Switching Power AC: 1.5 kVA
  • Maximum Switching Voltage AC: 400 VAC
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: PCB-Mount
  • Number of Poles: 1
  • Series: SNR
  • Switching Current: 6000 mA
  • Terminal Type: Through-Hole
