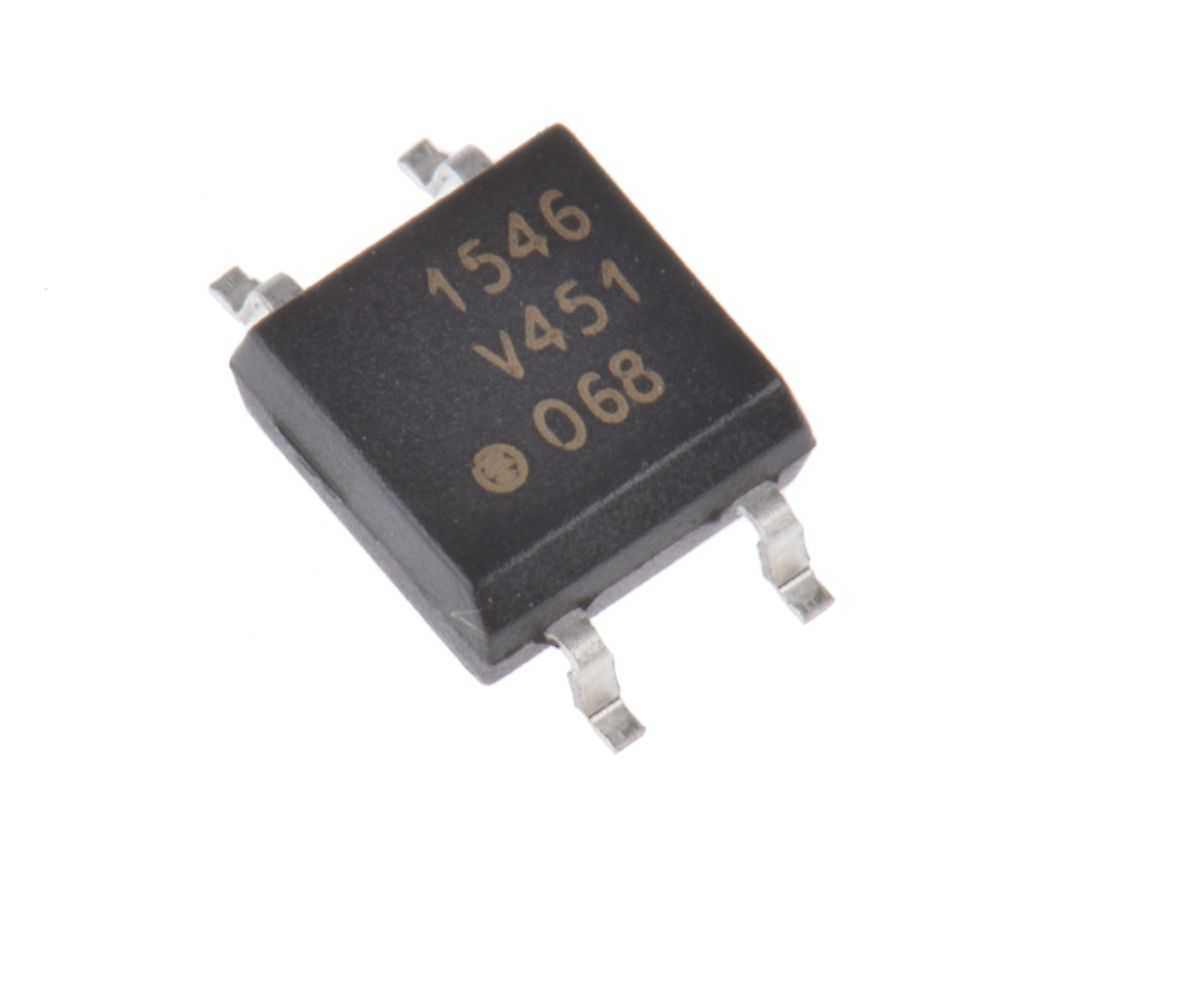

LH1546AEFTR - Vishay Solid-State Relay, 120 mA 350 VAC/DC (Surface-Mount)

LH1546AEFTR - Vishay Solid-State Relay, 120 mA 350 VAC/DC (Surface-Mount)

SKULH1546AEFTRBrandVishay
AED 3.79
AED 3.79
Sale Sold out
Shipping calculated at checkout.

The LH1546AEFTR is a dependable solid state relay from Vishay, part of the 120 mA series. Rated for a maximum load of 120 mA at 350 VAC/DC with DC switching, controlled by 1 V to 1.5 V input. This Surface-Mount relay uses MOSFET output, providing millions of silent, maintenance-free switching cycles for heaters, motors, and process control loads.

View full details
ParameterValue
Brand
Vishay
Maximum Load Current
120 mA
Mounting Type
Surface-Mount
Maximum Load Voltage
350 VAC/DC
Maximum Control Voltage
1.5 V
Minimum Control Voltage
1 V
Switching Type
DC
Control Voltage Range
1–1.5 V
Contact Configuration
SPST
Terminal Type
Solder Tab
Output Device
MOSFET
ParameterValue
Package Style
SOP-4
Maximum Turn On Time
3 ms
Dimensions
4.67 x 4.83 x 2.33 mm
Minimum Operating Temperature
-40 °C
Height
2.3 mm
Maximum Operating Temperature
85 °C
Off State Leakage Current
1nA
Length
4.7 mm
Operating Temperature Range
-40–85 °C
Depth
4.8 mm
