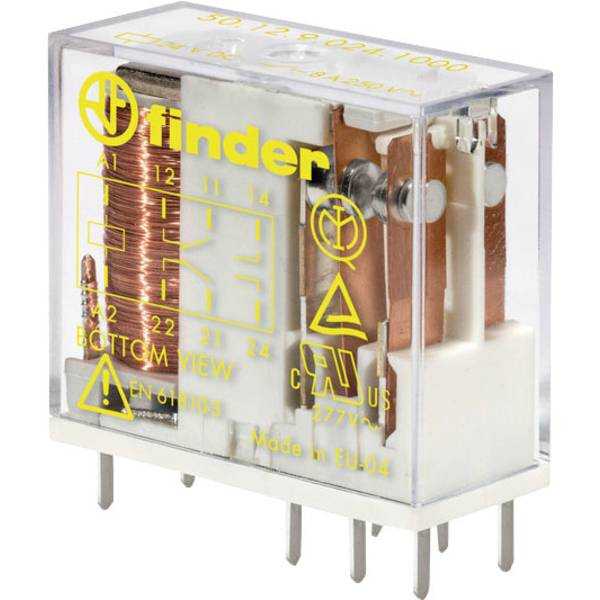

Finder Force Guided Relays 50.12.9.125.1000

Finder Force Guided Relays 50.12.9.125.1000

AED 68.08

AED 68.08

Sale Sold out

Shipping calculated at checkout.

Finder, Relay guided contacts Finder 50, 125V dc, 2 poles, DPDT, 8A, Printed circuit board mounting

Quantity

View full details

Specifications

Brand: Finder
Coil Voltage: 125V dc
Mounting Type: PCB Mount
Contact Configuration: DPDT
Number of Poles: 2
Coil Resistance: 22.3?
Switching Current: 8A
Coil Power: 700mW
Maximum Switching Voltage AC: 400V
Maximum Switching Voltage (AC): 400V
Terminal Type: Through Hole
Standards Met: EN61810-3 type B

Contact Material: Silver Alloy
Series: 50
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +70°C
Isolation Coil To Contact: 6kV
Depth: 12.4mm
Life: 100000 (Electrical) Cycles, 10000000 (Mechanical)Cycles
Maximum Switching Power AC: 2 kVA
Height: 25mm
Length: 29mm
Country of Origin: Italy
