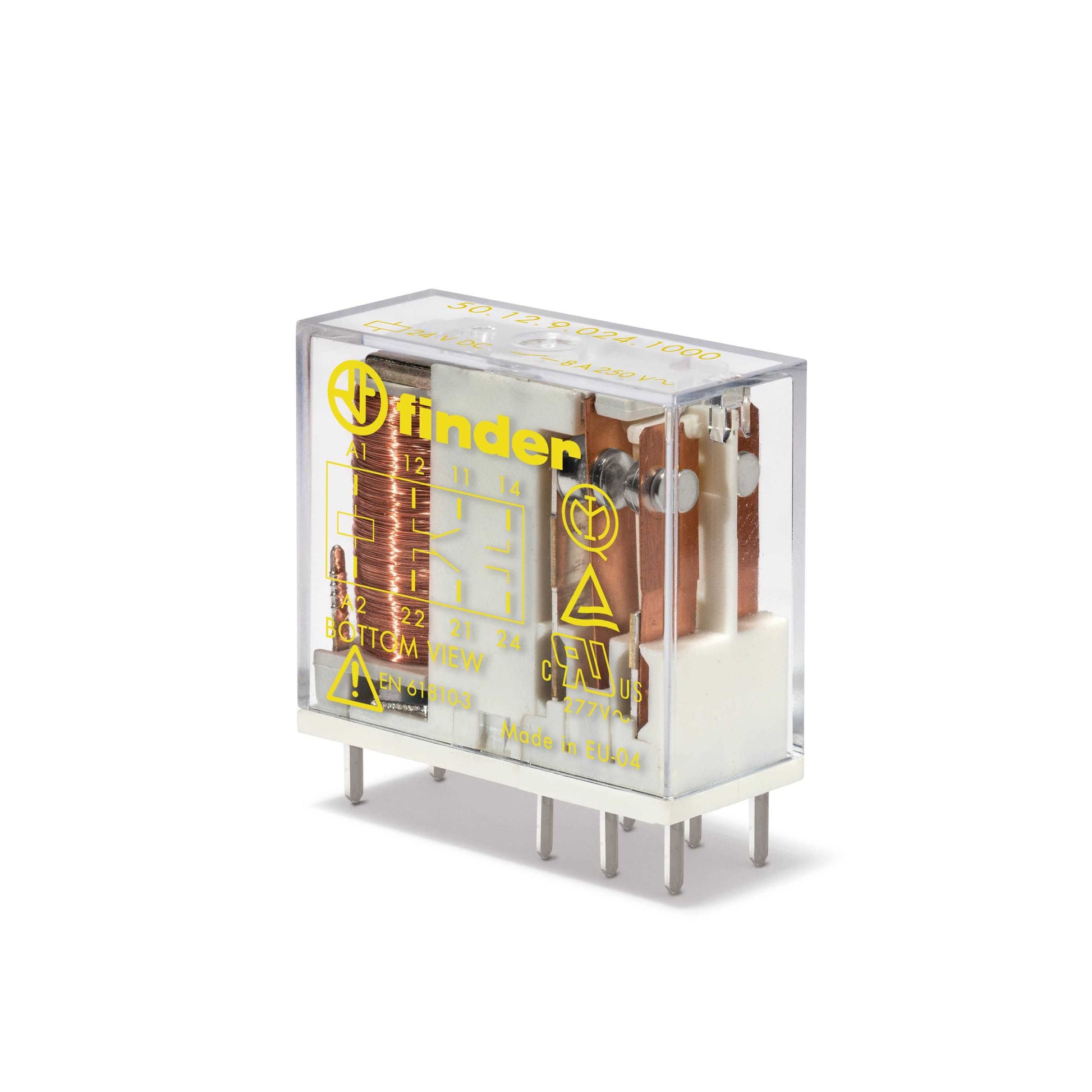

Finder Force Guided Relays 50.12.9.024.1000

Finder Force Guided Relays 50.12.9.024.1000

SKU50.12.9.024.1000BrandFinder
AED 31.28
AED 31.28
Sale Sold out
Shipping calculated at checkout.

Finder, 50 Series Safety Relay Printed Circuit Board 5 mm pitch, None, 24 V, Fluxproof RT II, 2 contacts, 8 A, AgNi, DC, Changeover

View full details
ParameterValue
Brand
Finder
Coil Voltage
24V dc
Mounting Type
PCB Mount
Contact Configuration
DPDT
Number of Poles
2
Coil Resistance
820?
Switching Current
8A
Coil Power
700mW
Maximum Switching Voltage AC
400V
Maximum Switching Voltage (AC)
400V
Terminal Type
Through Hole
Approvals
cRUus
ParameterValue
Standards Met
EN61810-3 type B
Series
50
Depth
12.4mm
Height
25mm
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
6kV
Life
100000 (Electrical) Cycles, 10000000 (Mechanical)Cycles
Maximum Switching Power AC
2 kVA
Length
29mm
Contact Material
Silver Alloy
Country of Origin
Spain
