• Finder - 50.12.9.006.1000
1 1

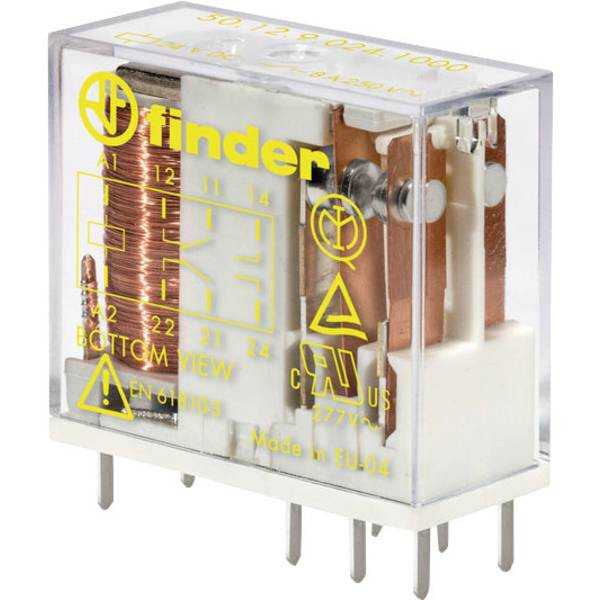

Finder Force Guided Relays 50.12.9.006.1000

Finder Force Guided Relays 50.12.9.006.1000

SKU50.12.9.006.1000BrandFinder
AED 66.47
AED 66.47
Sale Sold out
Shipping calculated at checkout.

Finder, Relay guided contacts Finder 50, 6V dc, 2 poles, DPDT, 15A, Printed circuit board mounting

View full details
ParameterValue
Brand
Finder
Coil Voltage
6V dc
Mounting Type
PCB Mount
Contact Configuration
DPDT
Number of Poles
2
Coil Resistance
50?
Switching Current
15A
Coil Power
700mW
Maximum Switching Voltage AC
400V
Terminal Type
Through Hole
Standards Met
EN61810-3 type B
ParameterValue
Series
50
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
6kV
Depth
12.4mm
Life
100000Cycles
Maximum Switching Power AC
2 kVA
Height
25mm
Length
29mm
Contact Material
Silver Alloy
Country of Origin
Italy
