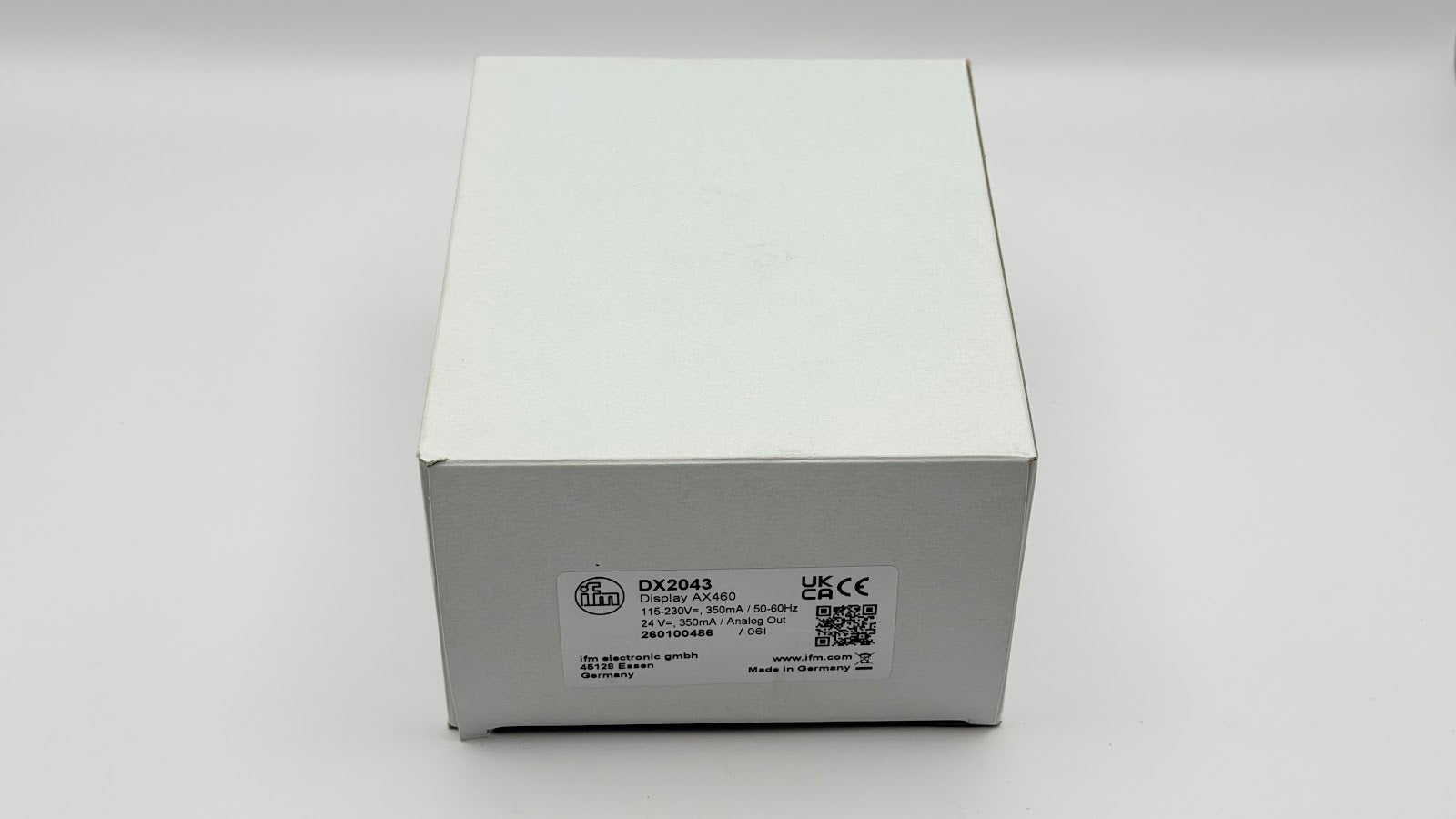

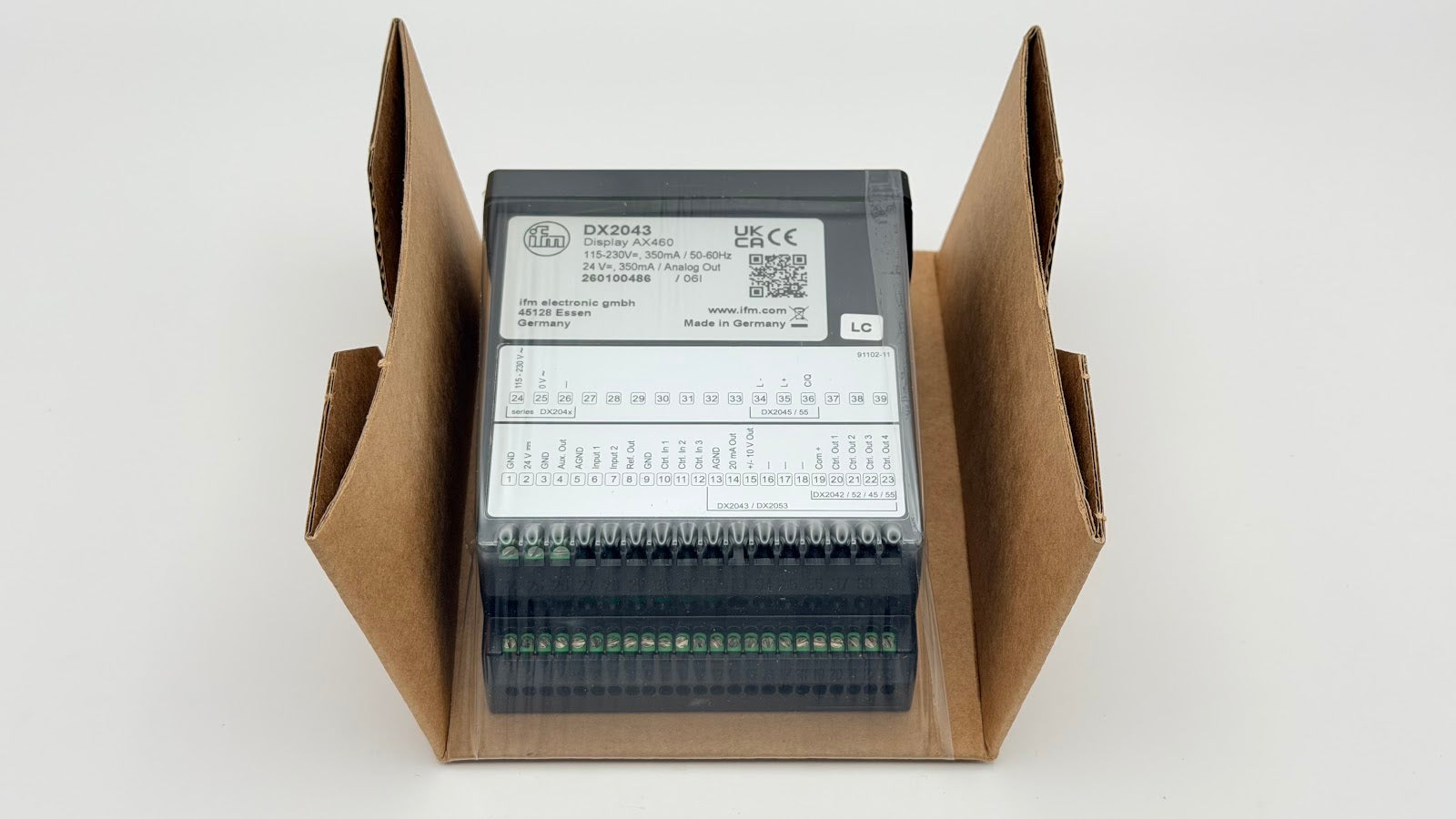

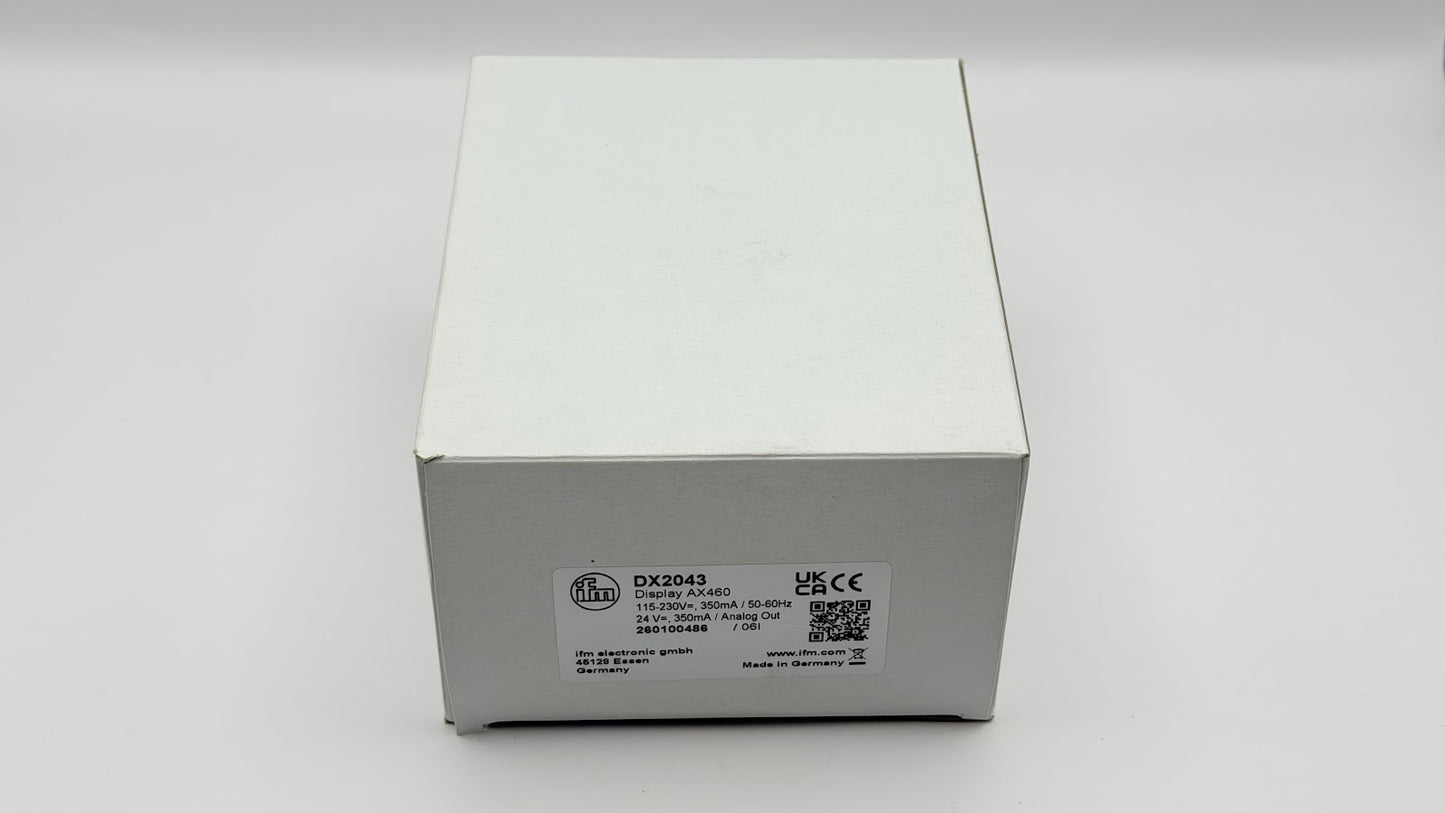

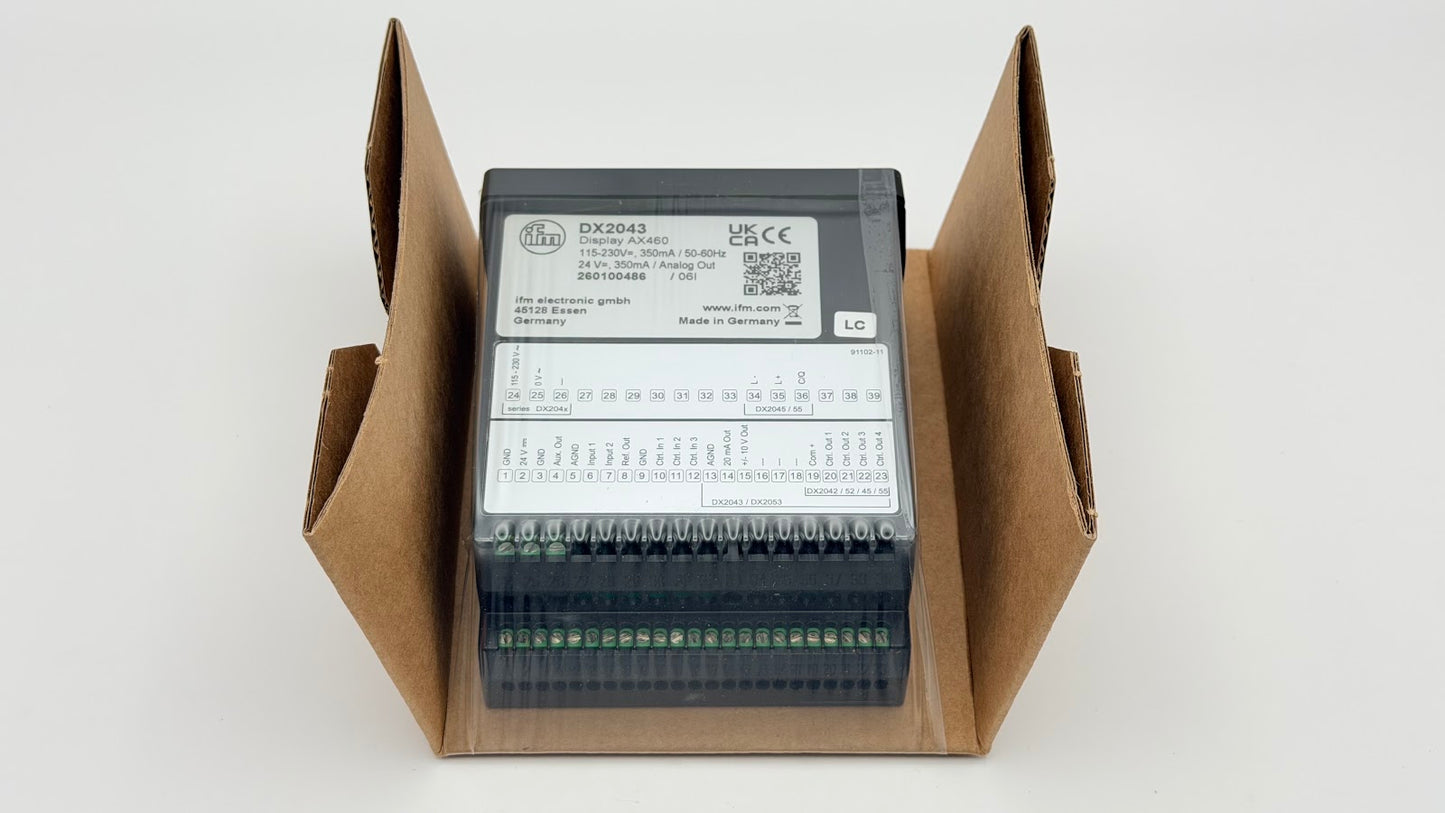

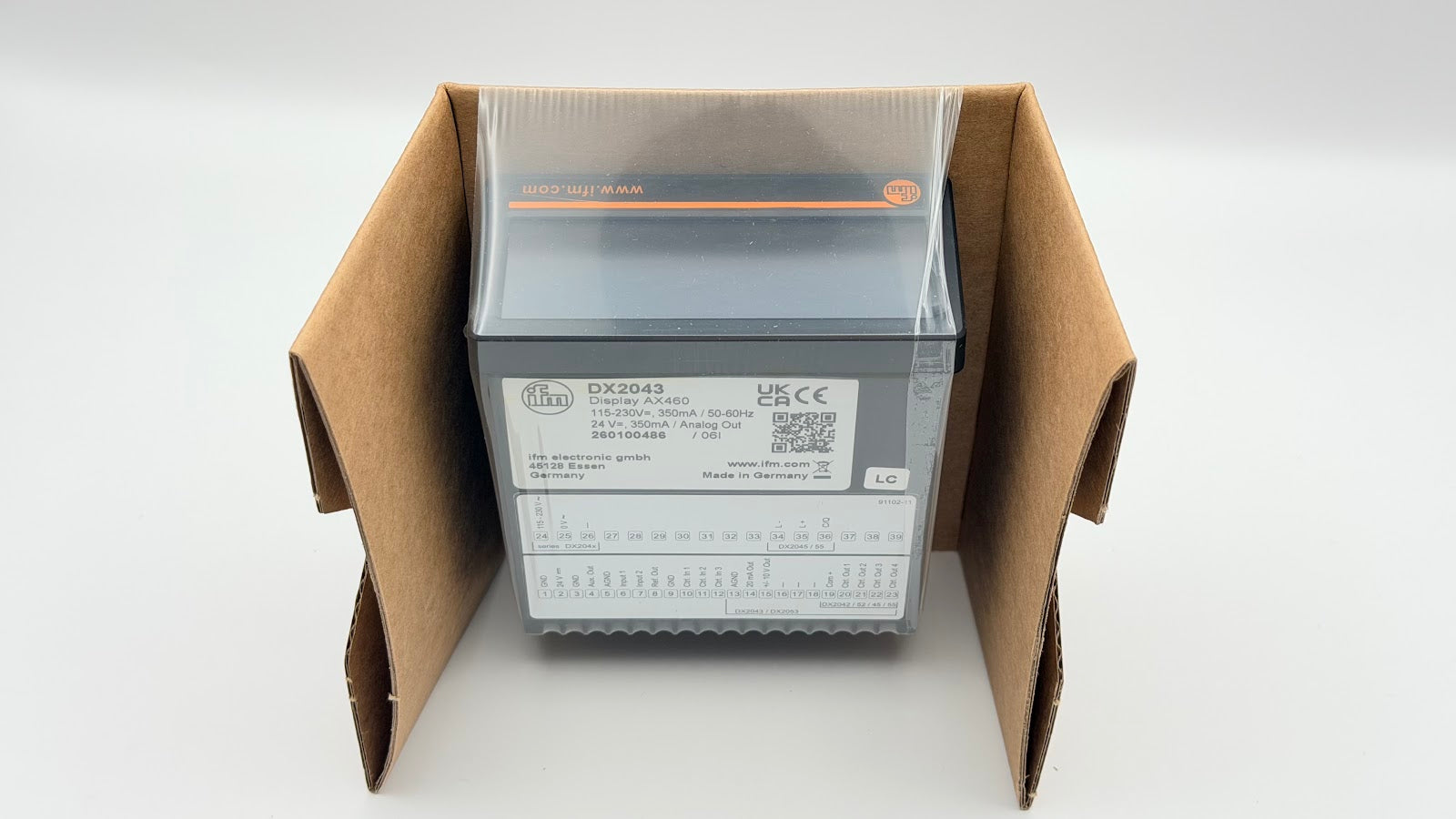

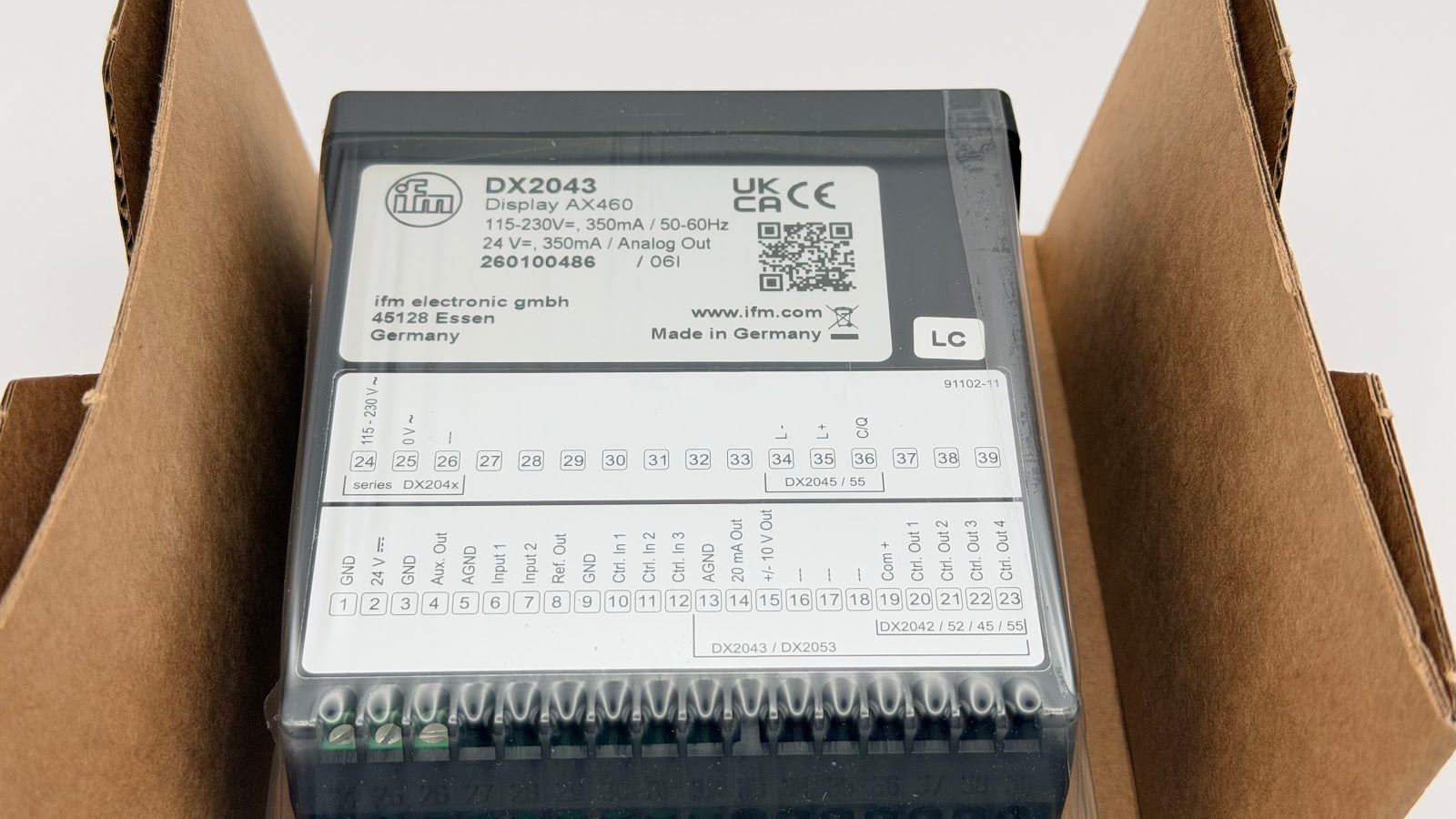

IFM DX2043 Multifunction Display — Panel-mount multifunction display with 2 analogue inputs, 4 digital + 1 analogue output and a full-graphic touch screen. Multifunction display, 2 analogue inputs (-10...10 V/0...20 mA), 4 digital + 1 analogue output, panel mount, IP 65.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: DX2043
Also known as: IFM DX2043 process display / digital display / panel meter.
DX2043 Applications
The DX2043 is a multifunction display for monitoring analogue standard signals such as those from pressure, temperature or flow sensors. It accepts two analogue inputs as voltage (-10...10 V) or current (0...20 mA) with 16-bit resolution and drives four digital outputs and one analogue output. Values appear on a full-graphic LCD touch screen. The device installs in a 91 x 43 mm panel cut-out, is powered by 115...230 V AC or 18...30 V DC and is rated to IP 65.
DX2043 Specifications
Brand
IFM
Product Type
Multifunction display for monitoring analogue standard signals
IFM Type Code
DISPLAY/AX460/ANALOG/AC/DC
Function
Displaying and monitoring analogue signals (pressure, temperature, flow sensors)
