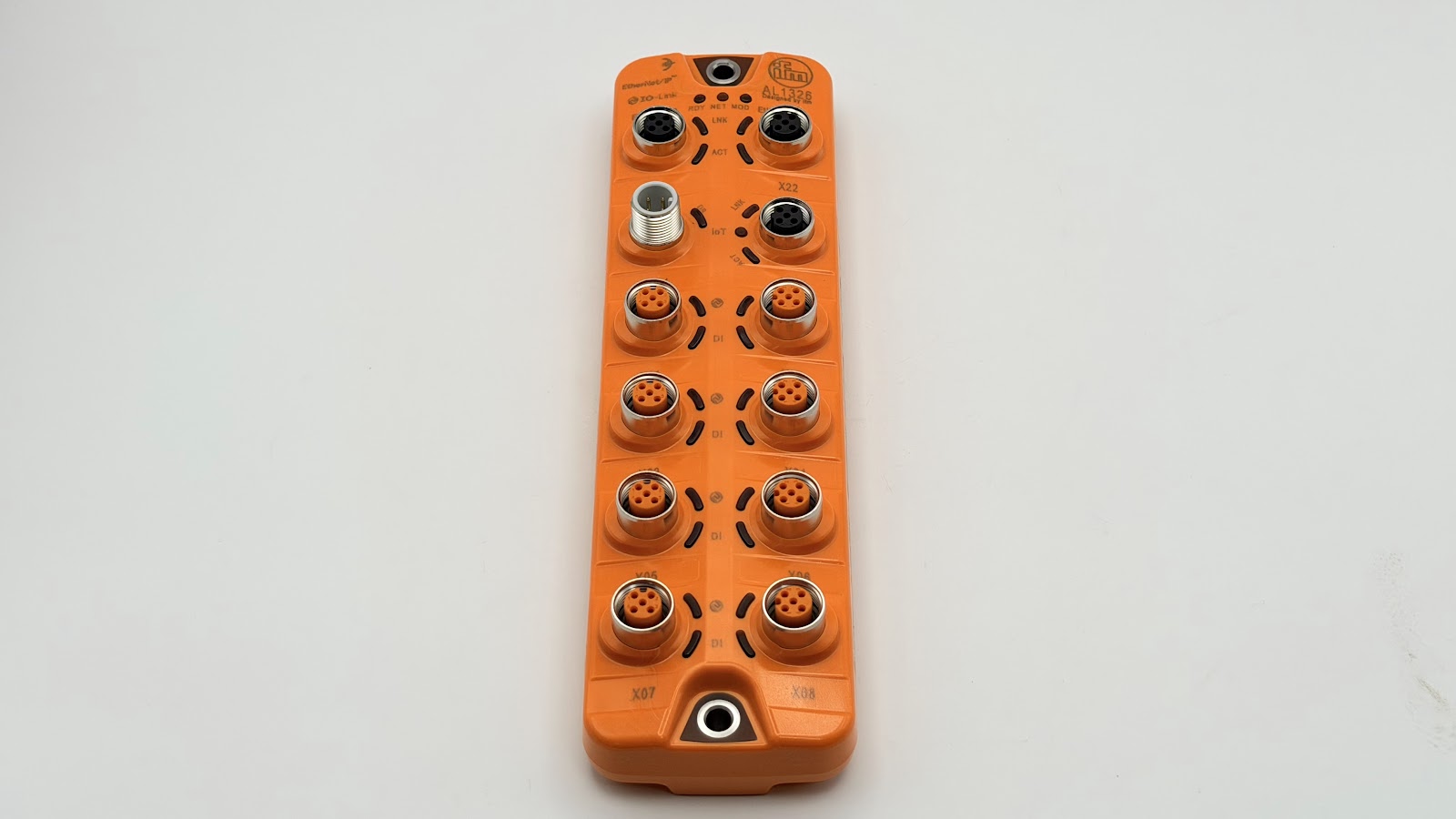

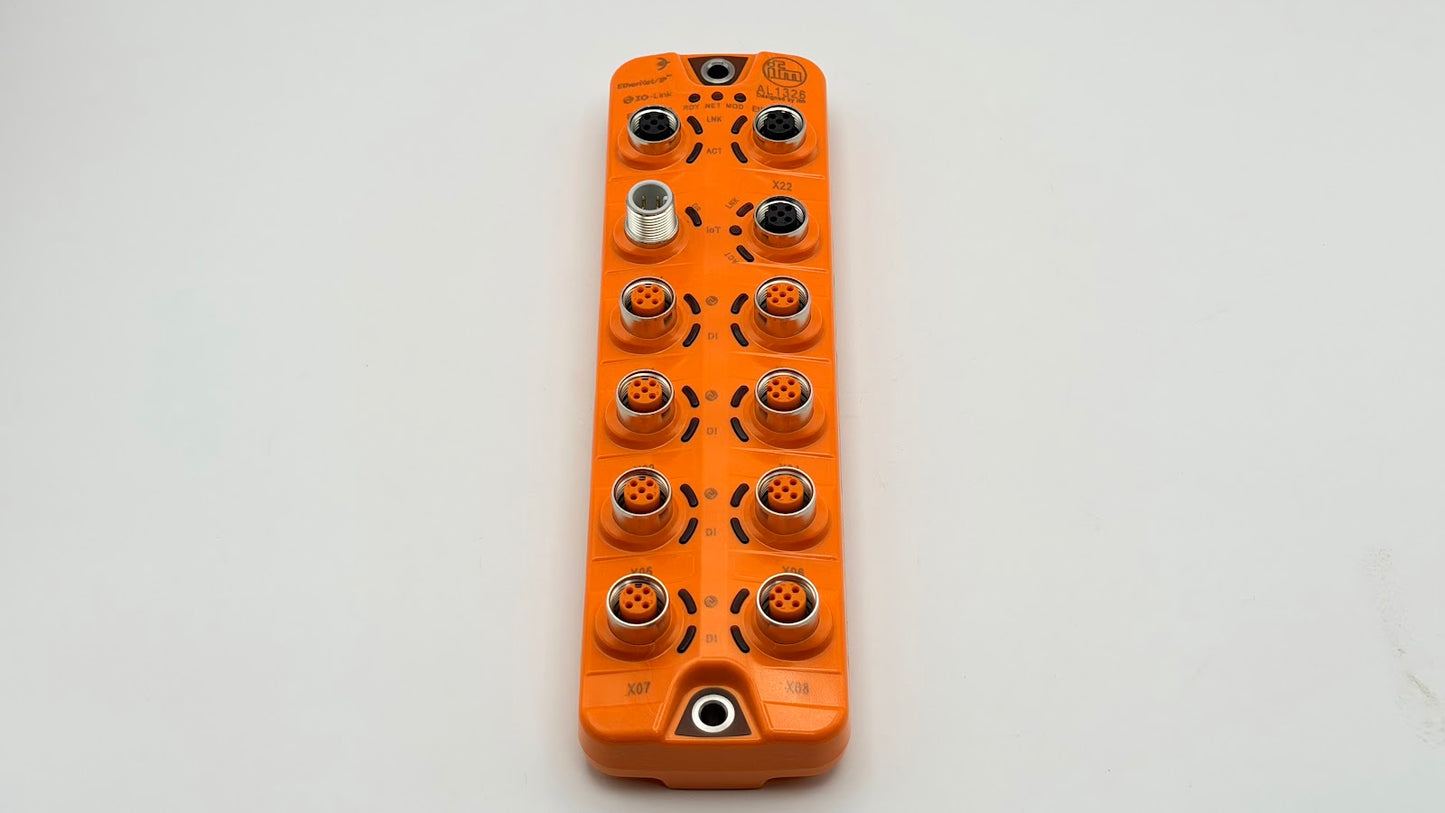

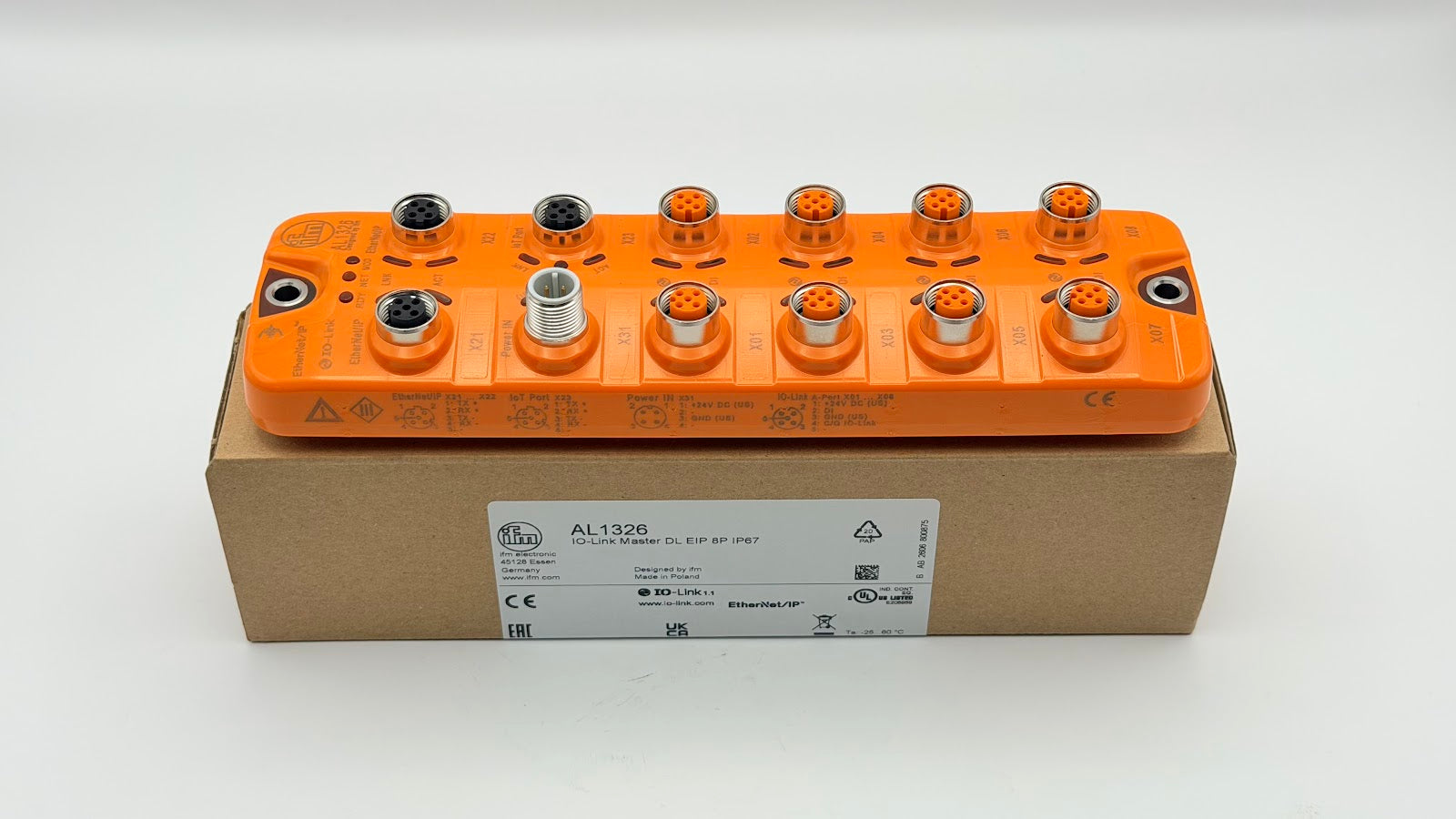

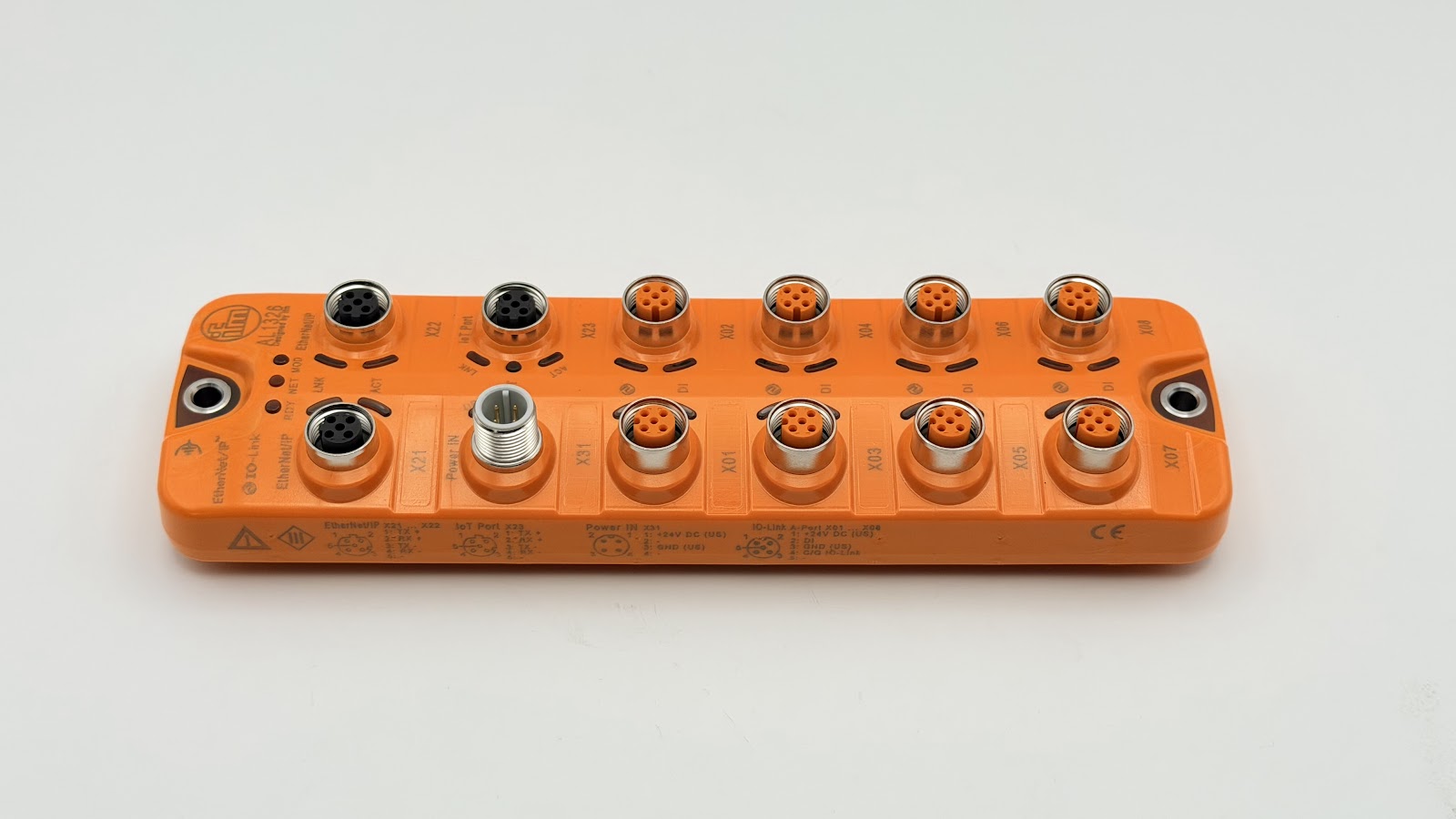

IFM AL1326 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A), EtherNet/IP + IoT

IFM AL1326 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A), EtherNet/IP + IoT

SKUAL1326BrandIFM
AED 1,785.00
AED 1,785.00
Sale Sold out
Shipping calculated at checkout.

Only 3 left

IFM AL1326 IO-Link Master EtherNet/IP — 8-port DataLine (DL) IoT master with 2 EtherNet/IP M12 ports and MQTT/JSON, versus 3 ports on AL1322. 8 IO-Link ports (Class A), EtherNet/IP + IoT (MQTT/JSON), 2x M12 Ethernet, 20...30 V DC, IP 65/66/67, -25...60 °C.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: AL1326

Also known as: IFM AL1326 io-link master / ethernet/ip gateway / fieldbus master.

AL1326 Applications

The AL1326 is a DataLine IO-Link master for field applications combining an EtherNet/IP fieldbus interface with an IoT core (MQTT/JSON) for parallel process and IoT data. It offers eight Class A IO-Link ports on M12 A-coded connectors plus digital I/O, and two D-coded M12 ports for the EtherNet/IP network at 10/100 Mbit/s. Rated to IP 65, IP 66 and IP 67 with an ambient range of -25...60 °C, it suits harsh, decentralised field installations.

AL1326 Specifications

Brand IFM Product Type IO-Link master with EtherNet/IP interface
IFM Type Code IO-Link Master DL EIP 8P IP67 IO-Link ports 8 (Class A)
Fieldbus interface EtherNet/IP; IoT (MQTT/JSON) IO-Link revision 1.1
Operating voltage 20...30 V DC (SELV/PELV) Current consumption 300...3900 mA
Digital inputs 16 (8 x 2) Digital outputs 8 (8 x 1)
Output current per port max. 300 mA Connectors 8x M12 A-coded (IO-Link); 2x M12 D-coded (EtherNet/IP); 1x M12 A-coded (supply)
Ethernet transmission rate 10/100 Mbit/s Protection rating IP 65, IP 66, IP 67
Ambient temperature -25...60 °C Dimensions 208 x 59.3 x 38.4 mm
Weight 413.85 g

AL1326 Datasheet & Manual

Download Datasheet & ManualIFM AL1326 · PDF · Official IFM document

AL1326 – Frequently Asked Questions (FAQ)

How many IO-Link ports does the IFM AL1326 have?

The IFM AL1326 has 8 Class A IO-Link ports on M12 A-coded connectors.

How many EtherNet/IP ports does the IFM AL1326 have?

The IFM AL1326 has 2 D-coded M12 EtherNet/IP ports.

Does the IFM AL1326 support IoT?

Yes, the IFM AL1326 is a DataLine master with an IoT core supporting MQTT/JSON alongside EtherNet/IP.

What is the operating voltage of the IFM AL1326?

The IFM AL1326 runs on 20...30 V DC (SELV/PELV).

What is the IP rating of the IFM AL1326?

The IFM AL1326 is rated IP 65, IP 66 and IP 67.

What is the operating temperature range of the IFM AL1326?

The IFM AL1326 operates from -25...60 °C.

How much digital I/O does the IFM AL1326 provide?

Up to 16 digital inputs and 8 digital outputs (max. 300 mA per output).

What are the dimensions of the IFM AL1326?

The IFM AL1326 measures 208 x 59.3 x 38.4 mm and weighs 413.85 g.
