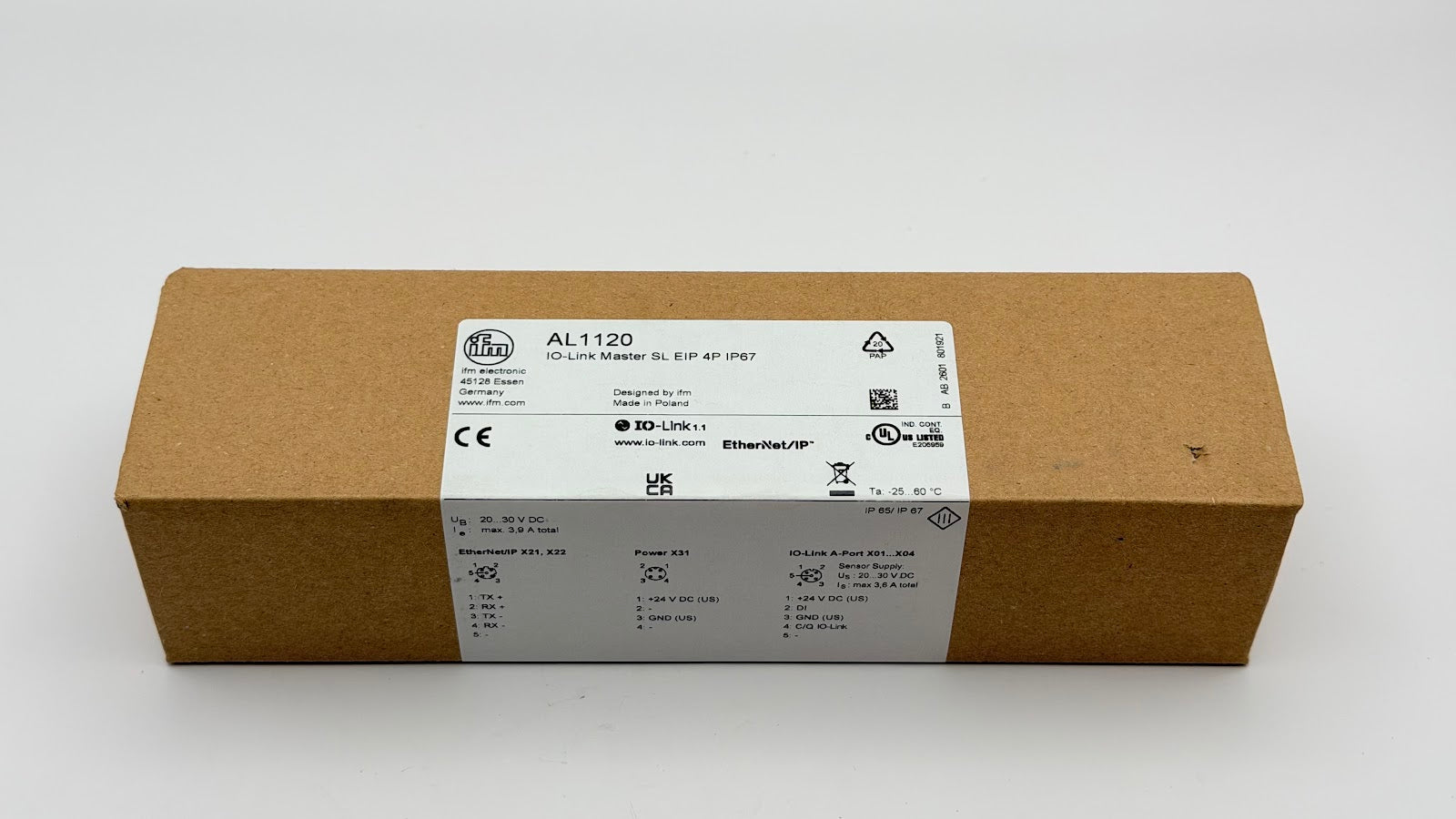

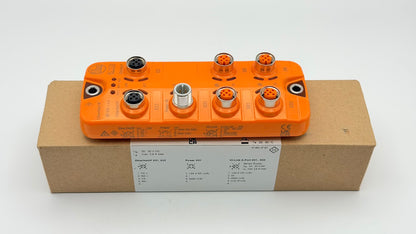

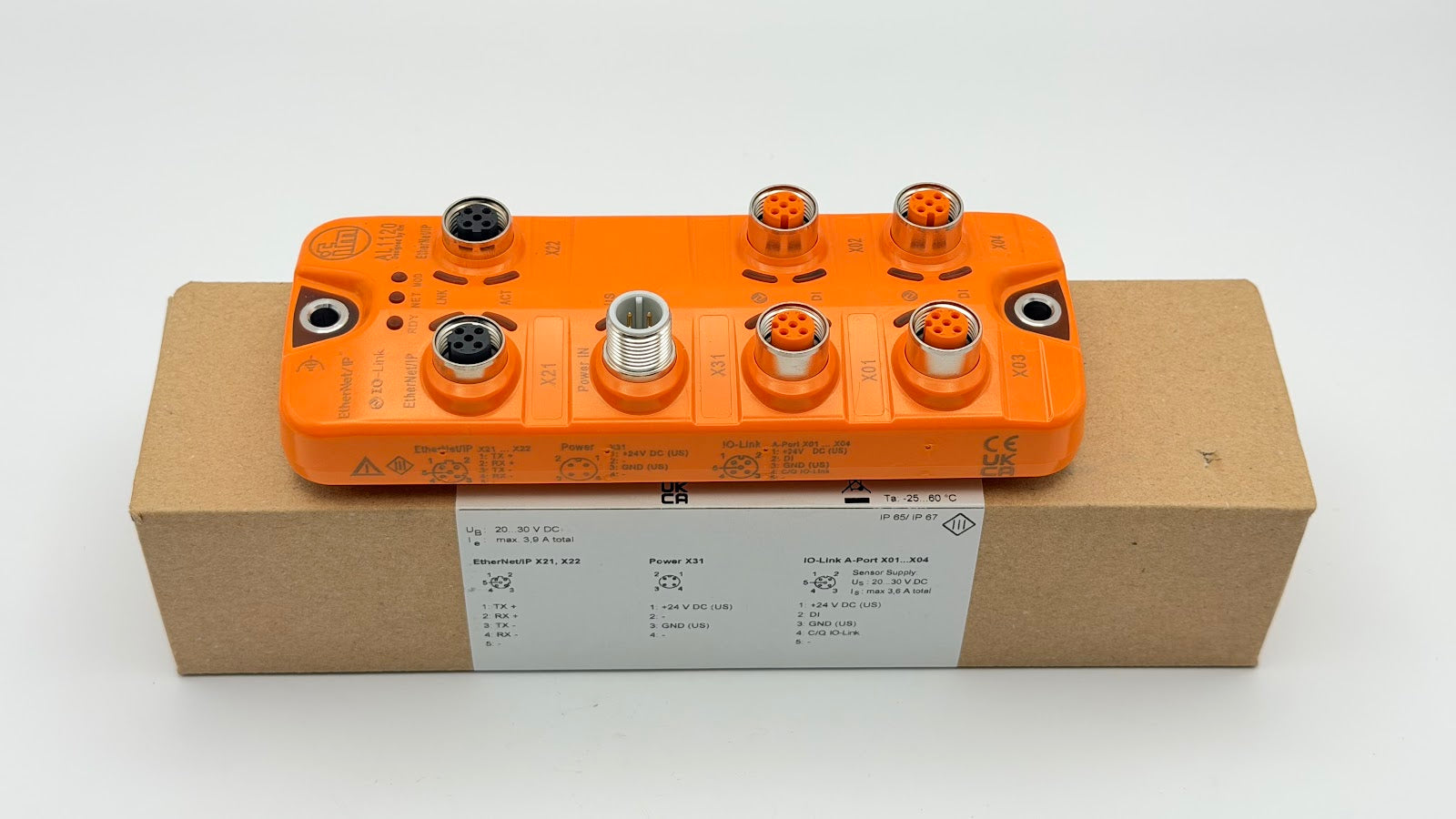

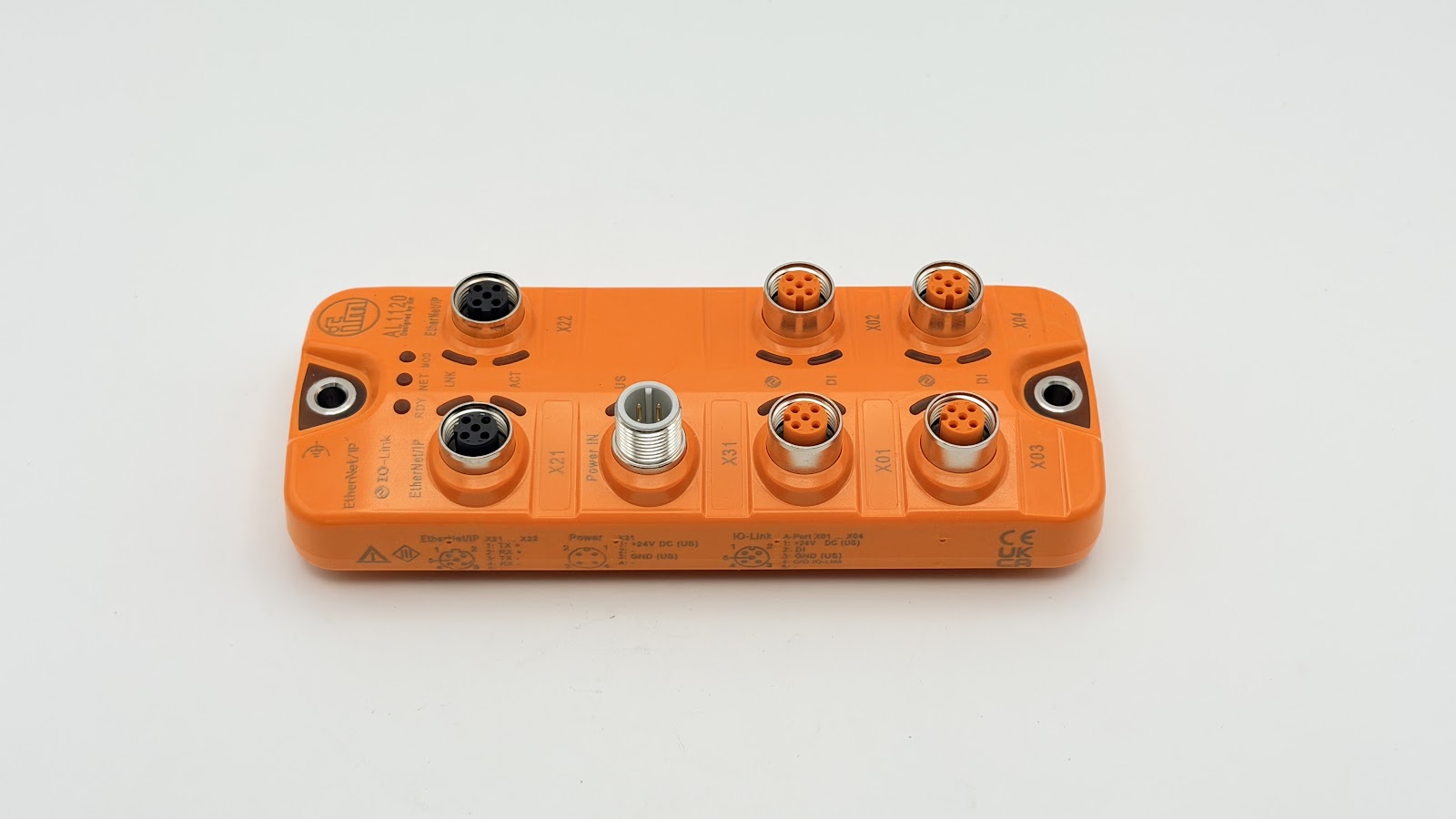

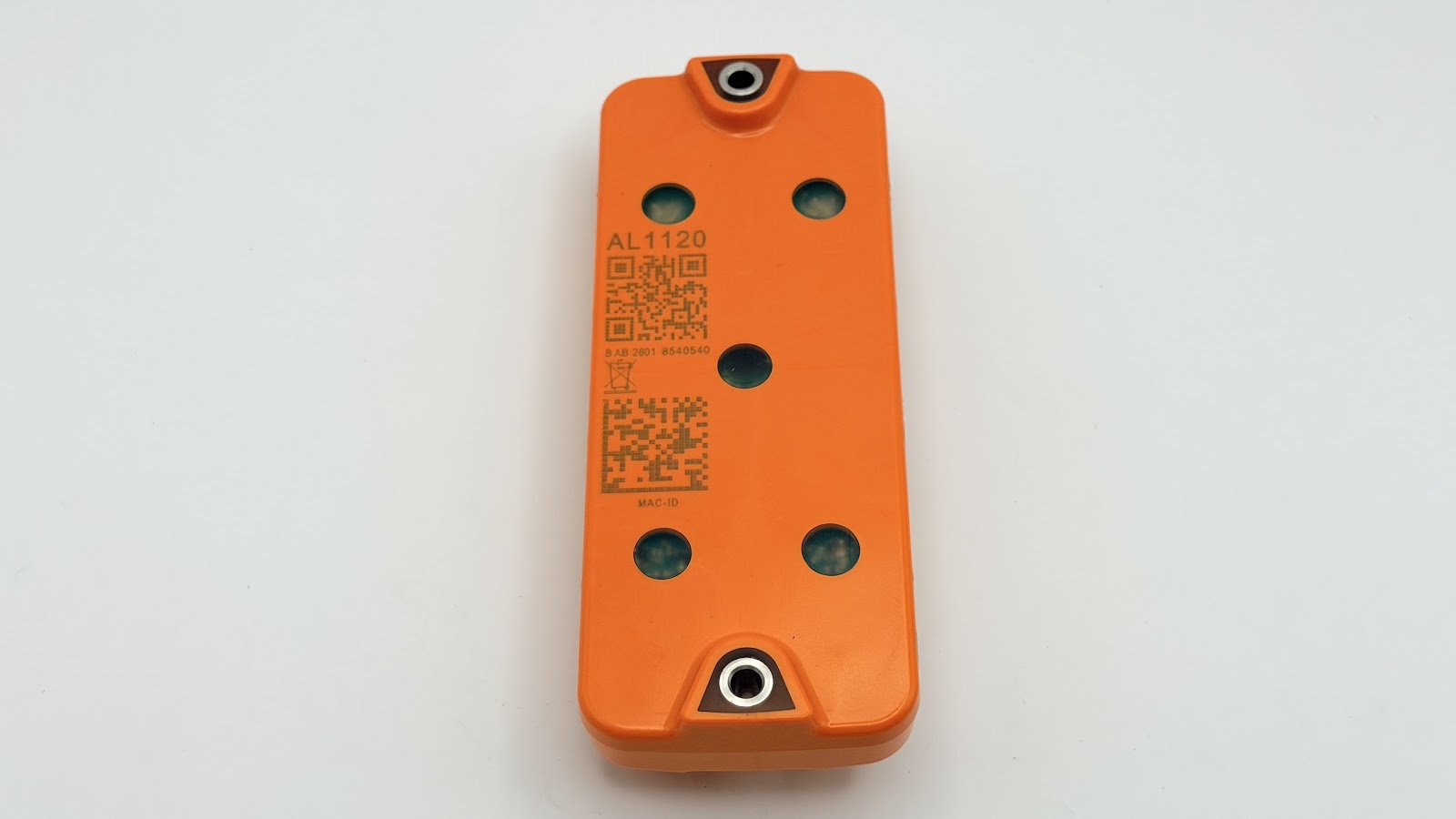

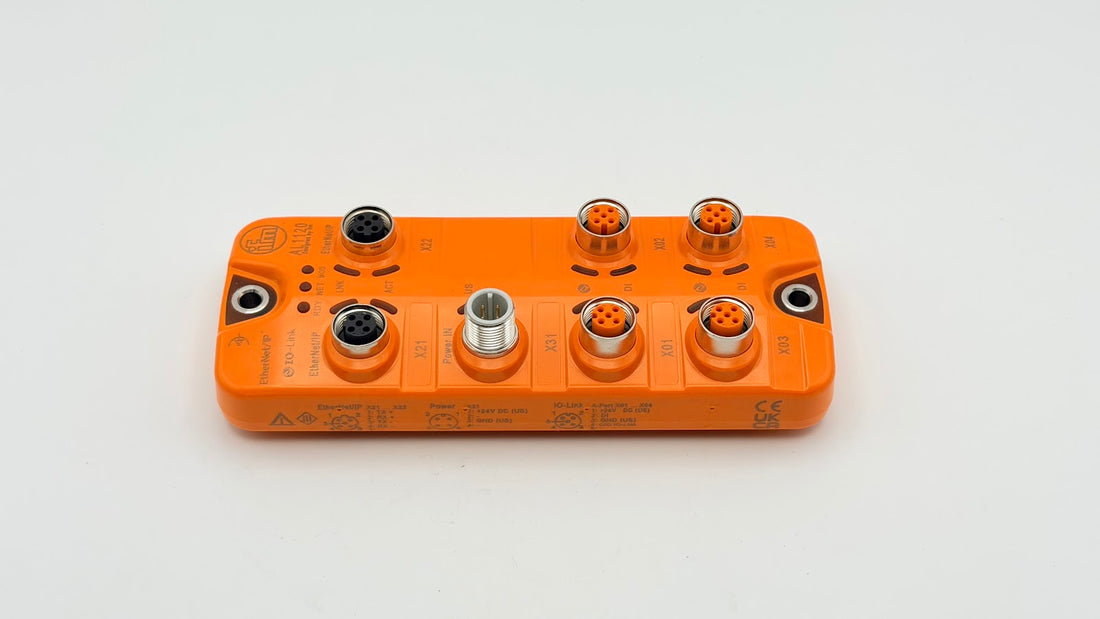

IFM AL1120 - IO-Link Master EtherNet/IP, 4 IO-Link ports (Class A), EtherNet/IP

IFM AL1120 - IO-Link Master EtherNet/IP, 4 IO-Link ports (Class A), EtherNet/IP

SKUAL1120BrandIFM
AED 1,349.00
AED 1,349.00
Sale Sold out
Shipping calculated at checkout.

Only 1 left

IFM AL1120 IO-Link Master EtherNet/IP — 4-port StandardLine (SL) master, all Class A ports, fewer ports than the 8-port AL1122. 4 IO-Link ports (Class A), EtherNet/IP, M12, 20...30 V DC, IP 65/66/67, -25...60 °C.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: AL1120

Also known as: IFM AL1120 io-link master / ethernet/ip gateway / fieldbus master.

AL1120 Applications

The AL1120 is an IO-Link master for field applications with an EtherNet/IP fieldbus interface and loop-through function. It provides four Class A IO-Link ports on M12 A-coded connectors for connecting IO-Link sensors and actuators, plus digital I/O. Two D-coded M12 ports handle the EtherNet/IP network at 10/100 Mbit/s. Rated to IP 65, IP 66 and IP 67 with an ambient range of -25...60 °C, it suits harsh, decentralised installations directly in the field.

AL1120 Specifications

Brand IFM Product Type IO-Link master with EtherNet/IP interface
IFM Type Code IO-Link Master SL EIP 4P IP67 IO-Link ports 4 (Class A)
Fieldbus interface EtherNet/IP Operating voltage 20...30 V DC (SELV/PELV)
Current consumption 300...3900 mA Digital inputs 8 (4 x 2)
Digital outputs 4 (4 x 1) Output current per port max. 300 mA
Connectors 4x M12 A-coded (IO-Link); 2x M12 D-coded (Ethernet); 1x M12 A-coded (supply) Ethernet transmission rate 10/100 Mbit/s
Protection rating IP 65, IP 66, IP 67 Ambient temperature -25...60 °C
Dimensions 152 x 59.3 x 38.4 mm Weight 294.5 g
Housing material PA orange; brass nickel-plated socket

AL1120 Datasheet & Manual

Download Datasheet & ManualIFM AL1120 · PDF · Official IFM document

AL1120 – Frequently Asked Questions (FAQ)

How many IO-Link ports does the IFM AL1120 have?

The IFM AL1120 has 4 Class A IO-Link ports on M12 A-coded connectors.

What fieldbus does the IFM AL1120 use?

The IFM AL1120 uses an EtherNet/IP interface at 10/100 Mbit/s.

What is the operating voltage of the IFM AL1120?

The IFM AL1120 runs on 20...30 V DC (SELV/PELV).

What connectors does the IFM AL1120 use?

M12: 4x A-coded for IO-Link, 2x D-coded for Ethernet and 1x A-coded for supply.

What is the IP rating of the IFM AL1120?

The IFM AL1120 is rated IP 65, IP 66 and IP 67.

What is the operating temperature range of the IFM AL1120?

The IFM AL1120 operates from -25...60 °C.

How much digital I/O does the IFM AL1120 provide?

Up to 8 digital inputs and 4 digital outputs (max. 300 mA per output).

What are the dimensions of the IFM AL1120?

The IFM AL1120 measures 152 x 59.3 x 38.4 mm and weighs 294.5 g.

View full details

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

More in Industrial Communication

View all 14

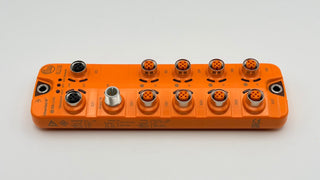

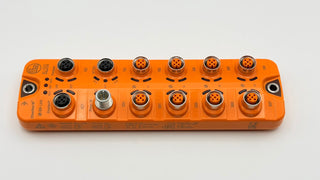

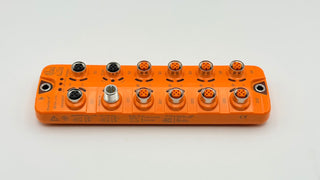

IFM AL1326 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A), EtherNet/IP + IoT AL1326IFM IFM AL1326 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A),... AED 1,785.00excl. vat IFM AL1322 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A), EtherNet/IP + IoT AL1322IFM IFM AL1322 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A),... AED 1,812.00excl. vat IFM AL1122 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A), EtherNet/IP AL1122IFM IFM AL1122 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A),... AED 1,667.00excl. vat IFM ZZ1060 - IO-Link Master USB Interface, IO-Link USB, Parameter Setting ZZ1060IFM IFM ZZ1060 - IO-Link Master USB Interface, IO-Link USB, Parameter S... AED 1,404.73excl. vat IFM DP2200 - Analog Signal Evaluation Display, 4...20 mA In, IO-Link DP2200IFM IFM DP2200 - Analog Signal Evaluation Display, 4...20 mA In, IO-Link AED 566.85excl. vat IFM AC2900 - AS-Interface ProcessLine Module, AS-i 8-Port, IP69K AC2900IFM IFM AC2900 - AS-Interface ProcessLine Module, AS-i 8-Port, IP69K AED 964.47excl. vat IFM AC1402 - AS-Interface PROFINET Gateway, 2 AS-i Masters, PROFINET AC1402IFM IFM AC1402 - AS-Interface PROFINET Gateway, 2 AS-i Masters, PROFINET AED 5,912.50excl. vat IFM AC1154 - AS-Interface Addressing Unit, AS-i 3.0, Addressing + Diagnostics AC1154IFM IFM AC1154 - AS-Interface Addressing Unit, AS-i 3.0, Addressing + D... AED 2,349.85excl. vat
