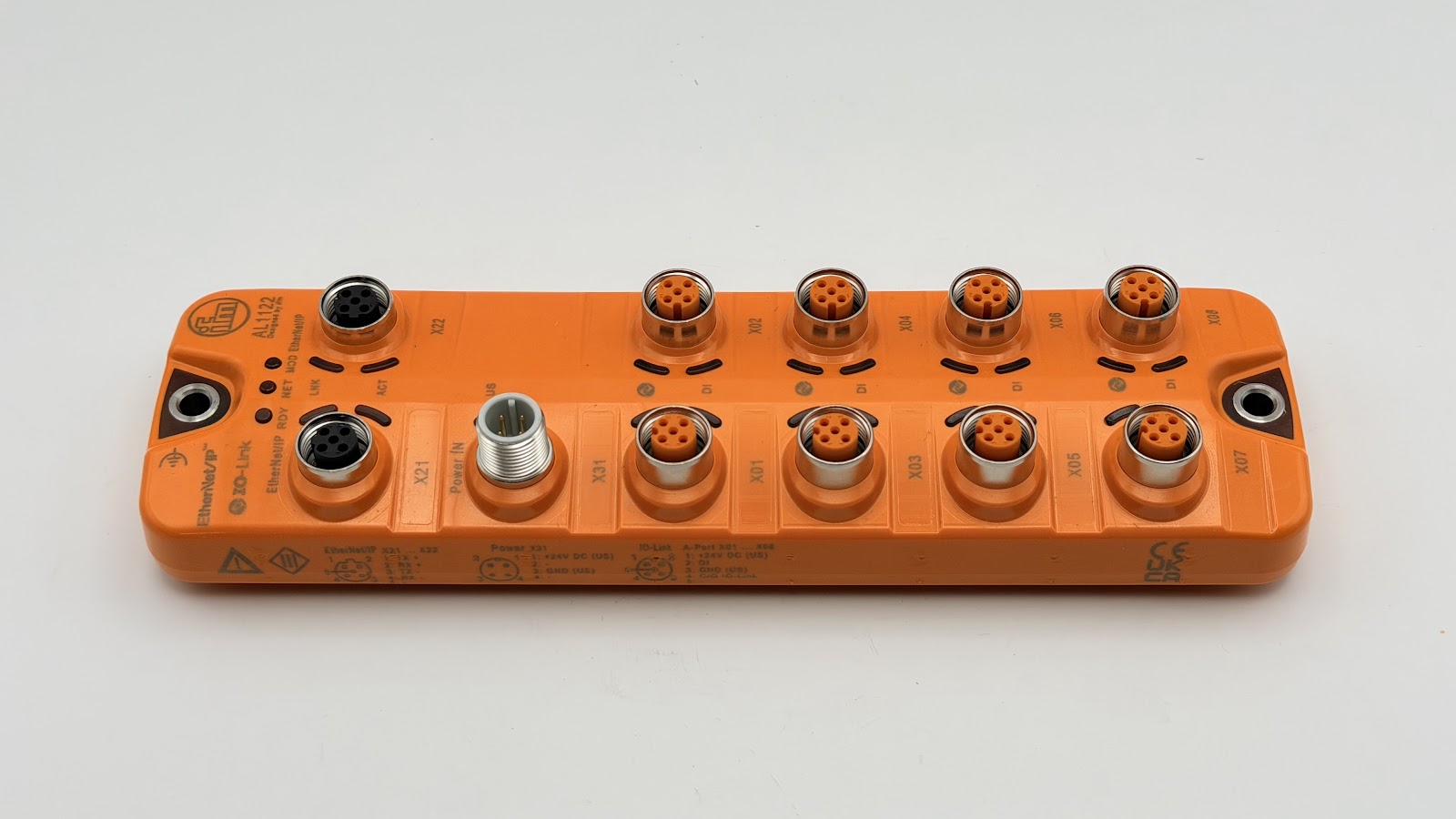

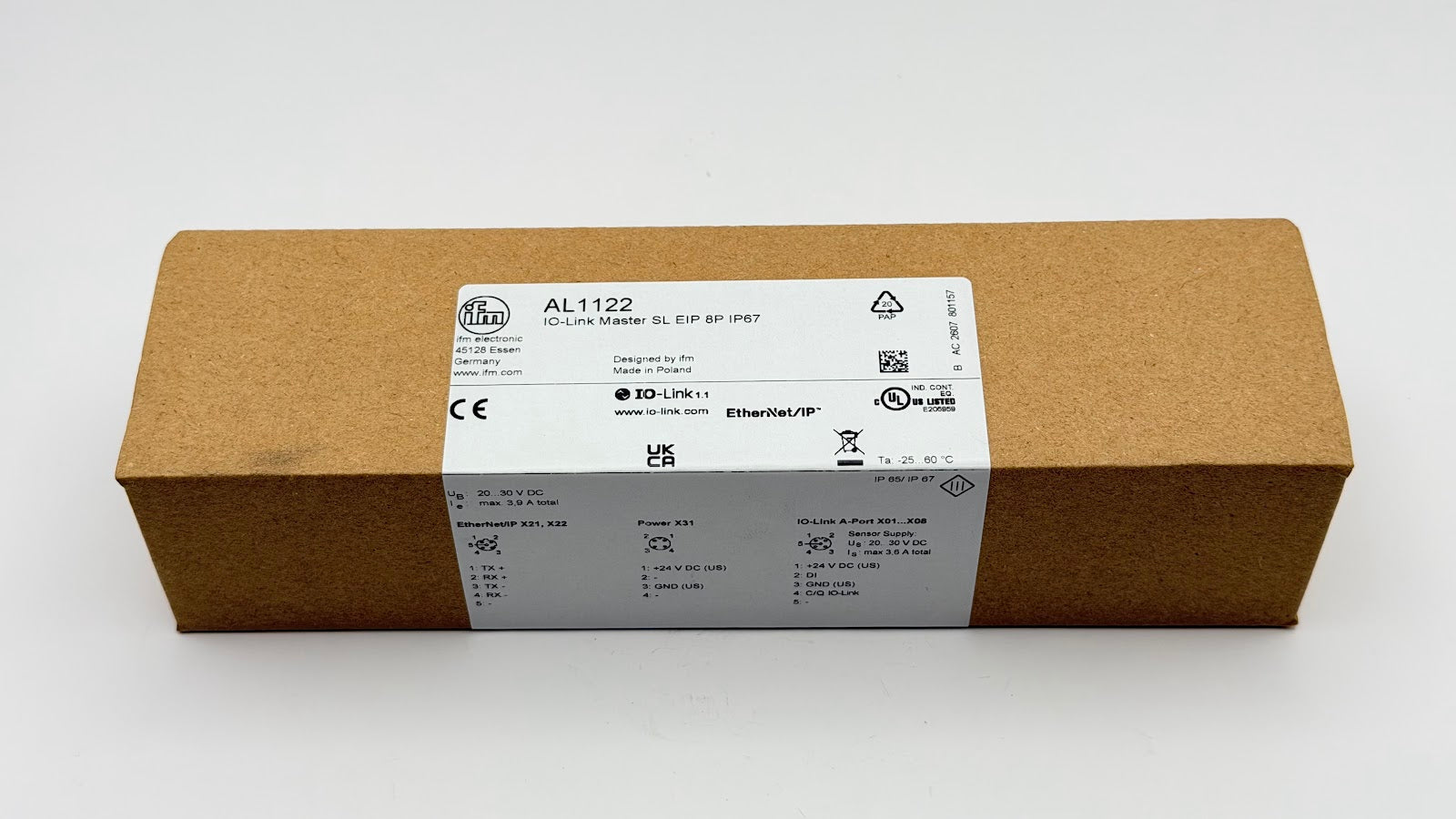

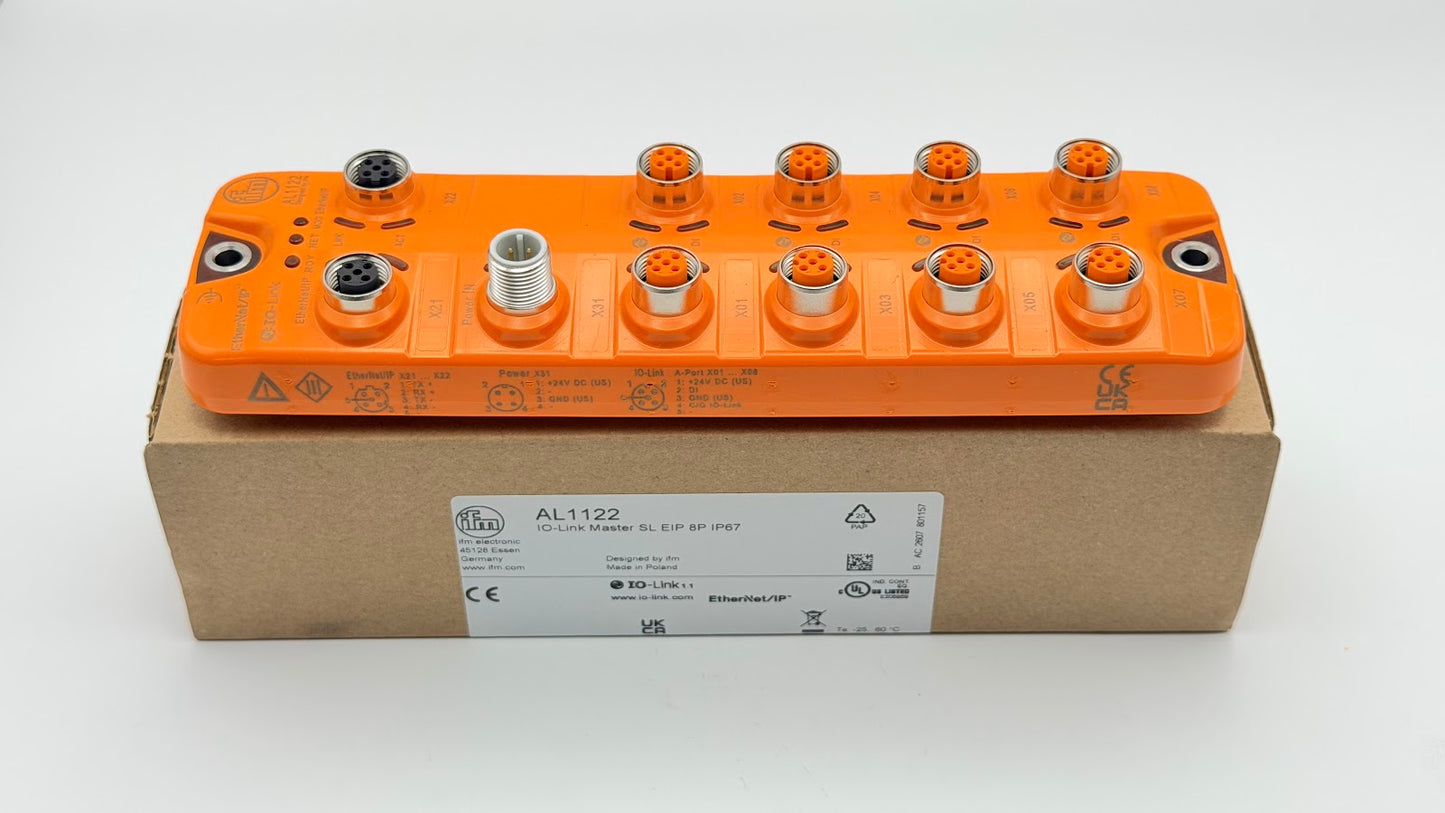

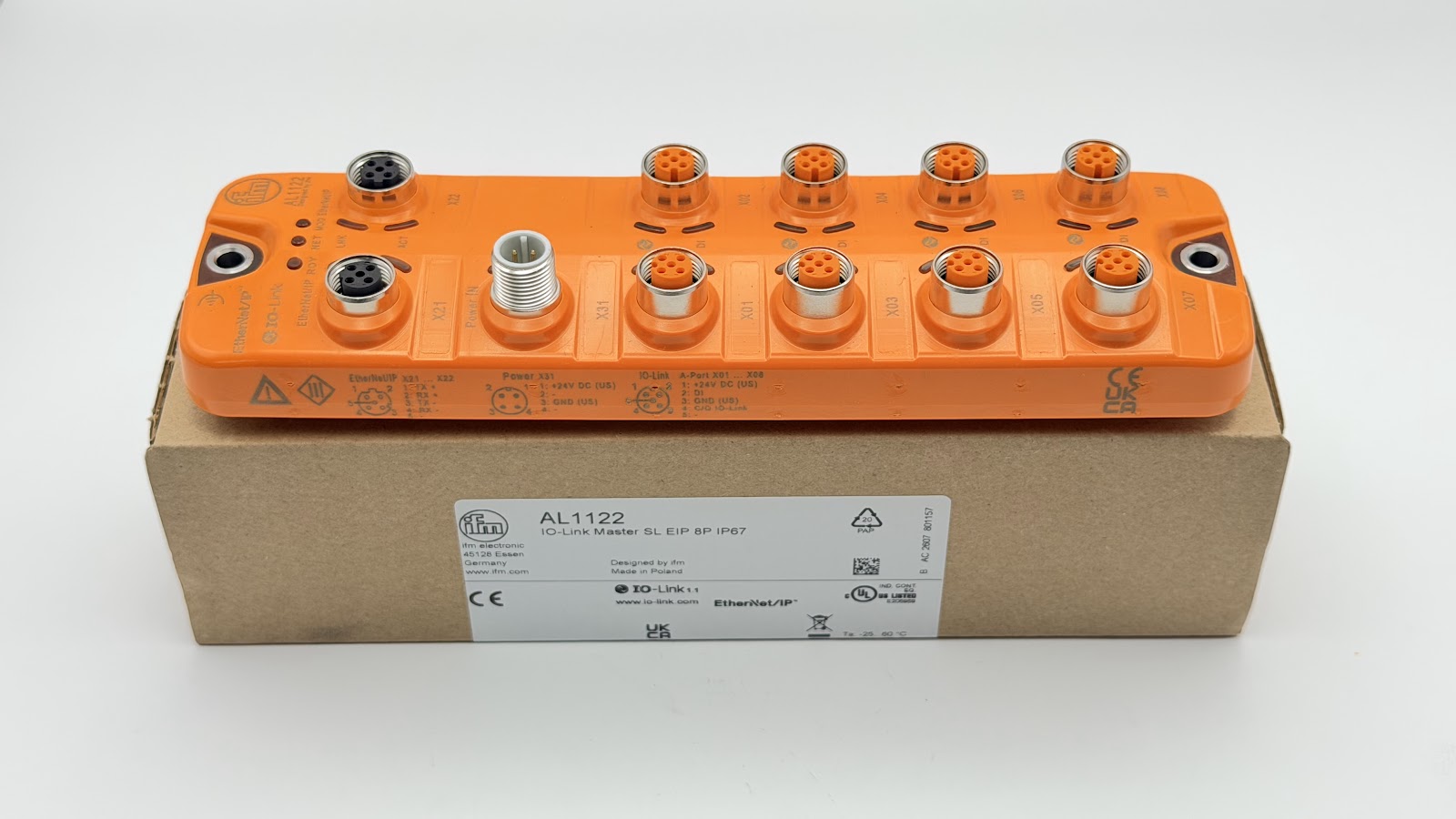

IFM AL1122 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A), EtherNet/IP

IFM AL1122 - IO-Link Master EtherNet/IP, 8 IO-Link ports (Class A), EtherNet/IP

SKUAL1122BrandIFM
AED 1,667.00
AED 1,667.00
Sale Sold out
Shipping calculated at checkout.

Only 5 left

IFM AL1122 IO-Link Master EtherNet/IP — 8-port StandardLine (SL) master, all Class A ports, double the ports of the 4-port AL1120. 8 IO-Link ports (Class A), EtherNet/IP, M12, 20...30 V DC, IP 65/66/67, -25...60 °C.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: AL1122

Also known as: IFM AL1122 io-link master / ethernet/ip gateway / fieldbus master.

AL1122 Applications

The AL1122 is an IO-Link master for field applications with an EtherNet/IP fieldbus interface and loop-through function. It provides eight Class A IO-Link ports on M12 A-coded connectors for connecting IO-Link sensors and actuators, plus digital I/O. Two D-coded M12 ports handle the EtherNet/IP network at 10/100 Mbit/s. Rated to IP 65, IP 66 and IP 67 with an ambient range of -25...60 °C, it suits harsh, decentralised installations directly in the field.

AL1122 Specifications

Brand IFM Product Type IO-Link master with EtherNet/IP interface
IFM Type Code IO-Link Master SL EIP 8P IP67 IO-Link ports 8 (Class A)
Fieldbus interface EtherNet/IP Operating voltage 20...30 V DC (SELV/PELV)
Current consumption 300...3900 mA Digital inputs 16 (8 x 2)
Digital outputs 8 (8 x 1) Output current per port max. 300 mA
Connectors 8x M12 A-coded (IO-Link); 2x M12 D-coded (Ethernet); 1x M12 A-coded (supply) Ethernet transmission rate 10/100 Mbit/s
Protection rating IP 65, IP 66, IP 67 Ambient temperature -25...60 °C
Dimensions 208 x 59.3 x 38.4 mm Weight 396 g
Housing material PA orange; brass nickel-plated socket

AL1122 Datasheet & Manual

Download Datasheet & ManualIFM AL1122 · PDF · Official IFM document

AL1122 – Frequently Asked Questions (FAQ)

How many IO-Link ports does the IFM AL1122 have?

The IFM AL1122 has 8 Class A IO-Link ports on M12 A-coded connectors.

What fieldbus does the IFM AL1122 use?

The IFM AL1122 uses an EtherNet/IP interface at 10/100 Mbit/s.

What is the operating voltage of the IFM AL1122?

The IFM AL1122 runs on 20...30 V DC (SELV/PELV).

What connectors does the IFM AL1122 use?

M12: 8x A-coded for IO-Link, 2x D-coded for Ethernet and 1x A-coded for supply.

What is the IP rating of the IFM AL1122?

The IFM AL1122 is rated IP 65, IP 66 and IP 67.

What is the operating temperature range of the IFM AL1122?

The IFM AL1122 operates from -25...60 °C.

How much digital I/O does the IFM AL1122 provide?

Up to 16 digital inputs and 8 digital outputs (max. 300 mA per output).

What are the dimensions of the IFM AL1122?

The IFM AL1122 measures 208 x 59.3 x 38.4 mm and weighs 396 g.
