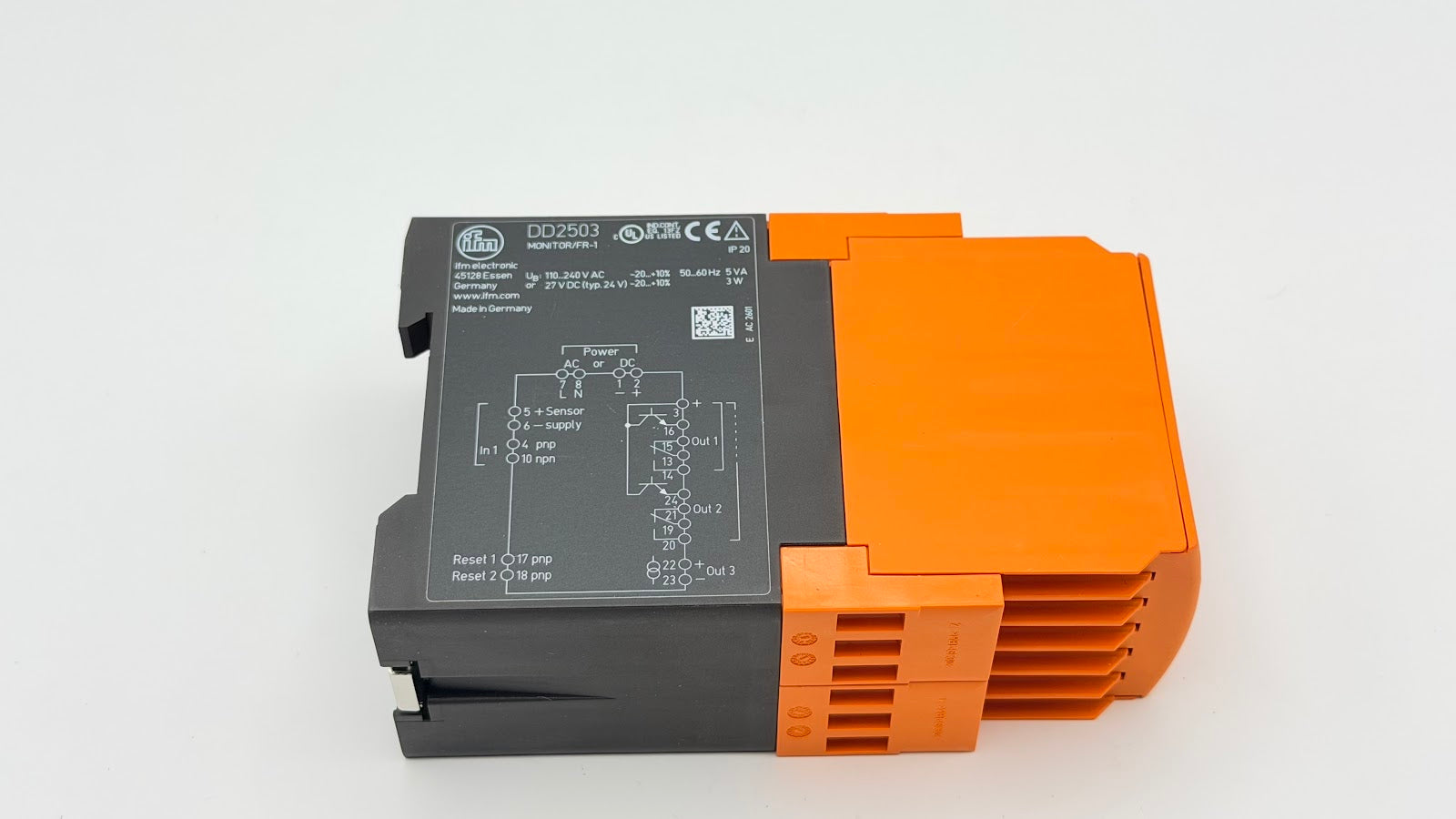

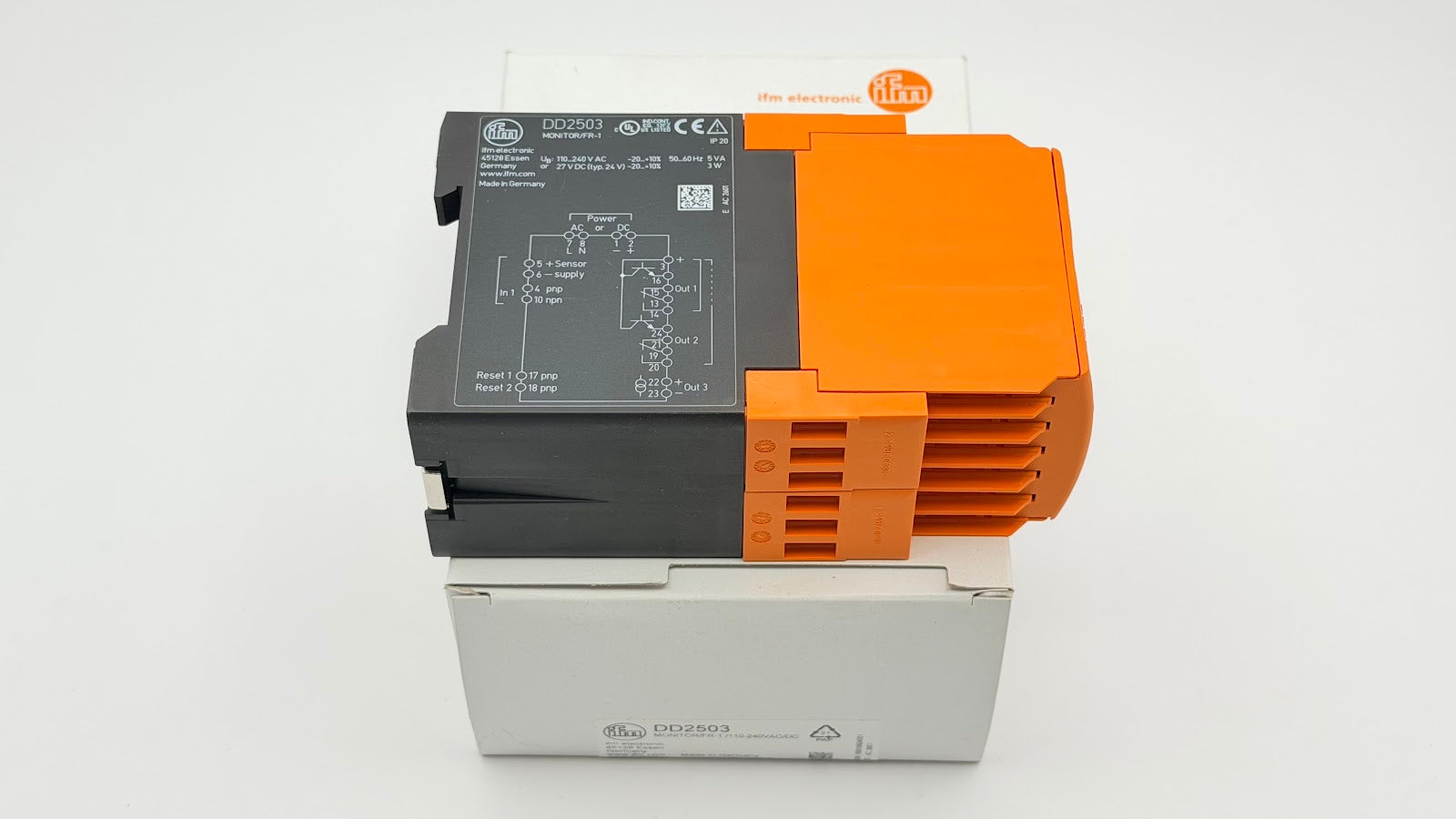

IFM DD2503 - Speed Monitor, 0.1...1000 Hz, 2 relay outputs

Q: What does the IFM DD2503 monitor?

The IFM DD2503 monitors frequency, rotational speed, speed, pulses and machine cycles.

Q: What is the frequency range of the IFM DD2503?

The IFM DD2503 covers 0.1...1000 Hz (1...60000 imp/min).

Q: What supply voltage does the IFM DD2503 need?

The IFM DD2503 runs on 110...240 V AC (50/60 Hz) or 27 V DC.

Q: What outputs does the IFM DD2503 have?

The IFM DD2503 has 2 relay outputs (6 A) and 1 analogue output (4...20 mA).

Q: How is the IFM DD2503 mounted?

The IFM DD2503 mounts on a 35 mm DIN rail (TH35 to EN 60715).

Q: What is the IP rating of the IFM DD2503?

The IFM DD2503 is rated IP 50 (IP 20 at the terminals).

Q: What is the operating temperature range of the IFM DD2503?

The IFM DD2503 operates from -40...60 °C.

Q: What display does the IFM DD2503 have?

The IFM DD2503 uses an OLED display with 128 x 64 pixels.

SKUDD2503BrandIFM

AED 1,395.00

Sale Sold out

Shipping calculated at checkout.

Only 1 left

Quantity

IFM DD2503 Speed Monitor — DIN-rail speed/frequency monitor with 2 relay outputs plus a 4...20 mA analogue output and OLED display. Frequency/speed monitor, 0.1...1000 Hz, 2 relay + 1 analogue (4...20 mA) output, 110...240 V AC/DC, DIN rail, IP 50.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: DD2503

Also known as: IFM DD2503 speed monitor / pulse evaluation unit / rotational speed monitor.

DD2503 Applications

The DD2503 is a microprocessor-based evaluation unit for speed monitoring. It monitors frequency, rotational speed, speed, pulses and machine cycles from a connected sensor, with a settable range of 0.1...1000 Hz (1...60000 imp/min). Two relay outputs and one 4...20 mA analogue output signal the process condition. The unit mounts on a 35 mm DIN rail, is powered by 110...240 V AC/DC, shows values on an OLED display and operates across -40...60 °C for demanding industrial monitoring.

DD2503 Specifications

Brand	IFM	Product Type	Evaluation unit for speed monitoring
IFM Type Code	MONITOR/FR-1 /110-240VAC/DC	Function	Monitoring of frequency, rotational speed, speed, pulses and machine cycles
Frequency setting range	0.1...1000 Hz	Speed setting range	1...60000 imp/min
Supply voltage	110...240 V AC (50/60 Hz) / 27 V DC	Power consumption	3 W
Sensor supply	19.6...27.7 V DC (<= 15 mA)	Analogue output	1x 4...20 mA (max. 500 ohm)
Relay outputs	2x (6 A at 250 V AC / 30 V DC)	Display	OLED, 128 x 64 pixels
Mounting	DIN rail (TH35 to EN 60715)	Protection rating	IP 50 (IP 20 at terminals)
Operating temperature	-40...60 °C	Dimensions	78 x 45 x 124.7 mm
Housing material	Plastics
