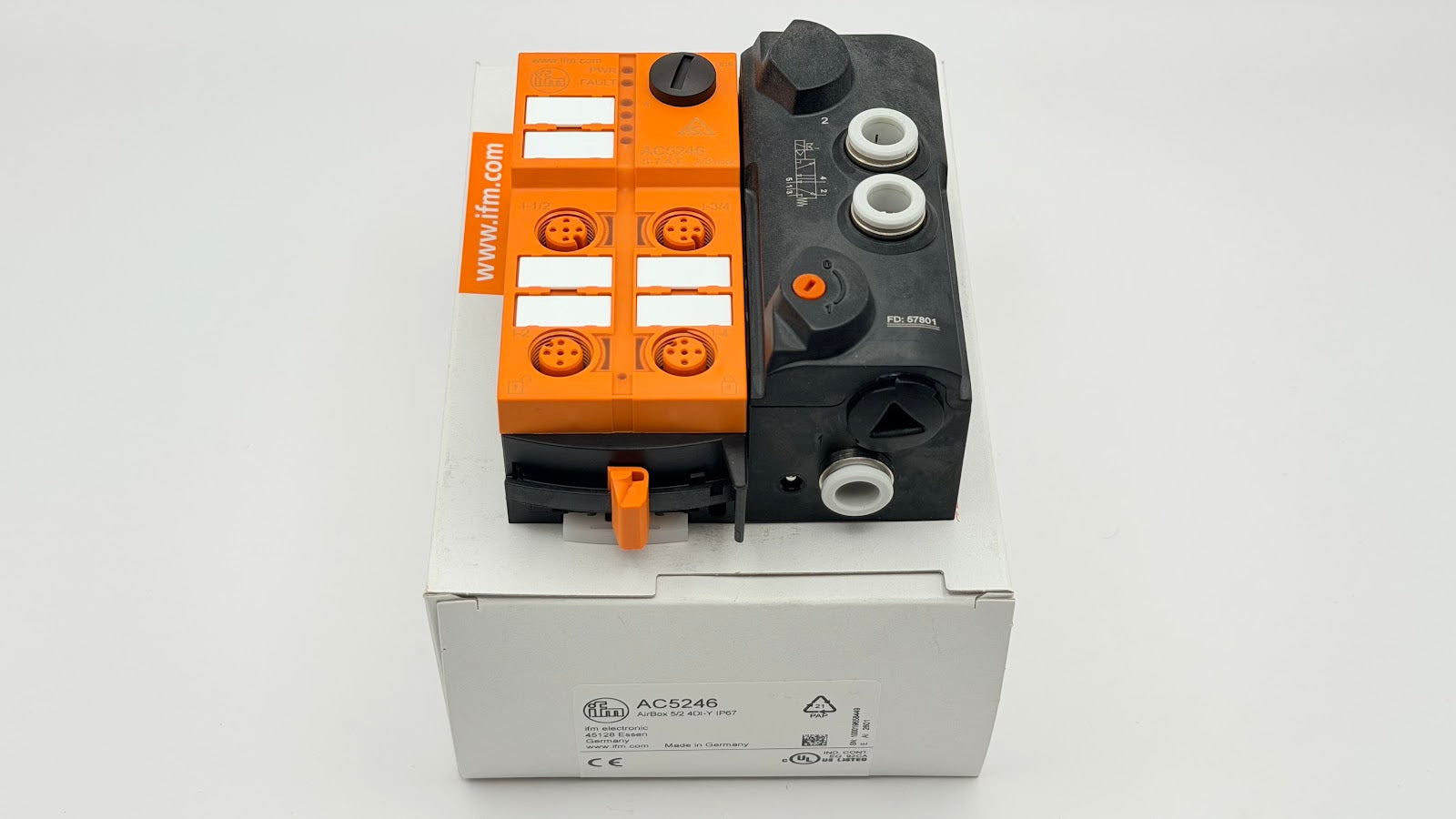

IFM AC5246 AS-Interface Airbox — Combined pneumatic 5/2-way valve and 4 digital inputs in one AS-i airbox. AS-i profile S-7.A.E, 4 DI PNP, 5/2-way valve, 3...8 bar, IP 65/67, DIN rail.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: AC5246
Also known as: IFM AC5246 as-interface module / asi airbox / pneumatic interface module.
AC5246 Applications
The AS-Interface airbox combines a monostable 5/2-way pneumatic slide valve with four digital PNP inputs in a single compact module, directly connected to the AS-i flat cable via quick mounting technology. It controls pneumatic actuators and reads sensor signals close to the process, reducing wiring. With 8 mm valve tube fittings, an operating pressure range of 3...8 bar and IP 65 / IP 67 protection, it suits demanding machine and plant automation.
AC5246 Specifications
Brand
IFM
Product Type
AS-Interface airbox with quick mounting technology, AirBox 5/2 4DI-Y IP67.
The IFM AC5246 is an AS-Interface airbox with quick mounting technology, combining a 5/2-way pneumatic valve and 4 digital inputs (AirBox 5/2 4DI-Y IP67).
What AS-i profile does the IFM AC5246 use?
The IFM AC5246 uses AS-i profile S-7.A.E and supports AS-i version 2.11 and 3.0 with master profiles M2, M3 and M4.
How many inputs and outputs does the IFM AC5246 have?
The IFM AC5246 has 4 digital PNP inputs and 1 pneumatic 5/2-way monostable slide valve output with selectable NO/NC function.
What valve connectors does the IFM AC5246 use?
The IFM AC5246 uses 8 mm tube fittings for the pneumatic valve connections.
What is the operating pressure range of the IFM AC5246?
The IFM AC5246 operates at 3...8 bar with an air flow of 500 l/min at 6/5 bar.
What protection rating does the IFM AC5246 have?
The IFM AC5246 has IP 65 and IP 67 protection.
How is the IFM AC5246 mounted?
The IFM AC5246 mounts on a DIN rail (TH35 EN 60715) and connects to the AS-i flat cable via quick mounting technology.
What is the operating temperature of the IFM AC5246?
The IFM AC5246 has an ambient temperature range of -10...55 °C and a medium temperature range of -10...50 °C.
