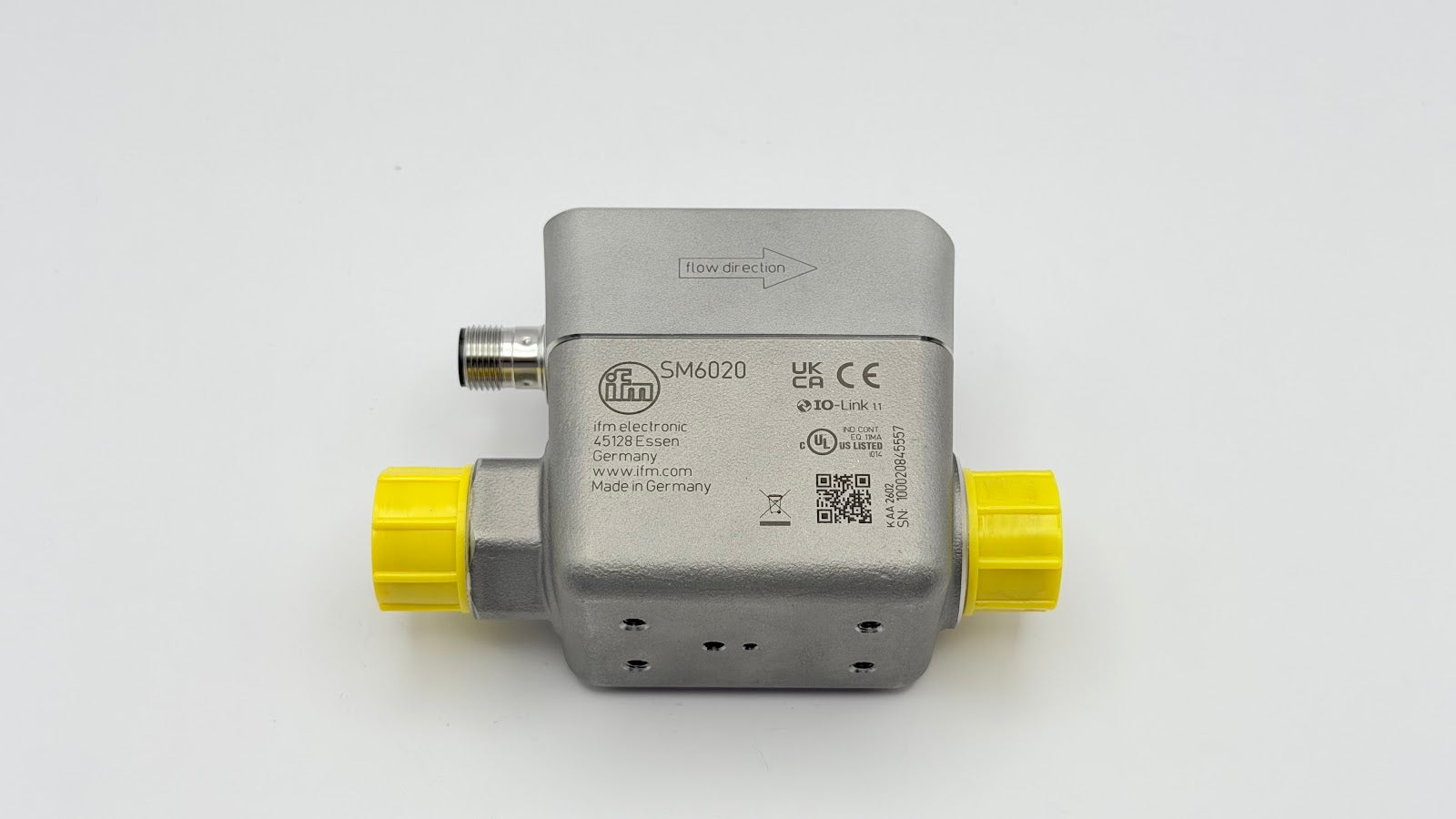

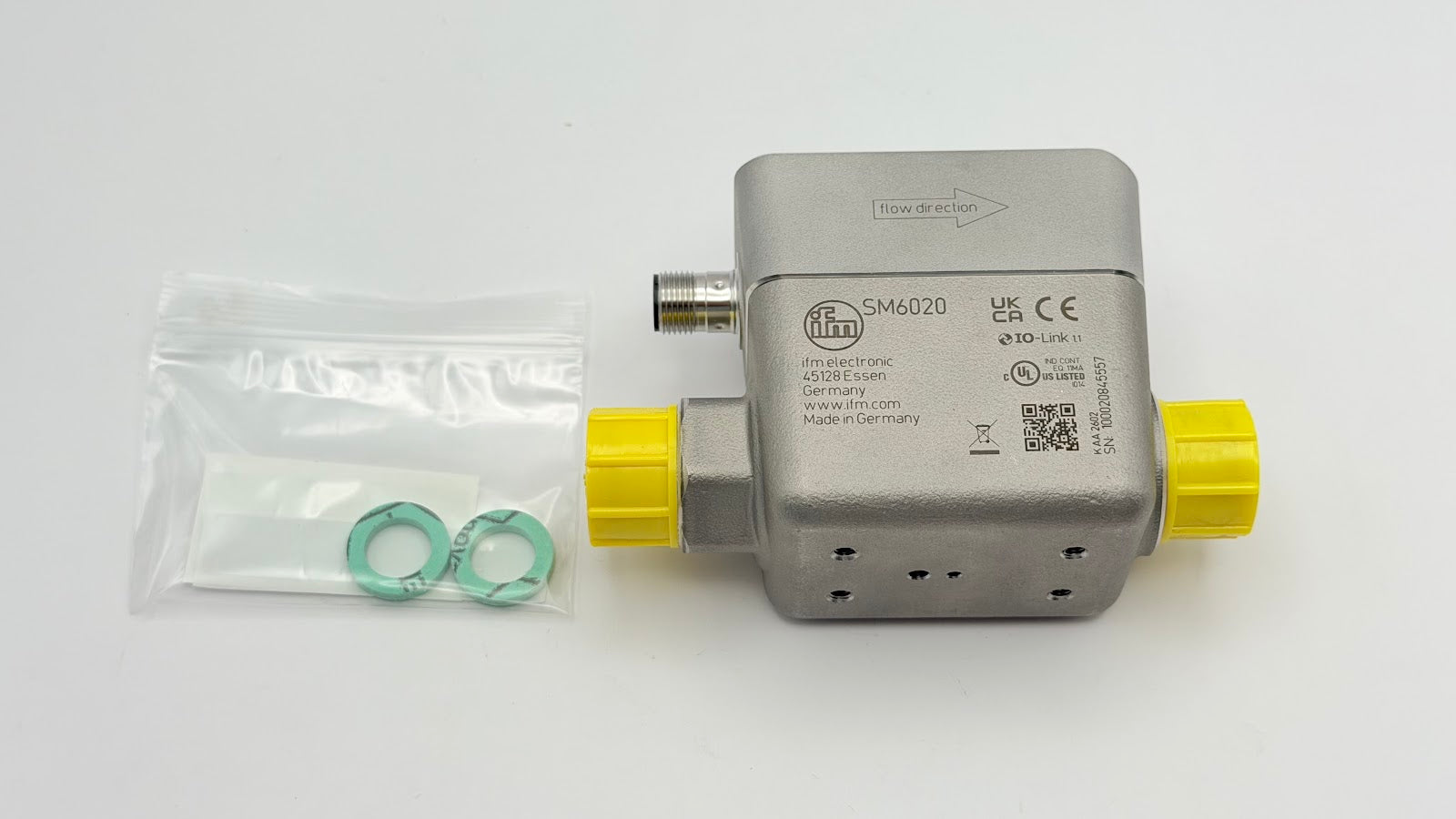

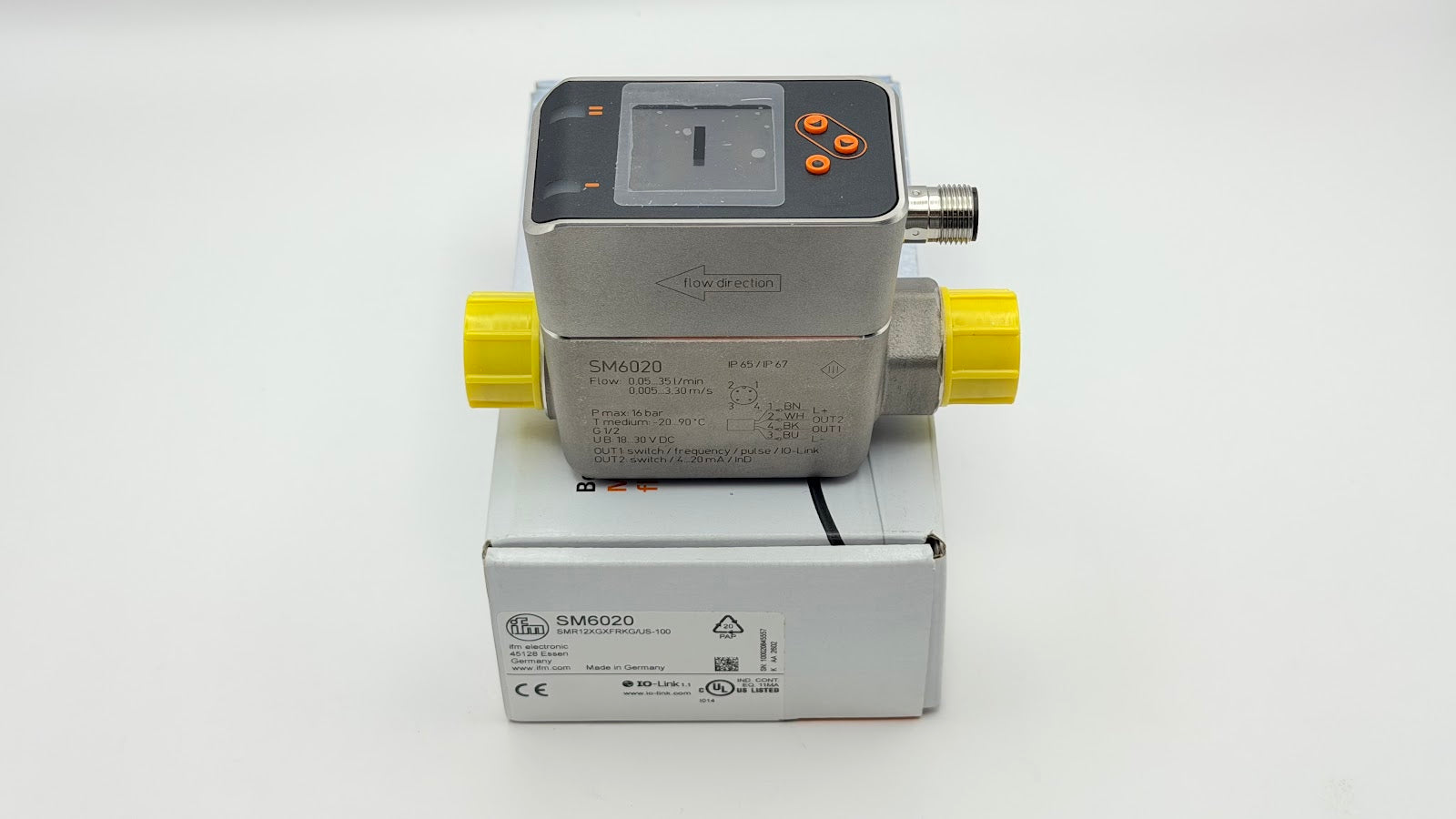

IFM SM6020 Magnetic-Inductive Flow Meter — Magmeter with colour display and IO-Link for conductive liquids up to 35 l/min. 0.05...35 l/min, G 1/2, 2 x DI + analogue, IO-Link, colour display, 16 bar, IP 65/67.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: SM6020
Also known as: IFM SM6020 flow meter / flow sensor / magmeter.
SM6020 Applications
The magnetic-inductive flow meter monitors the flow of conductive liquids such as water and hydrous media with a conductivity of at least 20 µS/cm. Having no moving parts, it measures flow, temperature and consumed quantity with a totaliser, showing values on a rotatable colour display. Two switching outputs, an analogue output and IO-Link communication provide flexible integration. With a G 1/2 process connection, 16 bar rating and IP 65 / IP 67 housing, it suits water and industrial fluid applications.
SM6020 Specifications
Brand
IFM
Product Type
Magnetic-inductive flow meter for conductive liquids.
IFM Type Code
SMR12XGXFRKG/US-100
Measuring range
0.05...35 l/min (0.003...2.1 m³/h)
Medium
conductive liquids; water; hydrous media (≥ 20 µS/cm)
Process connection
G 1/2 external thread (DN15, flat seal)
Outputs
2 x digital (PNP/NPN); 1 x analogue (4...20 mA)
IO-Link
COM2, 38.4 kBaud, revision 1.1
Display
colour display 1.44", 128 x 128 pixels; 2 x LED yellow
