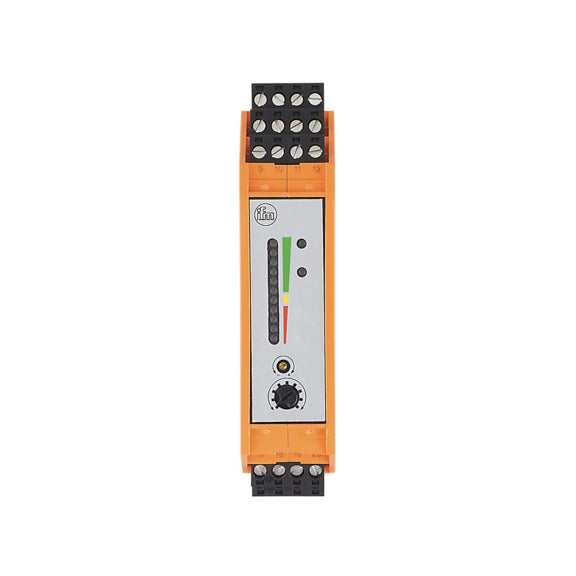

IFM SN0150 - Control Monitor for Flow Sensors, VS3000 Evaluation, Relay Output

IFM SN0150 - Control Monitor for Flow Sensors, VS3000 Evaluation, Relay Output

SKUSN0150BrandIFM
AED 1,736.58
AED 1,929.53 AED 1,736.58
Sale Sold out
Shipping calculated at checkout.

IFM SN0150 Control Monitor for Flow Sensors — VS3000 DIN-rail evaluation unit for modular flow probes, relay output, 90...240 V AC. control monitor (evaluation unit) for modular flow sensors, integrated flow, temperature and wire-break monitoring, adjustable relay outputs, multi-colour LED bargraph, DIN-rail, 90...240 V AC, IP20.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: SN0150

Also known as: IFM SN0150 flow monitor / flow evaluation unit / flow controller / flow switch.

SN0150 Applications

The IFM SN0150 control monitor evaluates modular flow probes such as the SF6200, providing flow, temperature and wire-break monitoring with adjustable relay outputs and a clear LED bargraph, on DIN rail in the control cabinet.

SN0150 Specifications

Brand IFM Product Type Control monitor for flow sensors
Product type code VS3000/85...265VAC Function Flow, temperature, wire-break monitoring
Outputs Relay (4 A, 250 V AC / 30 V DC) Operating voltage 90...240 V AC
Display 11-LED bargraph Mounting DIN rail (TH35)
Protection IP 20 Weight 252.5 g

SN0150 Datasheet & Manual

Download Datasheet & ManualIFM SN0150 · PDF · Official IFM document

SN0150 – Frequently Asked Questions (FAQ)

What functions does the IFM SN0150 control monitor perform?

It performs flow monitoring, temperature monitoring, and wire monitoring for flow sensors of the VS3000 series.

What relay output does the SN0150 provide?

It provides a 1-channel relay output rated 4 A (250 V AC / 30 V DC).

What is the operating voltage of the SN0150?

The operating voltage is 90...240 V AC at 47...63 Hz, with a maximum power consumption of 4 VA.

How repeatable and fast is the SN0150?

Repeatability is 4 K and the response time is < 3 s.

What is the housing material and IP rating of the SN0150?

The housing is PBT and it is rated IP 20, with an ambient temperature range of -20...60 degrees C.

Does the SN0150 have a display?

Yes, it has 11 x LED for switching status indication.

Can the SN0150 be adjusted for gases and does it have a start-up delay?

Yes, on delivery it is set for liquids; for gas monitoring you link terminals 23 / 24. It also has an adjustable power-on delay time of 10...80 s.
