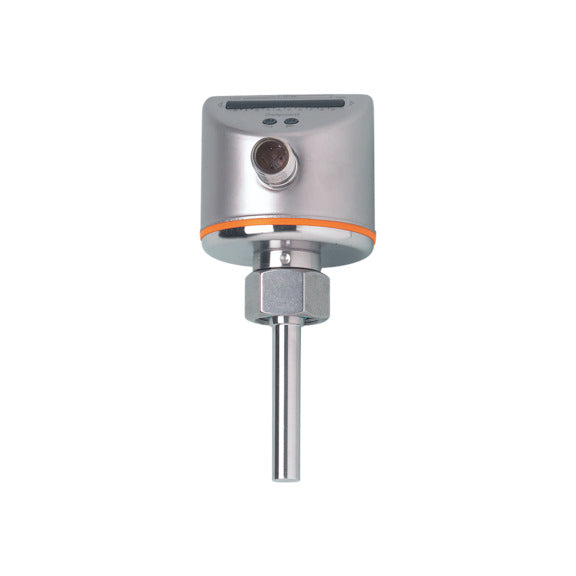

IFM SI5010 - Flow Monitor, IO-Link, 300 bar Rated

Q: What are the wetted materials and IP rating of the SI5010?

The IFM SI5010 wetted parts are stainless steel (316L/1.4404) with an FKM 80 Shore A O-ring; it is rated IP 65 and IP 67 and handles a medium temperature of -25...80 degrees C.

Q: What process connection and setup interface does the SI5010 use?

The IFM SI5010 has an M18 x 1.5 internal-thread process connection, an M12 A-coded 4-contact electrical connection, and a 10 x three-colour LED display with pushbutton adjustment.

SKUSI5010BrandIFM

AED 1,390.00

Sale Sold out

Shipping calculated at checkout.

Only 4 left

Quantity

IFM SI5010 Flow Monitor — single PNP output plus IO-Link, 300 bar rated, pushbutton setup and LED bar graph. thermal (calorimetric) flow monitor for liquids and gases, M18 x 1.5 internal thread, 300 bar rated, 1 PNP output plus IO-Link, LED bar graph, pushbutton setup, stainless steel 316L housing, IP65/IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: SI5010

Also known as: IFM SI5010 flow sensor / flow switch / flow meter.

SI5010 Applications

The IFM SI5010 flow monitor detects flow of liquids and gases in pipes to protect pumps, cooling circuits and lubrication lines against dry running and blockages. Rated to 300 bar and fitted with an IO-Link interface alongside its PNP output, it suits high-pressure hydraulic and process applications and supports digital parameter setting and diagnostics. The 316L stainless steel housing withstands harsh industrial duty.

SI5010 Specifications

Brand	IFM	Product Type	Flow monitor (thermal flow switch)
Product type code	SID10ADBFPKG/US-100	Media	Liquids; gases
Medium temperature	-25...80 °C	Pressure rating	300 bar (30 MPa)
Process connection	M18 x 1.5 internal thread	Operating voltage	18...36 V DC
Output	1 x PNP switching; IO-Link	Interface	IO-Link 1.1 (COM2)
Setting range (liquids)	3...300 cm/s	Setting range (gases)	200...3000 cm/s
Protection	IP 65; IP 67	Housing material	Stainless steel 1.4404 / 316L
Weight	248.5 g	Electrical connection	M12 connector, A-coded, 4 contacts

SI5010 Datasheet & Manual

Download Datasheet & ManualIFM SI5010 · PDF · Official IFM document

SI5010 – Frequently Asked Questions (FAQ)

What flow setting range does the IFM SI5010 cover?

The IFM SI5010 has a setting range of 3...300 cm/s for liquids (greatest sensitivity 3...100 cm/s) and 200...3000 cm/s for gases (greatest sensitivity 200...800 cm/s).

What measuring principle does the SI5010 use?

The IFM SI5010 uses the thermal mass flow (calorimetric) measuring principle.

What is the repeatability and response time of the SI5010?

The IFM SI5010 has a repeatability of 1...5 cm/s, a temperature drift of 0.1 cm/s per Kelvin, and a response time of 1...10 s (liquids and gases).

What output does the SI5010 provide?

The IFM SI5010 provides one PNP switching output (or IO-Link, configurable) with a permanent current rating of 250 mA, max. voltage drop 2.5 V DC, and pulsed short-circuit / overload protection.

Does the SI5010 support IO-Link, and at what revision and baud rate?

Yes. The IFM SI5010 supports IO-Link revision 1.1 at COM2 (38.4 kBaud) per IEC 61131-9, with a minimum process cycle time of 3 ms.

What is the operating voltage and pressure rating of the SI5010?

The IFM SI5010 operates on 18...36 V DC with < 60 mA current consumption and is rated to 300 bar (30 MPa).

What are the wetted materials and IP rating of the SI5010?

The IFM SI5010 wetted parts are stainless steel (316L/1.4404) with an FKM 80 Shore A O-ring; it is rated IP 65 and IP 67 and handles a medium temperature of -25...80 degrees C.

What process connection and setup interface does the SI5010 use?

The IFM SI5010 has an M18 x 1.5 internal-thread process connection, an M12 A-coded 4-contact electrical connection, and a 10 x three-colour LED display with pushbutton adjustment.
