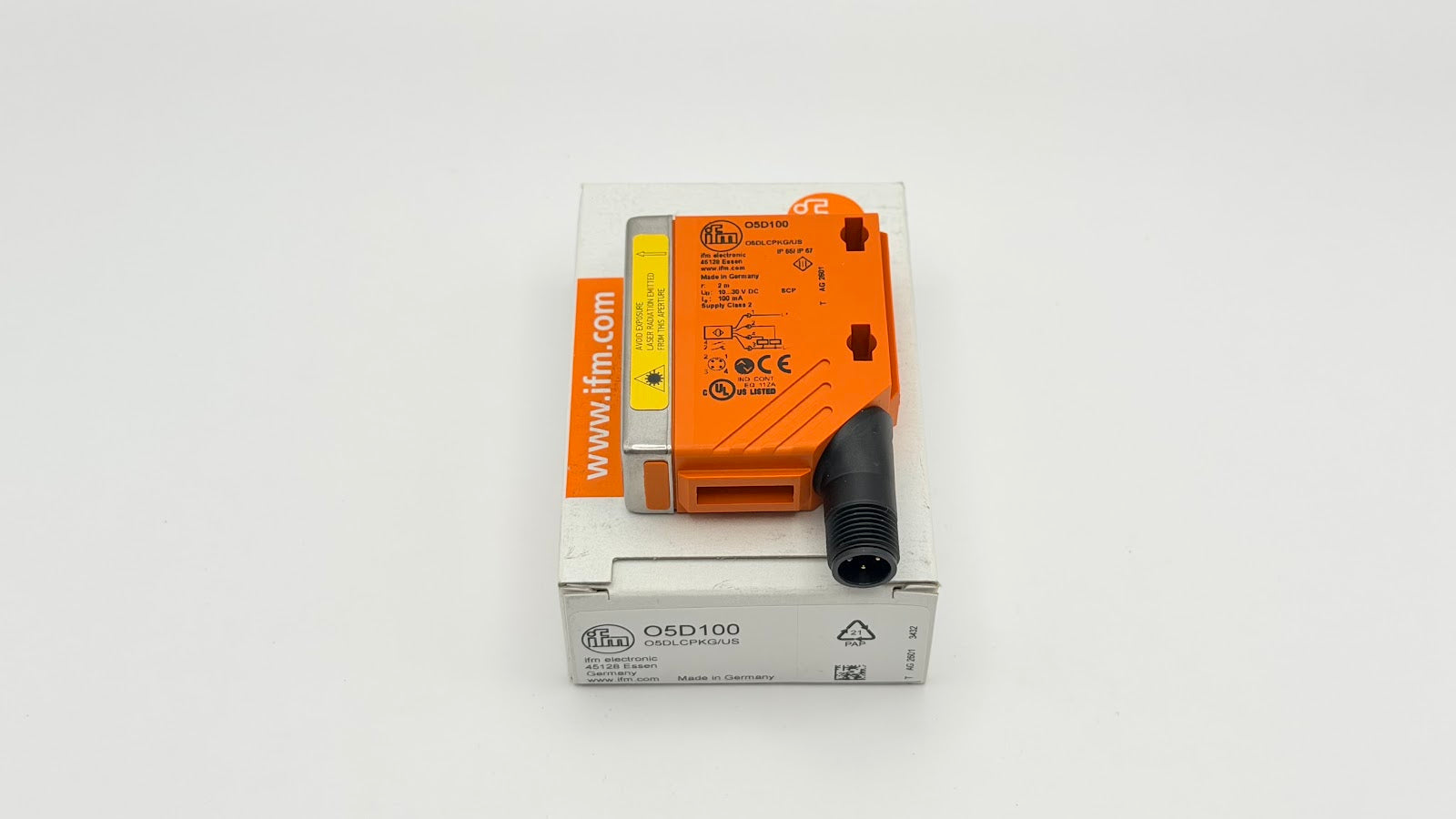

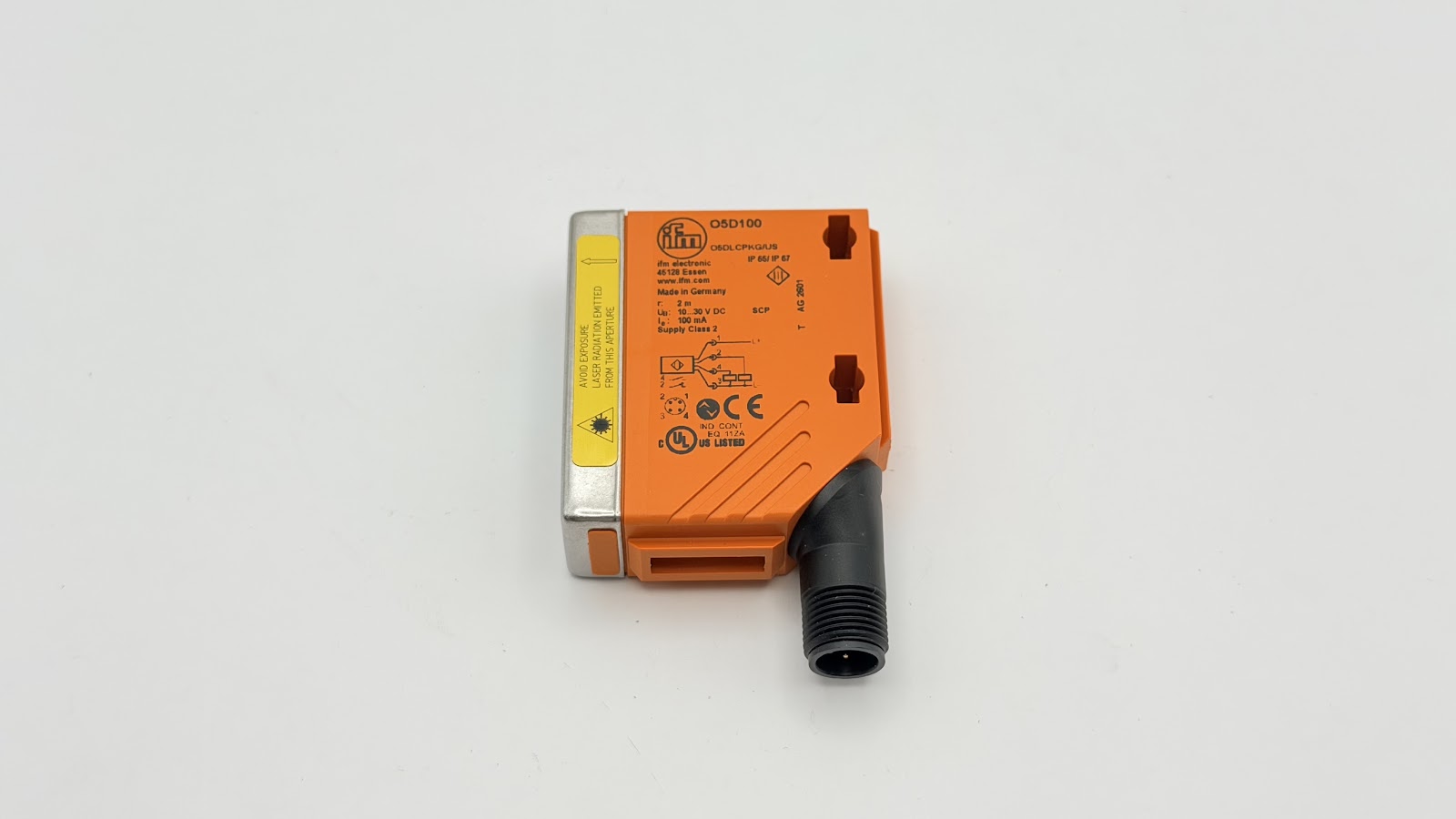

IFM O5D100 Laser Distance Sensor — compact time-of-flight sensor 0.03...2 m with display, 2 PNP outputs, background suppression and IO-Link. laser distance sensor with time-of-flight measurement 0.03...2 m, reliable background suppression, 3-digit display, 2 PNP switching outputs, IO-Link, laser class 2 red light, PA housing, IP65/IP67.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: O5D100
Also known as: IFM O5D100 distance sensor / laser sensor / photoelectric sensor / optical sensor.
O5D100 Applications
The IFM O5D100 laser distance sensor detects objects and distances up to 2 m for positioning, presence and level tasks in packaging, handling and assembly. Time-of-flight measurement with background suppression reliably detects glossy and dark surfaces even at oblique angles, and the display with pushbuttons allows precise switch-point setting. IO-Link communication simplifies parameter setup and diagnostics on the line.
The IFM O5D100 has a measuring/sensing range of 0.03...2 m.
What operating principle and light source does the O5D100 use?
The IFM O5D100 is a photoelectric distance sensor with background suppression using a red laser at 650 nm wavelength, laser protection class 2 (output <= 4.0 mW).
How accurate is the O5D100 and how fast does it respond?
The IFM O5D100 accuracy ranges from +/-15 mm (0...1000 mm) to +/-30 mm (at 2000 mm) depending on distance and surface; it has a 33 Hz sampling rate, 11 Hz DC switching frequency and hysteresis < 2.5%.
What outputs does the O5D100 provide?
The IFM O5D100 provides two PNP digital outputs, normally open / normally closed (complementary), with max. 100 mA current load per output.
Does the O5D100 support IO-Link?
Yes. The IFM O5D100 supports IO-Link revision 1.1 at COM2 (38.4 kBaud).
What is the operating voltage and current consumption of the O5D100?
The IFM O5D100 operates on 10...30 V DC and draws 75 mA at 24 V.
What are the housing material, IP rating and temperature range of the O5D100?
The IFM O5D100 housing is PA with a stainless-steel bezel, TPU operator interface and PMMA lens; it is rated IP 65 and IP 67 and operates from -25...60 degrees C (warm-up required below -10 degrees C).
Does the O5D100 have a display, and what electrical connection does it use?
Yes. The IFM O5D100 has a 3-digit alphanumeric display (unit: cm) and connects via an M12 A-coded connector with 4 contacts.
