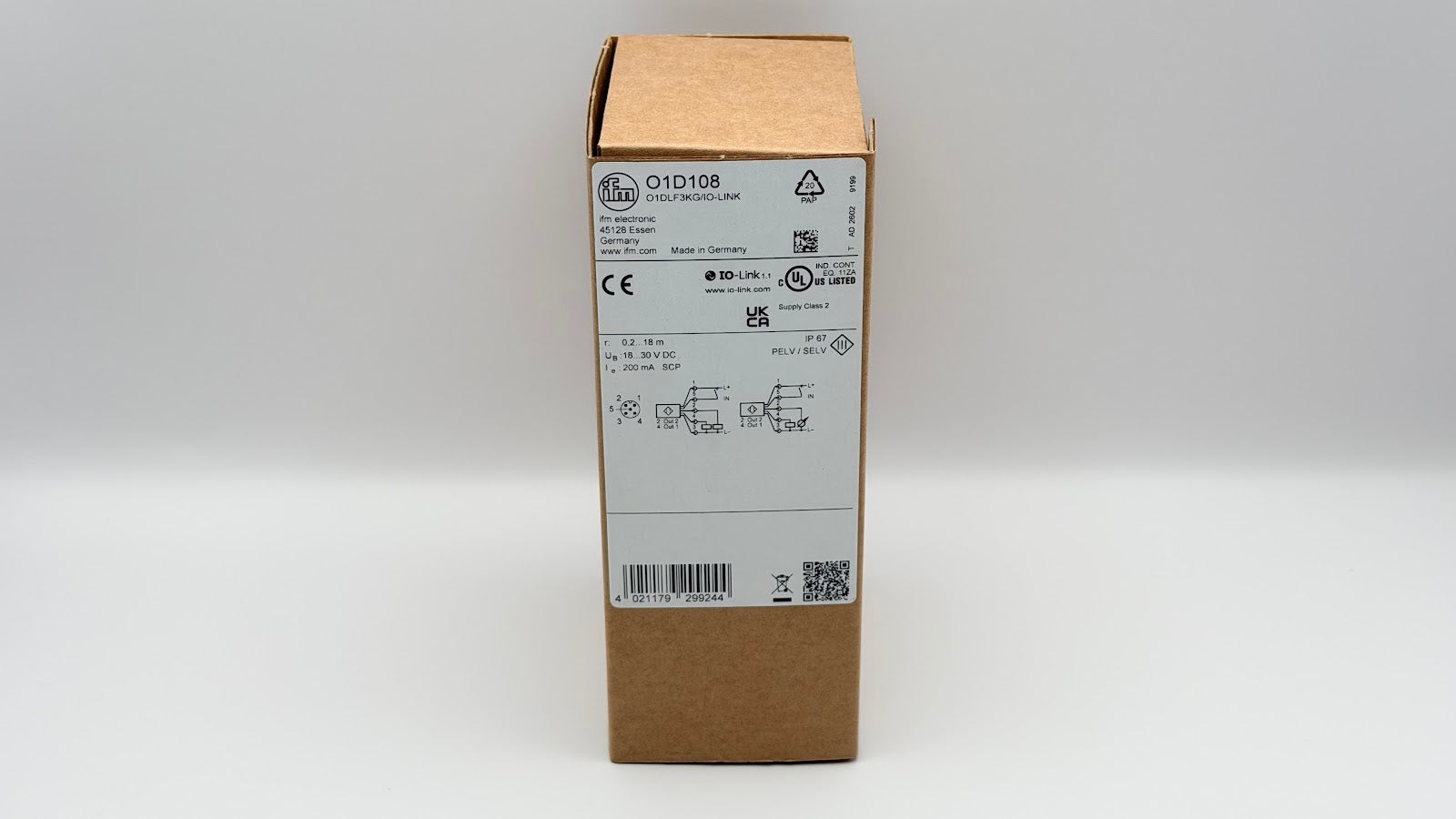

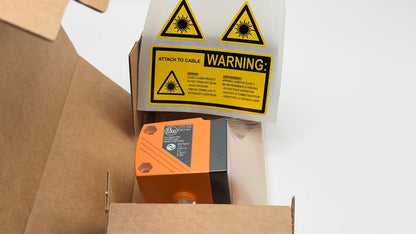

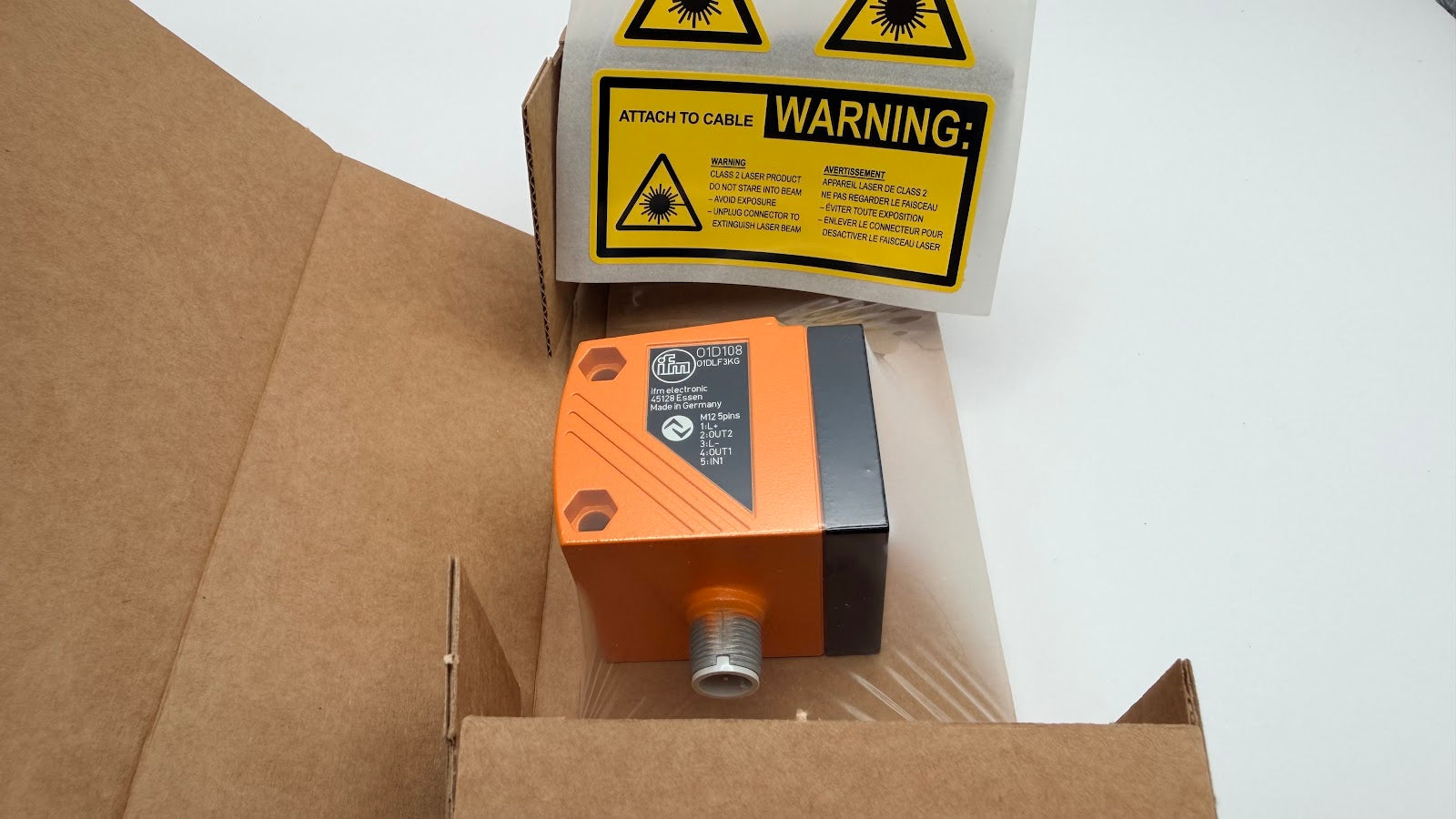

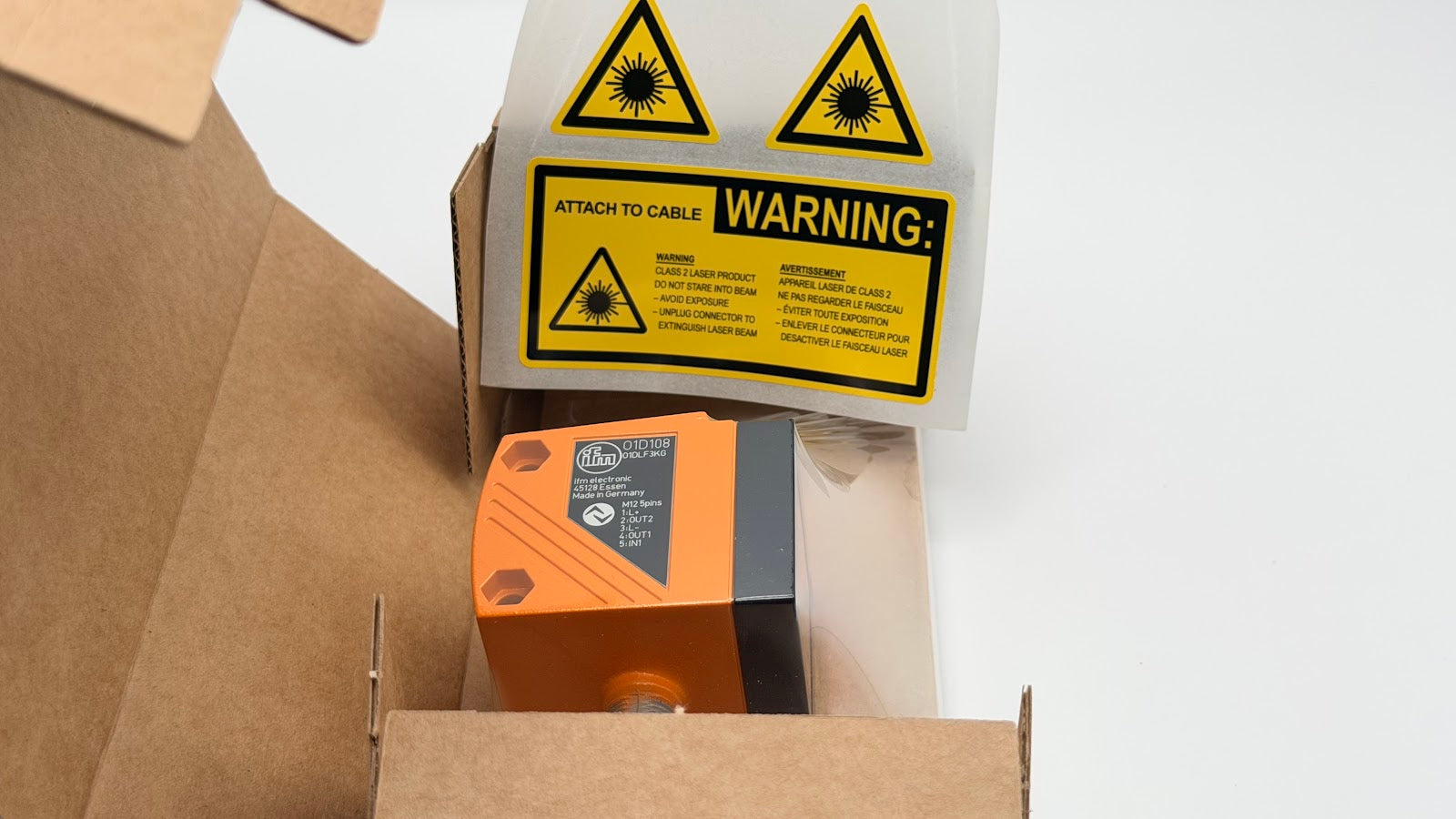

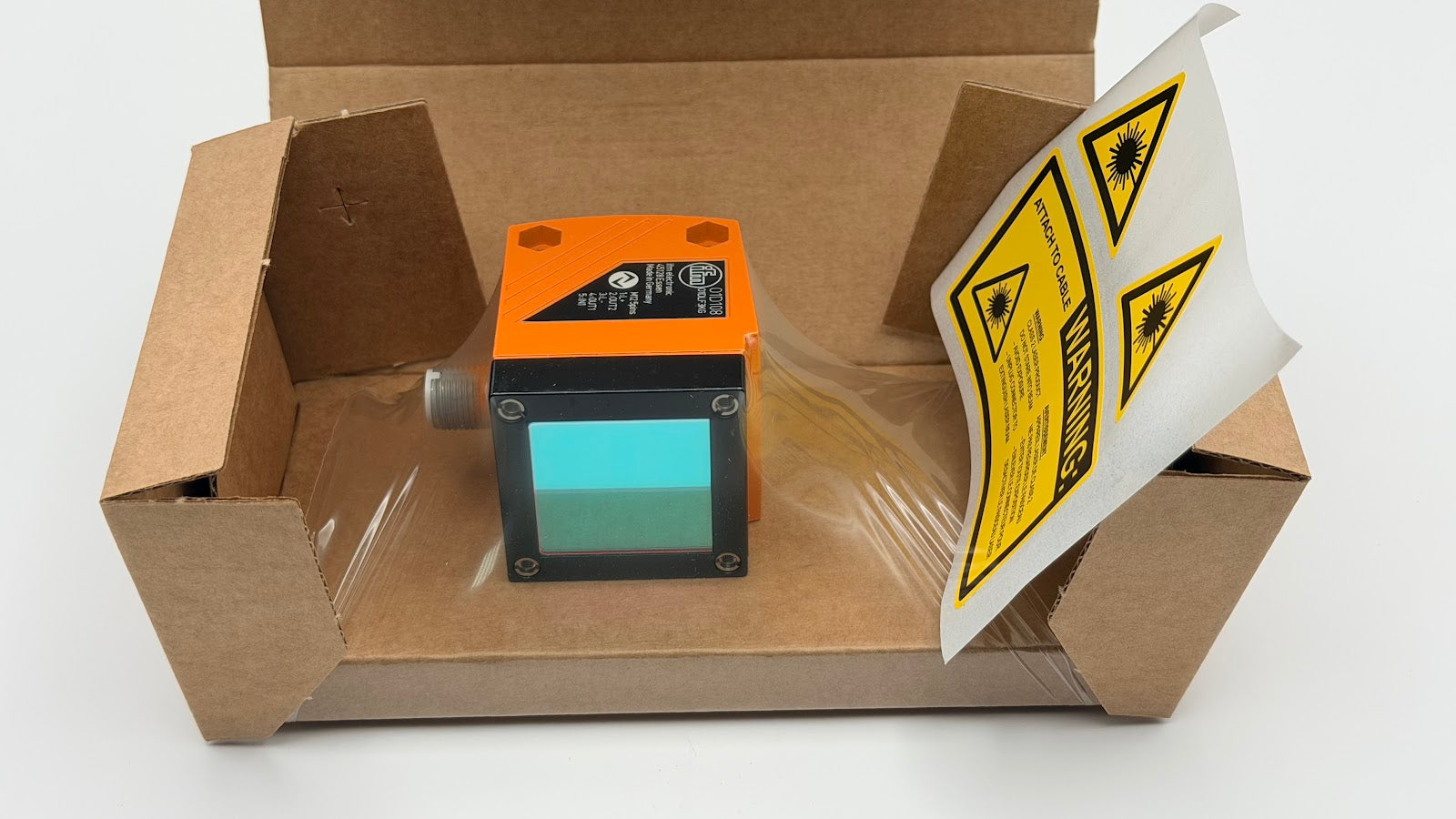

IFM O1D108 - Laser Distance Sensor, 0.2...18 m range, Laser class 2, IO-Link

Q: What is the measuring range of the IFM O1D108?

The IFM O1D108 measures distances from 0.2 to 18 m against white paper (200 x 200 mm, 90% remission).

Q: What laser class does the IFM O1D108 use?

The IFM O1D108 uses a visible red laser at 650 nm and is classified as laser class 2.

Q: What outputs does the IFM O1D108 provide?

It provides two programmable digital PNP switching outputs (200 mA) and one analogue output (4...20 mA / 0...10 V).

Q: Does the IFM O1D108 support IO-Link?

Yes, the IFM O1D108 supports IO-Link COM2 at 38.4 kBaud, revision 1.1, for parameter setting and process data.

Q: What is the operating voltage of the IFM O1D108?

The IFM O1D108 operates on 18...30 V DC with a current consumption below 150 mA.

Q: What is the electrical connection of the IFM O1D108?

The IFM O1D108 connects via an M12 A-coded connector with 5 pins.

Q: What is the protection rating of the IFM O1D108?

The IFM O1D108 has a diecast zinc housing rated IP 67.

Q: What is the operating temperature range of the IFM O1D108?

The IFM O1D108 operates within an ambient temperature range of -10 to 60 °C.

SKUO1D108BrandIFM

AED 1,309.00

Sale Sold out

Shipping calculated at checkout.

Only 2 left

Quantity

IFM O1D108 Laser Distance Sensor — Long-range laser measurement to 18 m with 4-digit display and IO-Link. 0.2...18 m, laser class 2 (650 nm), 18...30 V DC, 2 x PNP + 1 analogue, IO-Link, M12, IP 67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: O1D108

Also known as: IFM O1D108 distance sensor / photoelectric sensor / optical sensor.

O1D108 Applications

The O1D108 photoelectric distance sensor uses a visible laser to measure distances up to 18 m regardless of target colour or surface. Suited to industrial applications and factory automation, it provides two programmable digital switching outputs and one analogue output, plus IO-Link communication for parameter setting and process data. The 4-digit alphanumeric display and pushbuttons allow fast on-site setup, while the diecast zinc housing rated to IP 67 withstands demanding production environments.

O1D108 Specifications

Brand	IFM	Product Type	Photoelectric distance sensor for precise distance measurement in industrial applications and factory automation.
IFM Type Code	O1DLF3KG/IO-LINK	Measuring range	0.2...18 m (white paper 200 x 200 mm, 90% remission)
Light source	Laser, 650 nm	Laser class	2
Sampling rate	1...33 Hz (factory setting 15 Hz)	Operating voltage	18...30 V DC
Current consumption	< 150 mA	Outputs	2 x digital (PNP, 200 mA) + 1 x analogue
Analogue output	4...20 mA / 0...10 V	Output function	Normally open / normally closed, programmable
Communication interface	IO-Link COM2 (38.4 kBaud), revision 1.1	Electrical connection	M12 connector, A-coded, 5 pins
Housing material	Diecast zinc; glass front pane	Protection rating	IP 67
Ambient temperature	-10...60 °C
