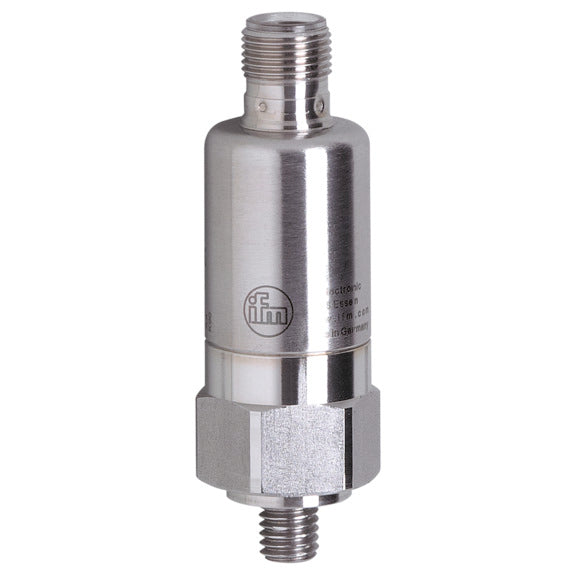

IFM VTV122 - Vibration Transmitter, 4...20 mA (2-wire), ISO 10816

Q: What is the measuring range of the IFM VTV122 vibration transmitter?

The IFM VTV122 measures vibration velocity from 0...25 mm/s (RMS).

Q: What is the frequency range of the IFM VTV122?

The IFM VTV122 has a frequency range of 10...1000 Hz and is a vibration transmitter to ISO 10816.

Q: What output does the IFM VTV122 provide?

The IFM VTV122 provides one analogue 4...20 mA (2-wire) current output with a max. load of 720 Ohm at 24 V.

Q: How accurate is the IFM VTV122?

The IFM VTV122 has a measuring error of less than +/- 3 % of final value, repeatability of less than 0.5 % of final value, and a linearity deviation of 0.25 %.

Q: What sensor technology does the IFM VTV122 use?

The IFM VTV122 uses a MEMS (microelectromechanical system) sensor.

Q: What is the operating voltage of the IFM VTV122?

The IFM VTV122 operates on 9.6...32 V DC and is protection class III.

Q: What is the IP rating and temperature range of the IFM VTV122?

The IFM VTV122 is rated IP 67 / IP 68 / IP 69K and operates over -30...125 degrees C (UL: < 80 degrees C).

Q: What housing and mounting does the IFM VTV122 use?

The IFM VTV122 has a stainless steel (316L/1.4404) housing weighing 123.5 g, mounts via a set screw with an 8 Nm tightening torque, and uses a 1 x M12 A-coded connector.

SKUVTV122BrandIFM

AED 960.00

Sale Sold out

Shipping calculated at checkout.

Only 5 left

Quantity

IFM VTV122 Vibration Transmitter — loop-powered two-wire transmitter to ISO 10816 with linearized 4...20 mA output, 0...25 mm/s RMS, 10...1000 Hz. vibration transmitter to DIN ISO 10816 for permanent overall-vibration monitoring, measuring range 0...25 mm/s RMS, frequency range 10...1000 Hz, linearized 4...20 mA two-wire output, MEMS sensor, stainless steel, IP67/IP68/IP69K.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: VTV122

Also known as: IFM VTV122 vibration sensor / vibration monitor / accelerometer.

VTV122 Applications

The IFM VTV122 vibration transmitter continuously monitors overall machine vibration to DIN ISO 10816 on pumps, fans, motors and gearboxes. Its two-wire 4...20 mA output feeds a linearized vibration-velocity signal straight into a PLC or DCS for trending and alarming in condition-monitoring systems. The rugged stainless steel body, wide operating temperature and high protection rating suit permanent duty in harsh plant.

VTV122 Specifications

Brand	IFM	Product Type	Vibration transmitter
Standard	DIN ISO 10816	Measuring range	0...25 mm/s (RMS)
Frequency range	10...1000 Hz	Sensor type	MEMS
Output	Analog 4...20 mA (two-wire)	Operating voltage	9.6...32 V DC
Measuring error	< ± 3 % of final value	Measurement axes	1
Operating temperature	-30...125 °C	Protection	IP 67; IP 68; IP 69K
Housing material	Stainless steel 1.4404 / 316L	Weight	123.5 g
Electrical connection	M12 connector, A-coded

VTV122 Datasheet & Manual

Download Datasheet & ManualIFM VTV122 · PDF · Official IFM document

VTV122 – Frequently Asked Questions (FAQ)

What is the measuring range of the IFM VTV122 vibration transmitter?

The IFM VTV122 measures vibration velocity from 0...25 mm/s (RMS).

What is the frequency range of the IFM VTV122?

The IFM VTV122 has a frequency range of 10...1000 Hz and is a vibration transmitter to ISO 10816.

What output does the IFM VTV122 provide?

The IFM VTV122 provides one analogue 4...20 mA (2-wire) current output with a max. load of 720 Ohm at 24 V.

How accurate is the IFM VTV122?

The IFM VTV122 has a measuring error of less than +/- 3 % of final value, repeatability of less than 0.5 % of final value, and a linearity deviation of 0.25 %.

What sensor technology does the IFM VTV122 use?

The IFM VTV122 uses a MEMS (microelectromechanical system) sensor.

What is the operating voltage of the IFM VTV122?

The IFM VTV122 operates on 9.6...32 V DC and is protection class III.

What is the IP rating and temperature range of the IFM VTV122?

The IFM VTV122 is rated IP 67 / IP 68 / IP 69K and operates over -30...125 degrees C (UL: < 80 degrees C).

What housing and mounting does the IFM VTV122 use?

The IFM VTV122 has a stainless steel (316L/1.4404) housing weighing 123.5 g, mounts via a set screw with an 8 Nm tightening torque, and uses a 1 x M12 A-coded connector.
