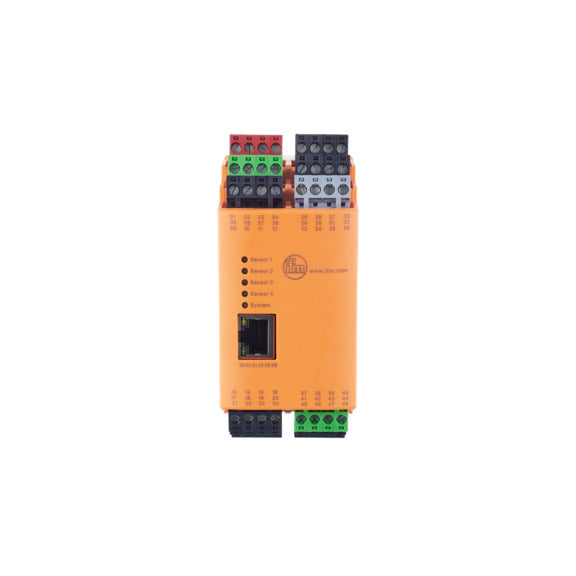

IFM VSE100 - Vibration Diagnostic Electronics, 4 Dynamic Inputs, Ethernet

SKUVSE100BrandIFM

AED 3,698.80

~~AED 4,109.78~~ AED 3,698.80

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM VSE100 Vibration Diagnostic Electronics — vibration diagnostic electronics, 4 dynamic IEPE inputs, 16 I/O, Ethernet, DIN-rail. Diagnostic electronics for vibration sensors, 4 dynamic/IEPE inputs (0.1...12000 Hz, 100 kSa), 16 parameterisable I/O, Ethernet TCP/IP, DIN-rail, 24 V DC, IP20.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: VSE100

Also known as: IFM VSE100 vibration sensor / vibration transmitter / vibration monitor / accelerometer.

VSE100 Applications

The IFM VSE100 is diagnostic electronics used for continuous online vibration monitoring and machine condition monitoring. It is suited for detecting bearing damage, imbalance and misalignment on motors, pumps, fans and gearboxes to enable predictive maintenance. It accepts up to four dynamic IEPE accelerometer inputs sampled at 100 kSamples with a 0.1...12000 Hz range, provides sixteen parameterisable digital/analogue I/O and an Ethernet interface, stores history data in ring memory, and is configured on DIN rail via the VES004 PC software.

VSE100 Specifications

Brand	IFM	Product Type	Diagnostic electronics for vibration sensors
IFM Type Code	DIAGNOSTIC ELECTRONICS (VSE100)	Dynamic Inputs	4 (IEPE / 0...10 mA / 4...20 mA), 0.1...12000 Hz, 16-bit, 100 kSa/s
Total I/O	16 parameterisable (digital / analogue)	Interface	Ethernet 10/100 TCP/IP (RJ45)
Operating Voltage	24 V DC (+20%)	Current Consumption	200 mA
Data Memory	Ring / FIFO, 881,664 records, RTC	Mounting	DIN rail TH35 (EN 60715)
Dimensions	114.2 x 50 x 105.3 mm	Protection Rating	IP 20
Ambient Temperature	0...70 °C	Housing Material	PA
Configuration Software	VES004	Electrical Connection	COMBICON; RJ45 Ethernet
Weight	460.6 g

VSE100 Datasheet & Manual

Download Datasheet & ManualIFM VSE100 · PDF · Official IFM document

VSE100 – Frequently Asked Questions (FAQ)

How many dynamic inputs does the IFM VSE100 have and what are their specs?

It has 4 dynamic inputs (S1...S4) accepting current/IEPE/4-20 mA signals over 0.1-12000 Hz, with 16-bit resolution and up to 100 kSamples.

What additional inputs does the VSE100 offer besides the dynamic channels?

It has 2 process value inputs (IN1/IN2) for digital pulse (0.1-100000 Hz, HTL) or 4-20 mA / 0-10 V analogue (12-bit), plus 8 digital multifunctional I/O (HTL input, PNP output).

What outputs does the VSE100 provide?

It has 1 multifunctional output (PNP digital, or 4-20 mA / 0-10 V analogue) and 1 digital output (PNP, OU2), with a max load of 500 ohm and short-circuit and overload protection.

What communication interface does the IFM VSE100 use?

It uses Ethernet (10Base-T / 100Base-TX) at 10/100 Mbit/s over TCP/IP via an RJ45 connector, with a factory-set IP address of 192.168.0.1.

What operating voltage and current does the VSE100 need?

It operates on 24 V DC (+/-20%) with a current consumption of 200 mA at 24 V DC.

What is the housing, mounting and IP rating of the VSE100?

The housing is PA plastic for DIN-rail mounting (TH35 EN 60715), measuring 114.2 x 50 x 105.3 mm, rated IP 20.

What is the operating temperature of the IFM VSE100?

The operating and storage temperature range is 0...70 deg C.

What data logging capability does the VSE100 have?

It has a buffered ring memory holding 881,664 data records and a real-time clock, with an MTTF of 89 years.
