IFM VTV121 - Vibration Transmitter, 0...50 mm/s RMS, 4...20 mA
Shipping calculated at checkout.
In stock

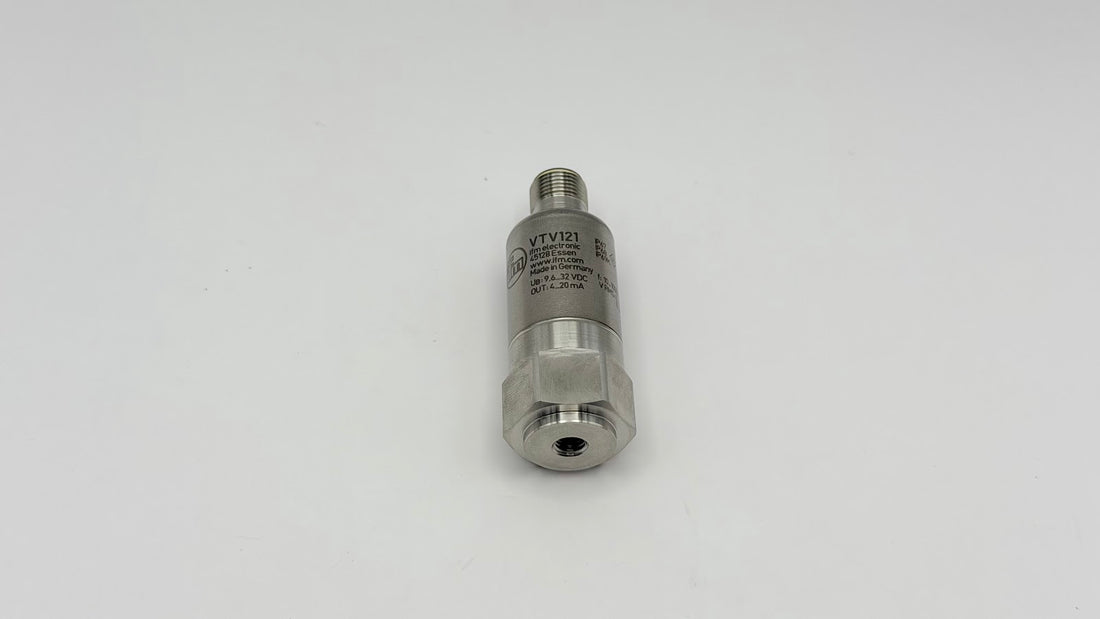

IFM VTV121 Vibration Transmitter — 2-wire MEMS vibration transmitter to ISO 10816 with stainless steel housing. 0...50 mm/s RMS, ISO 10816, 10...1000 Hz, 4...20 mA, 2-wire, 9.6...32 V DC, IP 69K.Shipping & ReturnsSame-day dispatch across UAEOrder before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah,... Read more
Description
IFM VTV121 Vibration Transmitter — 2-wire MEMS vibration transmitter to ISO 10816 with stainless steel housing. 0...50 mm/s RMS, ISO 10816, 10...1000 Hz, 4...20 mA, 2-wire, 9.6...32 V DC, IP 69K.
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: VTV121
Also known as: IFM VTV121 vibration sensor / vibration transmitter / accelerometer.
VTV121 Applications
The VTV121 is a vibration transmitter to ISO 10816 for continuous condition monitoring of rotating machinery such as pumps, fans and motors. Using a MEMS sensing element, it measures effective vibration velocity (RMS) from 0...50 mm/s over a 10...1000 Hz frequency band and outputs a proportional 4...20 mA signal in 2-wire technology. Its rugged 316L stainless steel housing, IP 69K protection and wide -30...125 °C temperature range make it suitable for harsh industrial environments and permanent installation.
VTV121 Specifications
| Brand | IFM | Product Type | Vibration transmitter to ISO 10816. |
| IFM Type Code | VTV121-01 | Measuring range | 0...50 mm/s (RMS) |
| Standard | ISO 10816 | Frequency range | 10...1000 Hz |
| Measured variable | vibration velocity (RMS) | Measuring principle | MEMS |
| Output signal | 4...20 mA (analogue current) | Electrical design | 2-wire |
| Operating voltage | 9.6...32 V DC | Measuring error | < ± 3 % of final value |
| Process connection | set screw 1/4"-28 UNF / M8 x 1.25 mm, tightening torque 8 Nm | Connection | M12 connector, A-coded |
| Housing material | stainless steel (316L / 1.4404) | Protection rating | IP 67 / IP 68 / IP 69K |
| Ambient temperature | -30...125 °C |
VTV121 Datasheet & Manual
Download Datasheet & ManualIFM VTV121 · PDF · Official IFM documentVTV121 – Frequently Asked Questions (FAQ)
What does the IFM VTV121 measure?
The IFM VTV121 measures effective vibration velocity (RMS) to ISO 10816 over a range of 0...50 mm/s, for condition monitoring of rotating machinery.
What is the frequency range of the IFM VTV121?
The IFM VTV121 has a frequency range of 10...1000 Hz.
What output signal does the IFM VTV121 provide?
The IFM VTV121 provides a proportional 4...20 mA analogue current output in 2-wire technology.
What operating voltage does the IFM VTV121 need?
The IFM VTV121 operates on a supply voltage of 9.6...32 V DC.
How is the IFM VTV121 mounted?
The IFM VTV121 is mounted with a set screw (1/4"-28 UNF / M8 x 1.25 mm) at a tightening torque of 8 Nm.
What is the housing material and protection rating of the IFM VTV121?
The IFM VTV121 has a stainless steel (316L / 1.4404) housing rated IP 67, IP 68 and IP 69K.
What is the ambient temperature range of the IFM VTV121?
The IFM VTV121 operates over an ambient temperature range of -30...125 °C.
How accurate is the IFM VTV121?
The IFM VTV121 has a measuring error of less than ± 3 % of the final value, using a MEMS sensing element.
