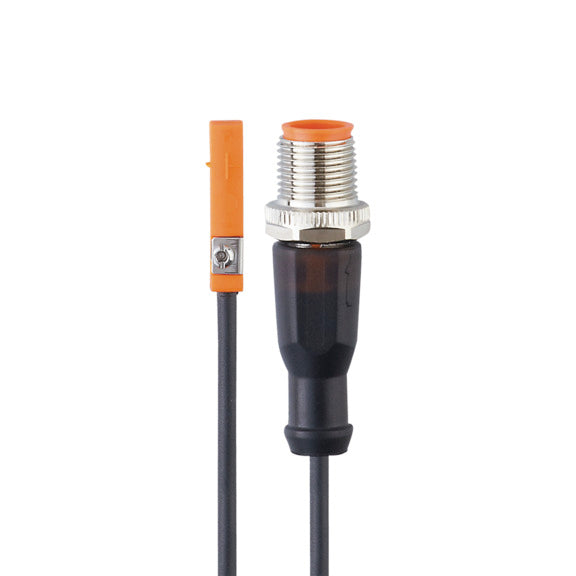

IFM MK5107 - T-Slot Cylinder Sensor, T-Slot Drop-In, 10 kHz

IFM MK5107 - T-Slot Cylinder Sensor, T-Slot Drop-In, 10 kHz

SKUMK5107BrandIFM
AED 234.97
AED 261.08 AED 234.97
Sale Sold out
Shipping calculated at checkout.

Only 6 left

IFM MK5107 T-Slot Cylinder Sensor — magnetic T-slot cylinder sensor, drop-in self-locking, 10 kHz switching, 0.3 m moulded cable. Magnetic T-slot cylinder sensor, PNP N/O, response 2.8 mT, 10000 Hz switching, self-locking clamp, 0.3 m PUR + M12, 10...30 V DC, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: MK5107

MK5107 Applications

The IFM MK5107 is a magnetic cylinder position sensor used for end-position detection on pneumatic cylinders with a T-slot. It is suited for confirming piston position on clamping, gripping and feed cylinders in assembly and handling machinery. It drops into the slot from the top and self-locks for quick mounting and easy adjustment, the moulded cable provides very good strain relief, and a very high 10 kHz switching frequency with fast travel-speed capability suits high-cycle automation. Clearly visible LED shows switching status.

MK5107 Specifications

Brand IFM Product Type T-slot cylinder sensor (magnetic)
IFM Type Code MKT3028BBPKG/G/0,3M/ZH/US Electrical Design PNP
Output Function Normally open Cylinder Type T-slot cylinders
Response Sensitivity 2.8 mT Switching Frequency 10000 Hz
Travel Speed > 10 m/s Repeatability < 0.2 mm
Mounting Self-locking fixture, drop-in from top Operating Voltage 10...30 V DC
Current Consumption < 10 mA Protection Rating IP 65 / IP 67
Ambient Temperature -25...85 °C Electrical Connection 0.3 m PUR cable + M12, A-coded, 4 contacts
Weight 21.1 g

MK5107 Datasheet & Manual

Download Datasheet & ManualIFM MK5107 · PDF · Official IFM document

MK5107 – Frequently Asked Questions (FAQ)

What does the IFM MK5107 detect?

The MK5107 is a magnetic sensor designed for T-slot cylinders, with a response sensitivity of 2.8 mT.

What output does the IFM MK5107 provide?

The MK5107 has a single PNP normally open output, with a permanent current rating of 100 mA and a maximum voltage drop of 2.5 V.

What is the switching frequency of the IFM MK5107?

The MK5107 has a switching frequency of 10000 Hz DC and supports travel speeds exceeding 10 m/s.

What operating voltage and current does the IFM MK5107 use?

The MK5107 runs on 10...30 V DC and consumes less than 10 mA.

What is the housing of the IFM MK5107?

The MK5107 has a PA housing with a stainless steel fastening clamp, measuring 25 x 5 x 6.5 mm, and is flush mountable into a T-slot.

What is the IP rating and operating temperature of the IFM MK5107?

The MK5107 is rated to IP 65 and IP 67, with an operating temperature range of -25...85 degrees C.

How is the IFM MK5107 connected?

The MK5107 connects via a 0.3 m PUR cable to an M12 A-coded connector with 4 contacts and a rotatable knurled nut.

What indicator and protection does the IFM MK5107 have?

The MK5107 has a yellow LED for switching status, plus reverse polarity protection and short-circuit protection (pulsed).

View full details

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

More in Motion Control Sensors

View all 10048

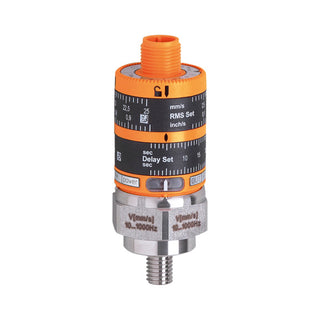

IFM VTV121 - Vibration Transmitter, 0...50 mm/s RMS, 4...20 mA VTV121IFM IFM VTV121 - Vibration Transmitter, 0...50 mm/s RMS, 4...20 mA AED 1,034.00excl. vat IFM VTV122 - Vibration Transmitter, 4...20 mA (2-wire), ISO 10816 VTV122IFM IFM VTV122 - Vibration Transmitter, 4...20 mA (2-wire), ISO 10816 AED 960.00excl. vat IFM VSA001 - Accelerometer (Vibration Sensor), -25...25 g, 1...6000 Hz VSA001IFM IFM VSA001 - Accelerometer (Vibration Sensor), -25...25 g, 1...6000 Hz AED 833.80excl. vat IFM VKV021 - Vibration Monitor, Switching + 4...20 mA, ISO 10816 VKV021IFM IFM VKV021 - Vibration Monitor, Switching + 4...20 mA, ISO 10816 AED 821.13excl. vat IFM DD0203 - Speed Monitor Evaluation Unit, 0.1...1000 Hz, Relay Output DD0203IFM IFM DD0203 - Speed Monitor Evaluation Unit, 0.1...1000 Hz, Relay Ou... AED 946.00excl. vat IFM MK5101 - T-Slot Cylinder Sensor, T-Slot, PNP NO MK5101IFM IFM MK5101 - T-Slot Cylinder Sensor, T-Slot, PNP NO AED 137.00excl. vat IFM VSE100 - Vibration Diagnostic Electronics, 4 Dynamic Inputs, Ethernet VSE100IFM IFM VSE100 - Vibration Diagnostic Electronics, 4 Dynamic Inputs, Et... AED 3,698.80excl. vat IFM EC2082 - Inclination Sensor, Single-Axis ±90°, 4-20 mA EC2082IFM IFM EC2082 - Inclination Sensor, Single-Axis ±90°, 4-20 mA AED 928.59excl. vat
