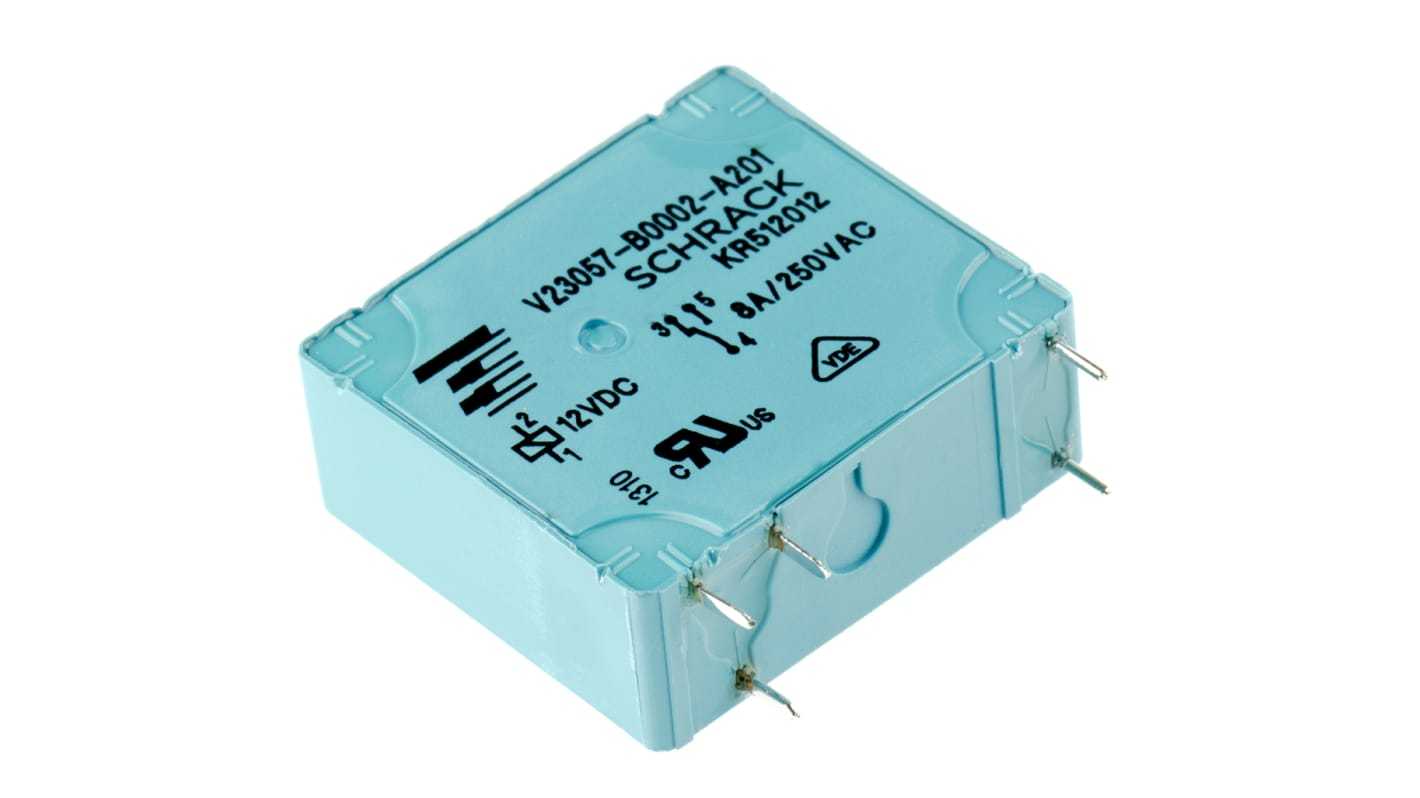

6-1393215-9 - Te-connectivity SPDT Power Relay, 8000 mA (12 VDC)

6-1393215-9 - Te-connectivity SPDT Power Relay, 8000 mA (12 VDC)

SKU6-1393215-9BrandTe-connectivity
AED 107.00
AED 107.00
Sale Sold out
Shipping calculated at checkout.

The 6-1393215-9 is a precision-engineered power relay from Te-connectivity, part of the Card E series. Featuring a SPDT contact configuration rated at 8000 mA switching current, operating on a 12 VDC coil. Its PCB-Pin contacts minimize resistance and arcing, with PCB-Mount installation and PCB-Pin terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Te-connectivity
  • Coil Power: 436 mW
  • Coil Resistance: 330 Ω
  • Coil Voltage: 12 VDC
  • Contact Configuration: SPDT
  • Depth: 10.4 mm
  • Height: 25.1 mm
  • Isolation Coil To Contact: 4 kVrms
  • Latching: No
  • Length: 28 mm
  • Maximum Switching Power AC: 2 kVA
  • Maximum Switching Power DC: 436 mW
  • Maximum Switching Voltage AC: 400 V
  • Mounting Type: PCB-Mount
  • Number of Poles: 1
  • Series: Card E
  • Switching Current: 8000 mA
  • Terminal Type: PCB-Pin
