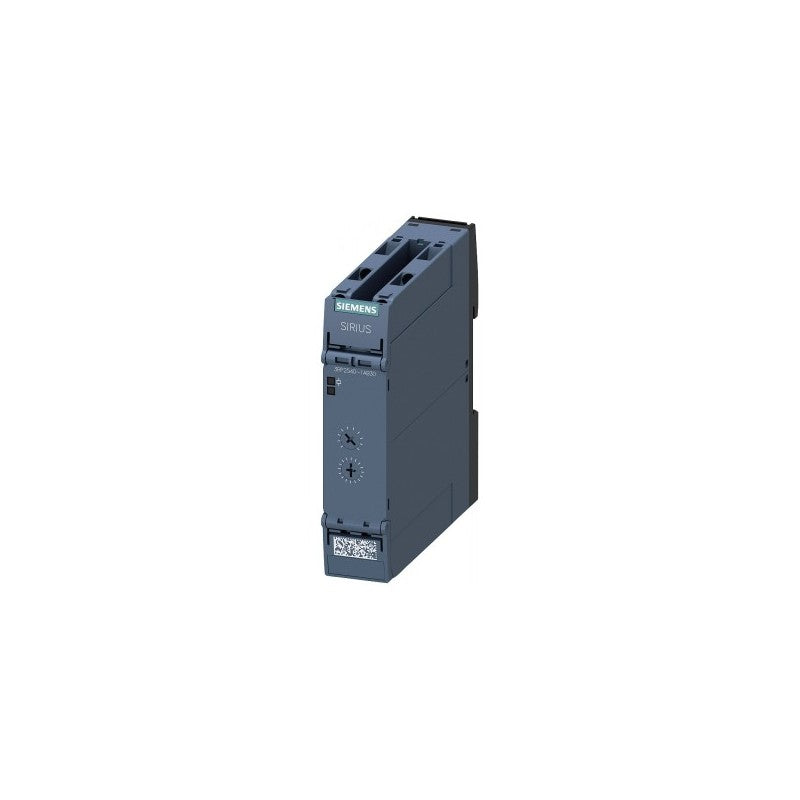

3RP2540-1AB30 - Siemens OFF Delay Timer Relay, 0.05 – 600 s, 1 – 20s 24 V AC/DC (DIN Rail)

3RP2540-1AB30 - Siemens OFF Delay Timer Relay, 0.05 – 600 s, 1 – 20s 24 V AC/DC (DIN Rail)

SKU3RP2540-1AB30BrandSiemens
AED 721.00
AED 721.00
Sale Sold out
Shipping calculated at checkout.

The 3RP2540-1AB30 is a versatile timer relay manufactured by Siemens, part of the 3RP25 series. Featuring OFF Delay timing mode with a configurable time range of 0.05 – 600 s, 1 – 20s across Seconds increments, this timer relay operates on a 24 V AC/DC supply voltage. It provides SPDT output contacts rated for 3 A at 24 V AC/DC, with Screw termination and DIN Rail installation. With single timer, a External power supply configuration, it delivers precise, repeatable time control for industrial automation sequences, motor starting, lighting control, HVAC scheduling, and process timing applications.

View full details
ParameterValue
Supply Voltage
24 V AC/DC
Mounting Type
DIN-Rail
Mode of Operation
OFF-Delay
Time Range
0.05 to 600 s, 1 to 20 s
Number of Contacts
1
Number of Timer Functions
Single
Contact Configuration
SPDT
Time Increment
seconds
Maximum Current
3 A
Maximum Voltage
24 V AC/DC
Terminal Type
Screw
ParameterValue
Switch Configuration
SPDT
Width
91.6 mm
Power Supply
External
Minimum Current
10 mA
Series
3RP25
Depth
100 mm
Maximum Operating Temperature
60 °C
Length
22.5 mm
Minimum Operating Temperature
-25 °C
Contact Material
Silver-Tin-Oxide
