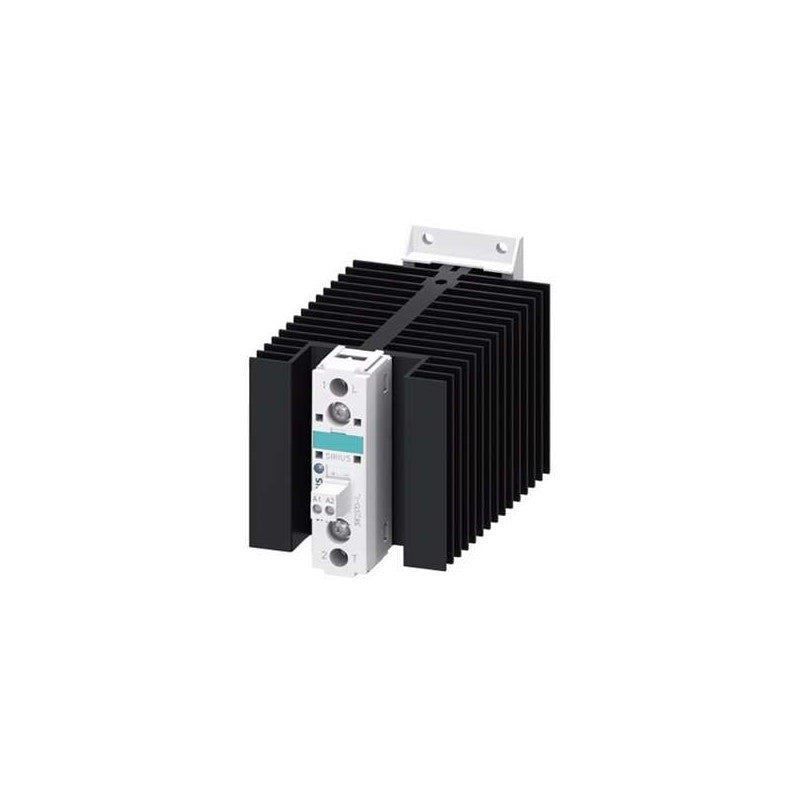

3RF2370-1BA04 - Siemens Solid-State Relay, 70000 mA 460 VAC (DIN-Rail)

3RF2370-1BA04 - Siemens Solid-State Relay, 70000 mA 460 VAC (DIN-Rail)

SKU3RF2370-1BA04BrandSiemens
AED 332.00
AED 332.00
Sale Sold out
Shipping calculated at checkout.

The 3RF2370-1BA04 is a dependable solid state relay from Siemens, part of the 3RF2 series. Rated for a maximum load of 70000 mA at 460 VAC with Instantaneous switching, controlled by 15 VDC to 24 VDC input. This DIN-Rail relay uses Thyristor output, providing millions of silent, maintenance-free switching cycles for heaters, motors, and process control loads.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Siemens
  • Maximum Load Current: 70000 mA
  • Mounting Type: DIN-Rail
  • Maximum Load Voltage: 460 VAC
  • Minimum Load Voltage: 48 VAC
  • Minimum Control Voltage: 15 VDC
  • Maximum Control Voltage: 24 VDC
  • Switching Type: Instantaneous
  • Control Voltage Range: 15–24 VDC
  • Range: SIRIUS 3RF
  • Minimum Load Current: 500 mA
  • Contact Configuration: SPST
  • Terminal Type: Screw
  • Output Device: Thyristor
  • Maximum Turn On Time: 1/2 cycle + 1 ms
  • Series: 3RF2
  • Load Voltage Range: 48–460 V
  • Dimensions: 135 x 157.5 x 100 mm
  • Height: 100 mm
  • Off State Leakage Current: 10 mA
  • Length: 135 mm
  • Operating Temperature Range: -25–60 °C
  • Minimum Operating Temperature: -25 °C
  • Maximum Operating Temperature: 60 °C
  • Depth: 157.5 mm
