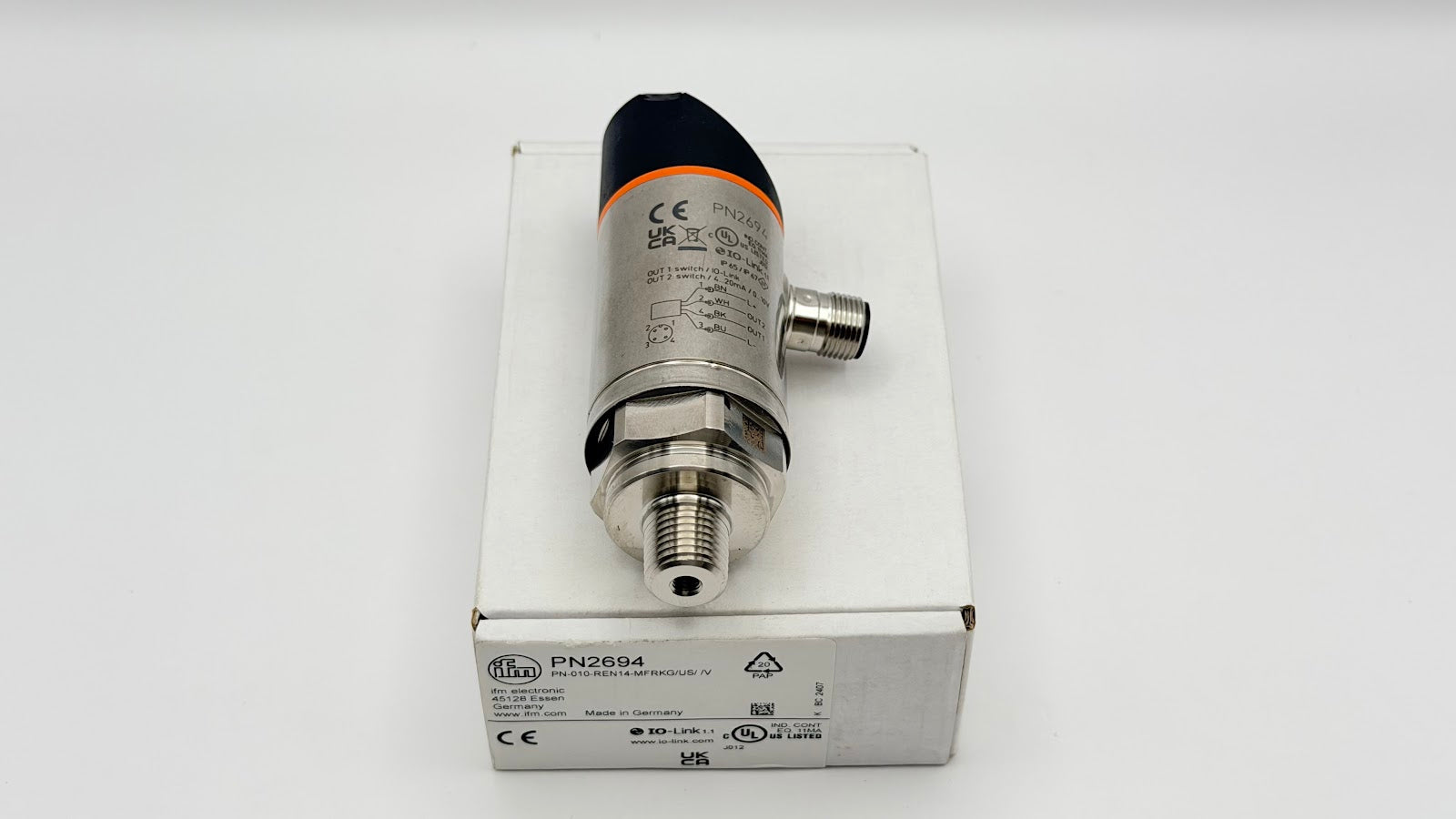

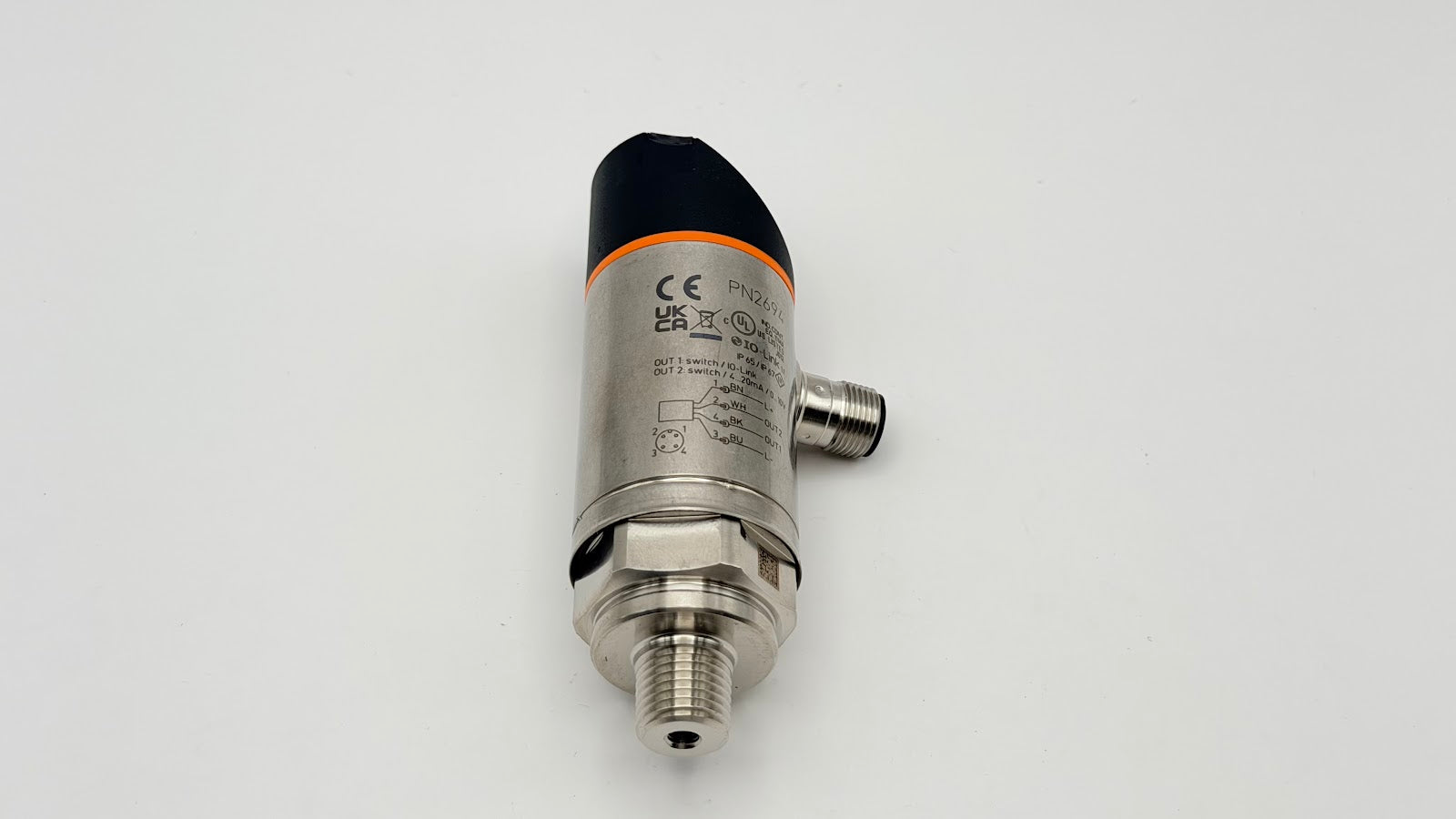

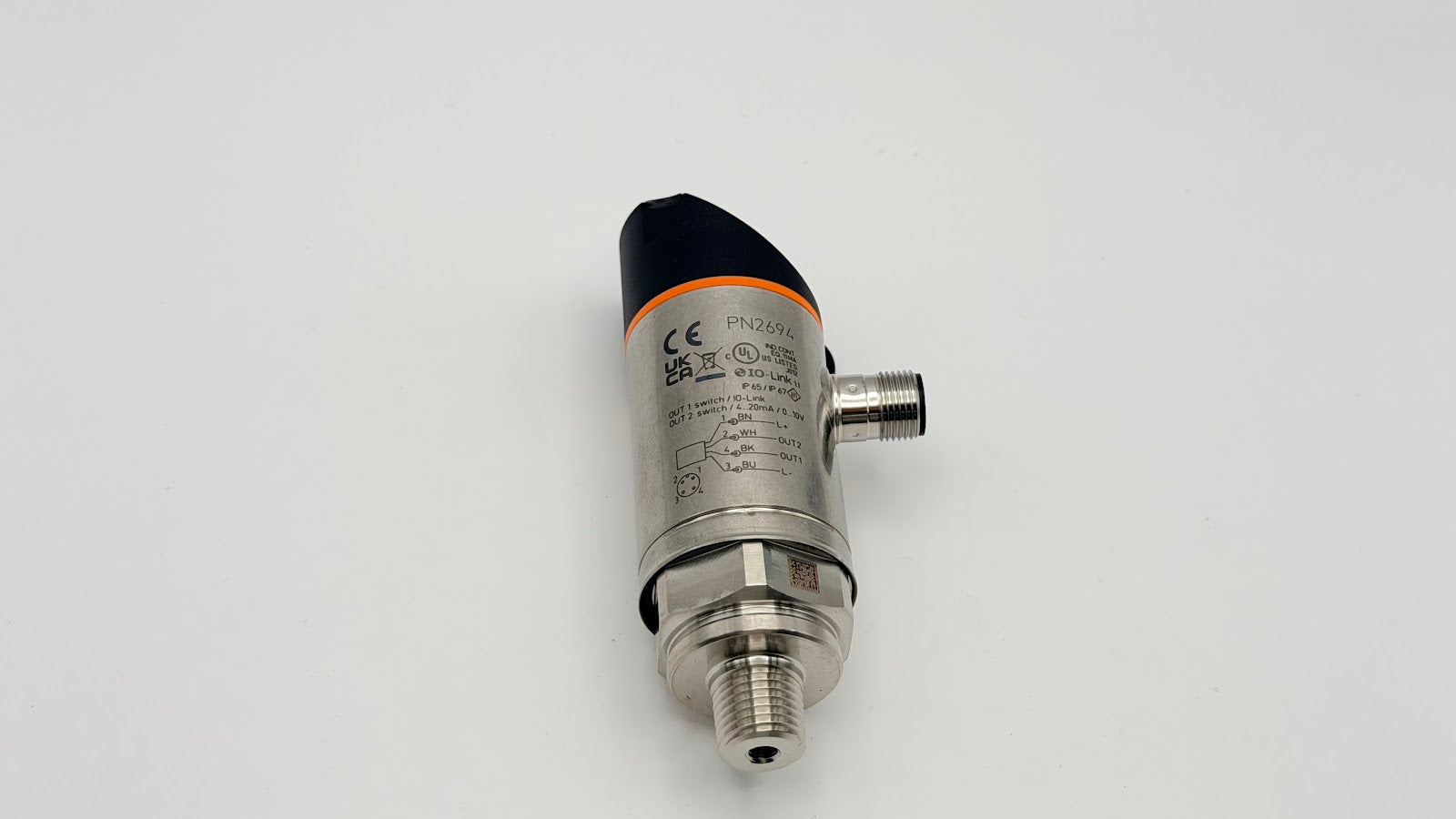

IFM PN2694 - Pressure Sensor with Display, -1...10 bar, 1/4" NPT External

Q: What is the measuring range and overload rating of the PN2694?

The PN2694 measures -1...10 bar (-14.6...145 psi), with a permissible overpressure of 75 bar and a bursting pressure of 150 bar.

Q: What measuring element does the PN2694 use and what media can it monitor?

It uses a ceramic-capacitive measuring cell and is suitable for liquids and gases in industrial applications.

Q: How accurate is the PN2694?

The switch-point setting accuracy is < ± 0.4 % of the span.

Q: What outputs does the PN2694 provide?

Two configurable switching outputs plus one analogue output selectable as 4...20 mA or 0...10 V and scalable 1:5.

Q: Does the PN2694 support IO-Link and how fast does it respond?

Yes, it supports IO-Link COM2 (revision 1.1) and has a response time of < 1.5 ms.

Q: What is the PN2694 operating voltage and protection?

It operates on 18...30 V DC, draws < 35 mA, and includes short-circuit and reverse-polarity protection.

Q: What materials contact the medium and what is the IP rating?

Wetted parts are stainless steel (316L / 1.4404), Al2O3 ceramics and FKM; enclosure protection is IP 65 / IP 67.

Q: What is the process connection and display of the PN2694?

A 1/4" NPT external thread with an M12 connector and a rotatable 4-digit red/green alphanumeric display.

SKUPN2694BrandIFM

AED 2,328.00

Sale Sold out

Shipping calculated at checkout.

Only 6 left

Quantity

IFM PN2694 Pressure Sensor with Display — -1...10 bar range with a 1/4" NPT external thread, ceramic-capacitive cell and 2 switching + 1 analogue outputs plus IO-Link. -1...10 bar, 1/4" NPT external, ceramic-capacitive, 2 switching + 1 analogue (4...20 mA / 0...10 V), IO-Link, 18...30 V DC, IP 65 / IP 67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: PN2694

Also known as: IFM PN2694 pressure sensor / pressure transmitter / pressure switch.

PN2694 Applications

The IFM PN2694 electronic pressure sensor monitors the system pressure of liquids and gases over a -1...10 bar range with a ceramic-capacitive measuring cell and high overload strength (75 bar). Two configurable switching outputs plus one scalable analogue output (4...20 mA or 0...10 V) allow direct switching and continuous signal transmission, while IO-Link enables digital parameter setting, diagnostics and process-value transmission. A rotatable 4-digit red/green display shows the process value, suiting industrial machinery and plant.

PN2694 Specifications

Brand	IFM	Product Type	Pressure sensor with display
IFM Type Code	PN-010-REN14-MFRKG/US/ /V	Measuring range	-1...10 bar / -14.6...145 psi
Permissible overpressure	75 bar	Bursting pressure (min.)	150 bar
Measuring element	ceramic-capacitive measuring cell	Process connection	1/4" NPT external thread
Output function	2 x switching; 1 x analogue (configurable)	Analogue output	4...20 mA / 0...10 V (scalable 1:5)
Accuracy / switch point	< ± 0.4 % span	Communication	IO-Link COM2, revision 1.1
Response time	< 1.5 ms	Operating voltage	18...30 V DC
Current consumption	< 35 mA	Medium / ambient temperature	-25...80 °C / -25...80 °C
Wetted materials	stainless steel (316L / 1.4404); Al2O3 ceramics; FKM	Electrical connection / protection	M12 connector; IP 65 / IP 67
