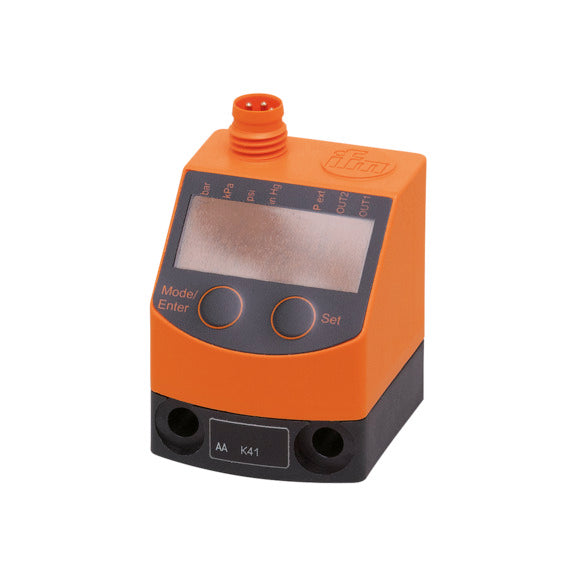

IFM PQ7834 - Pressure Sensor for Pneumatics, -1...10 bar, G1/8 Pneumatics

SKUPQ7834BrandIFM

AED 613.97

~~AED 682.20~~ AED 613.97

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM PQ7834 Pressure Sensor for Pneumatics — -1...10 bar pneumatics sensor with red/green display, 2 PNP outputs, G1/8, M8 connector. pressure sensor for pneumatics and compressed-air systems, range -1...10 bar, ceramic/relative measurement, red/green slanted display, 2 PNP switching outputs (one configurable as diagnostic), G1/8 internal thread, M8 connector, IP65.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: PQ7834

Also known as: IFM PQ7834 pressure sensor / pressure transmitter / pressure switch.

PQ7834 Applications

The IFM PQ7834 pressure sensor monitors system pressure in pneumatic and compressed-air applications from -1 to 10 bar, with high overpressure and vacuum resistance. Its slanted red/green display gives clear local indication and two PNP outputs support switching plus diagnostics. Note this article is an archive entry superseded by PQS812; verify availability before ordering.

PQ7834 Specifications

Brand	IFM	Product Type	Pressure sensor for pneumatics
Product type code	PQ-010-RHR18-QFPKG/AS/	Measuring range	-1...10 bar (-15...145 psi)
Media	Compressed air	Type of pressure	Relative pressure; vacuum
Outputs	2 x PNP switching (1 diagnostic)	Process connection	G 1/8 internal thread
Operating voltage	18...32 V DC	Display	Red/green 4-digit
Protection	IP 65	Note	Archive article - successor PQS812
Weight	84.5 g	Electrical connection	M8 connector, A-coded

PQ7834 Datasheet & Manual

Download Datasheet & ManualIFM PQ7834 · PDF · Official IFM document

PQ7834 – Frequently Asked Questions (FAQ)

What is the measuring range of the IFM PQ7834 pressure sensor?

The PQ7834 measures -1...10 bar (-100...1000 kPa) relative pressure and vacuum, with a minimum burst pressure of 30 bar (3000 kPa).

What medium is the PQ7834 designed for?

The PQ7834 is designed for compressed air, with other media available on request.

How accurate is the PQ7834 and how fast does it respond?

The PQ7834 has a setpoint accuracy of less than +/-0.5 percent of span, repeatability of less than +/-0.1 percent of span, and a response time of less than 2.5 ms.

What outputs does the PQ7834 provide?

The PQ7834 has two PNP digital switching outputs, programmable normally open / normally closed, rated at max 100 mA each with a 2 V max voltage drop.

What is the operating voltage and current consumption of the PQ7834?

The PQ7834 operates on 18...32 V DC (SELV/PELV) and draws less than 50 mA.

What is the process and electrical connection of the PQ7834?

The PQ7834 has a G 1/8 internal thread process connection and a single M8 A-coded connector with gold-plated contacts.

What materials and protection rating does the PQ7834 have?

The PQ7834 has a PBT, FKM, and polyester housing with brass, FKM, coated silicon, and PBT wetted parts, and is rated IP 65.

What temperature ranges and display does the PQ7834 have?

The PQ7834 has an operating temperature of 0...70 degrees C, a medium temperature of 0...60 degrees C, and a 4-digit alphanumeric display with status LEDs.
