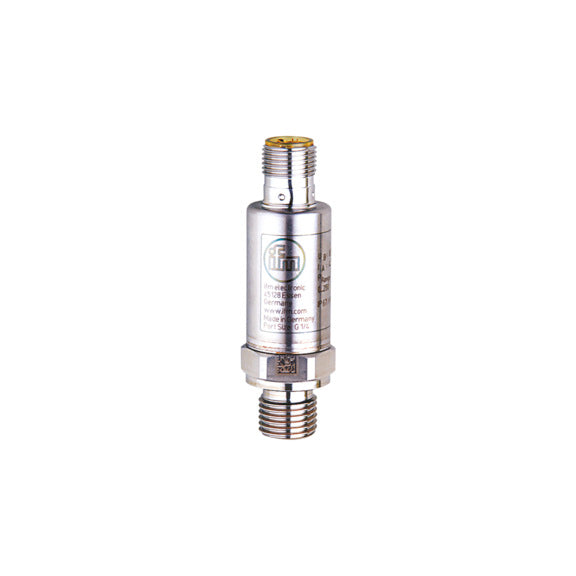

IFM PT5500 - Pressure Transmitter, 0...400 bar, 4...20 mA

Q: What output does the IFM PT5500 provide?

The IFM PT5500 provides one analogue output of 4...20 mA. The maximum load is (Ub - 8 V) / 21.5 mA and the output is short-circuit proof.

Q: What supply voltage and protections does the IFM PT5500 have?

The IFM PT5500 operates on 8...32 V DC and includes reverse polarity protection, overload protection, and short-circuit protection.

Q: What materials are used in the IFM PT5500 housing and wetted parts?

The IFM PT5500 housing is made of stainless steel (630/1.4542/17-4 PH), stainless steel (316L/1.4404) and PEI, with wetted parts in stainless steel (630/1.4542/17-4 PH).

Q: What is the IP rating and temperature range of the IFM PT5500?

The IFM PT5500 is rated IP 67 and IP 69K. It has an ambient temperature range of -40...100 deg C and a medium temperature range of -40...125 deg C.

Q: What are the process and electrical connections on the IFM PT5500?

The IFM PT5500 has a G 1/4 external thread process connection (DIN EN ISO 1179-2) and an M12 A-coded electrical connector with 2 contacts.

SKUPT5500BrandIFM

AED 622.38

~~AED 691.53~~ AED 622.38

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM PT5500 Pressure Transmitter — 0...400 bar high-pressure transmitter for mobile machines, 4...20 mA, G1/4, 500 g shock. pressure transmitter for mobile machines, range 0...400 bar, 4...20 mA analog output, G1/4 external thread, 8...32 V DC, very high shock (500 g) and vibration resistance, > 60 million pressure cycles, stainless steel, IP69K.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: PT5500

Also known as: IFM PT5500 pressure sensor / pressure switch.

PT5500 Applications

The IFM PT5500 pressure transmitter measures system pressure up to 400 bar on mobile and hydraulic machines, delivering a 4...20 mA signal to controllers. Built for vehicles with 500 g shock resistance, a wide -40...125 C medium range and a life beyond 60 million cycles, its compact stainless housing fits tight power-unit and hydraulic installations.

PT5500 Specifications

Brand	IFM	Product Type	Pressure transmitter (mobile)
Product type code	PT-400-SEG14-A-ZVG/US	Measuring range	0...400 bar (0...5800 psi)
Type of pressure	Relative pressure	Output	Analog 4...20 mA
Process connection	G 1/4 external thread	Operating voltage	8...32 V DC
Medium temperature	-40...125 C	Shock resistance	500 g (1 ms)
Pressure cycles	> 60 million	Protection	IP 67; IP 69K
Weight	59 g	Electrical connection	M12 connector, A-coded, 2 contacts

PT5500 Datasheet & Manual

Download Datasheet & ManualIFM PT5500 · PDF · Official IFM document

PT5500 – Frequently Asked Questions (FAQ)

What pressure range does the IFM PT5500 measure?

The IFM PT5500 measures relative pressure over a range of 0...400 bar (0...5800 psi / 0...40 MPa). It has an overpressure rating of 1000 bar and a burst pressure of 1700 bar.

What media can the IFM PT5500 be used with?

The IFM PT5500 is a relative pressure transmitter suitable for liquids and gases.

How accurate and fast is the IFM PT5500?

The IFM PT5500 has a repeatability of < +/- 0.05 % of span (with temperature fluctuations < 10 K), a characteristics deviation of < +/- 0.8 % of span, and linearity of < +/- 0.25 % (BFSL) / < +/- 0.5 % (LS). Its response time is 2 ms.

What output does the IFM PT5500 provide?

The IFM PT5500 provides one analogue output of 4...20 mA. The maximum load is (Ub - 8 V) / 21.5 mA and the output is short-circuit proof.

What supply voltage and protections does the IFM PT5500 have?

The IFM PT5500 operates on 8...32 V DC and includes reverse polarity protection, overload protection, and short-circuit protection.

What materials are used in the IFM PT5500 housing and wetted parts?

The IFM PT5500 housing is made of stainless steel (630/1.4542/17-4 PH), stainless steel (316L/1.4404) and PEI, with wetted parts in stainless steel (630/1.4542/17-4 PH).

What is the IP rating and temperature range of the IFM PT5500?

The IFM PT5500 is rated IP 67 and IP 69K. It has an ambient temperature range of -40...100 deg C and a medium temperature range of -40...125 deg C.

What are the process and electrical connections on the IFM PT5500?

The IFM PT5500 has a G 1/4 external thread process connection (DIN EN ISO 1179-2) and an M12 A-coded electrical connector with 2 contacts.
