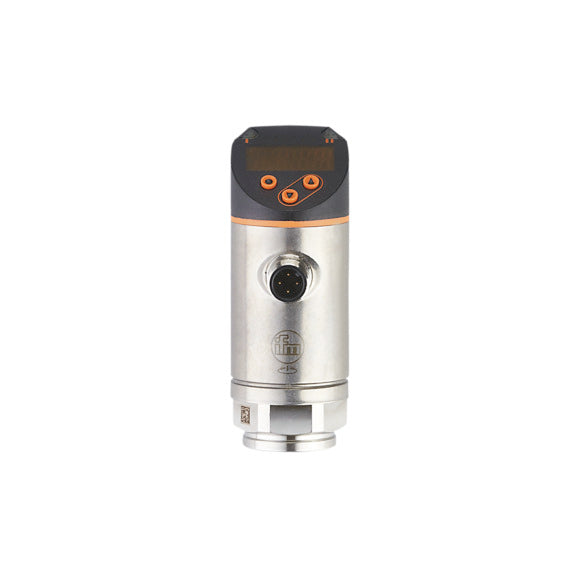

IFM PN7094 - Pressure Sensor with Display, -1...10 bar, IO-Link

SKUPN7094BrandIFM

AED 1,095.32

~~AED 1,217.03~~ AED 1,095.32

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM PN7094 Pressure Sensor with Display — -1...10 bar range with red/green display, 2 outputs one with IO-Link, ceramic-capacitive cell and G 1/4 internal thread. relative pressure sensor -1...10 bar with red/green 4-digit display, ceramic-capacitive measuring cell, 2 switching outputs (one with IO-Link), G 1/4 internal thread, 18...30 V DC, high overload protection, IP65/IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: PN7094

Also known as: IFM PN7094 pressure sensor / pressure transmitter / pressure switch.

PN7094 Applications

The IFM PN7094 pressure sensor with display monitors relative pressure and vacuum from -1 to 10 bar in hydraulic, pneumatic and general process systems. Its ceramic-capacitive cell offers high overload protection and long-term stability, while the rotatable red/green display gives clear local indication. Two outputs, one with IO-Link, support switching plus continuous measurement for pumps, presses and machine pressure control.

PN7094 Specifications

Brand	IFM	Product Type	Pressure sensor with display
Product type code	PN-010-RER14-QFRKG/US/ /V	Measuring range	-1...10 bar (-14.5...145 psi)
Measuring element	Ceramic-capacitive cell	Type of pressure	Relative pressure; vacuum
Outputs	2 x switching (PNP/NPN); IO-Link	Process connection	G 1/4 internal thread
Operating voltage	18...30 V DC	Medium temperature	-25...80 °C
Min. burst pressure	150 bar	Display	Red/green 4-digit alphanumeric
Protection	IP 65; IP 67	Weight	241.7 g
Electrical connection	M12 connector, A-coded, 4 contacts (gold-plated)

PN7094 Datasheet & Manual

Download Datasheet & ManualIFM PN7094 · PDF · Official IFM document

PN7094 – Frequently Asked Questions (FAQ)

What is the measuring range of the IFM PN7094 pressure sensor?

The IFM PN7094 measures -1...10 bar (-14.5...145 psi / -0.1...1 MPa).

What is the burst pressure of the IFM PN7094?

The IFM PN7094 has a minimum burst pressure of 150 bar (2175 psi / 15 MPa).

What outputs does the IFM PN7094 provide?

The IFM PN7094 has 2 digital outputs, PNP/NPN electrical design, with a permanent current rating of 150 mA DC per switching output.

Does the IFM PN7094 support IO-Link?

Yes, the IFM PN7094 supports IO-Link revision 1.1 with COM2 (38.4 kBaud) transmission.

How accurate is the IFM PN7094?

The IFM PN7094 has a switch point accuracy of less than +/- 0.5 % of span, repeatability of less than +/- 0.1 % of span, and a response time of less than 3 ms.

What is the operating voltage and current consumption of the IFM PN7094?

The IFM PN7094 operates on 18...30 V DC and draws less than 35 mA.

What display does the IFM PN7094 have?

The IFM PN7094 has a 4-digit alphanumeric red/green display, and the upper part of the housing can be rotated 345 degrees.

What are the wetted materials and process connection of the IFM PN7094?

The IFM PN7094 uses wetted parts of stainless steel (316L/1.4404), ceramics and FKM, with a G 1/4 internal thread process connection and an M12 A-coded 4-contact gold-plated connector.
