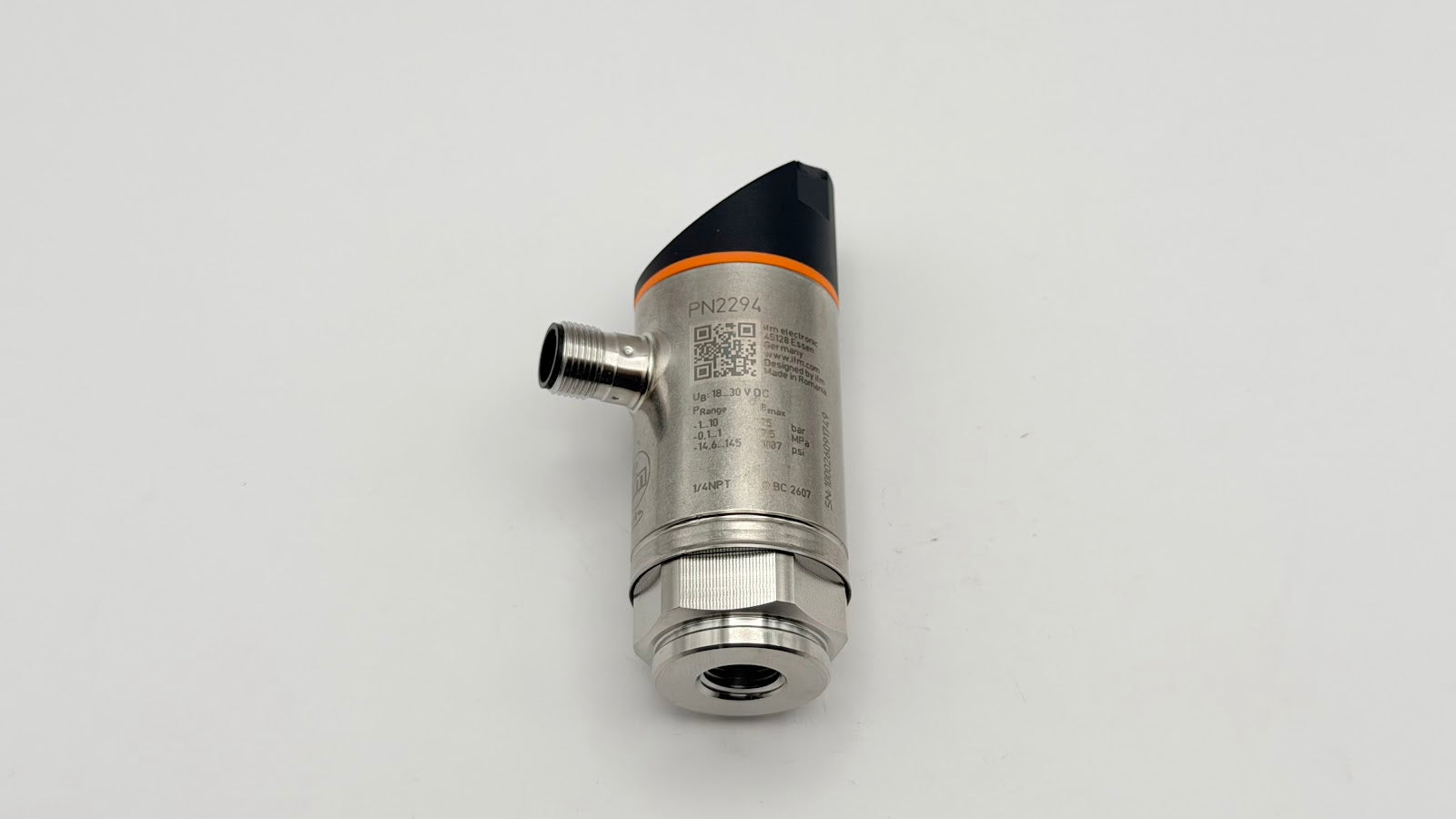

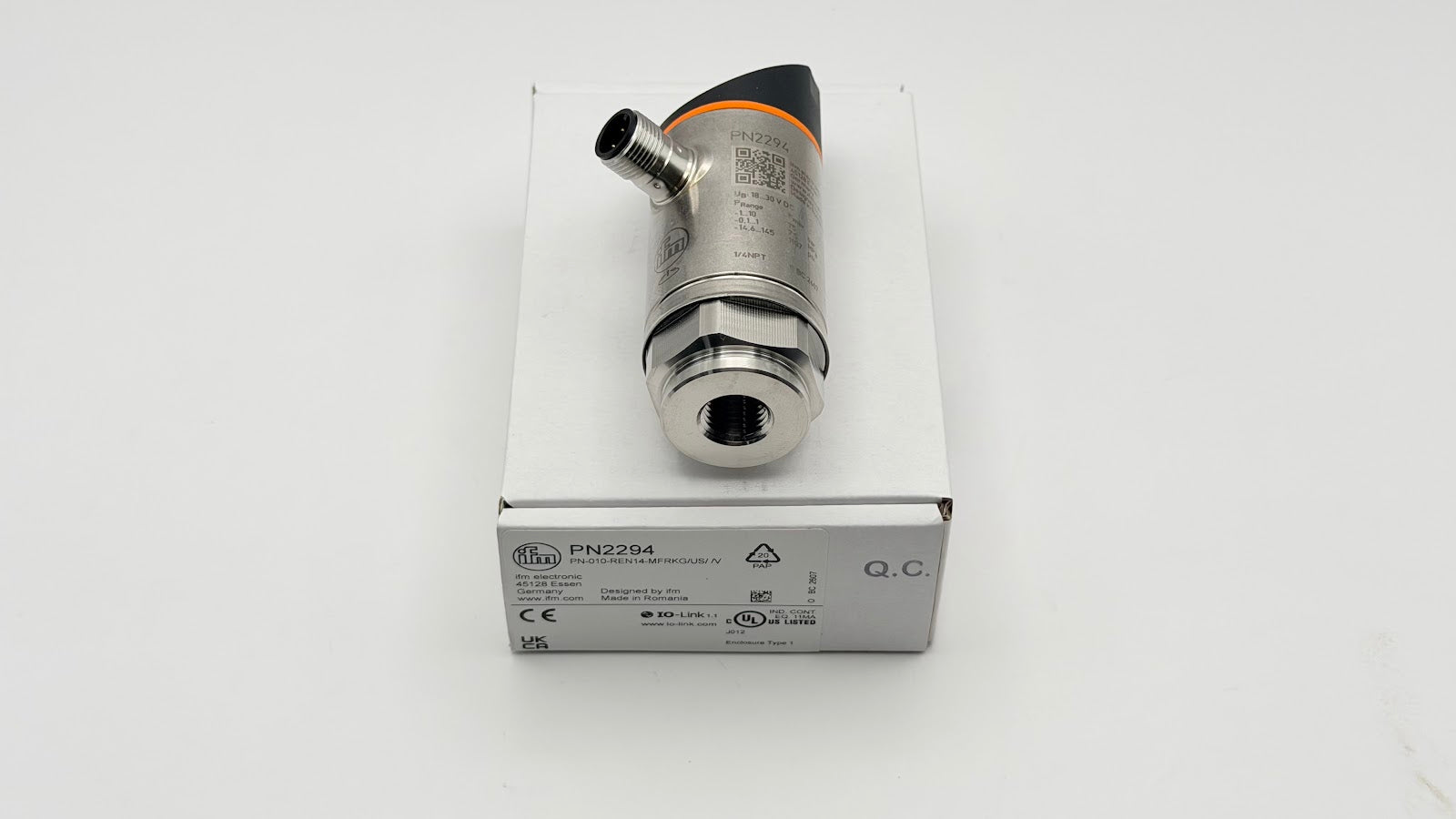

IFM PN2294 Pressure Sensor with Display — -1...10 bar compound range with a 1/4" NPT internal thread, ceramic-capacitive cell and 2 switching + 1 analogue outputs plus IO-Link. -1...10 bar, 1/4" NPT internal, ceramic-capacitive, 2 switching + 1 analogue (4...20 mA / 0...10 V), IO-Link, 18...30 V DC, IP 65 / IP 67.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: PN2294
Also known as: IFM PN2294 pressure sensor / pressure transmitter / pressure switch.
PN2294 Applications
The IFM PN2294 electronic pressure sensor monitors the system pressure of gases and liquids from -1 to 10 bar (compound/vacuum range) using a rugged ceramic-capacitive measuring cell. It provides two switching outputs and one analogue output (4...20 mA / 0...10 V), plus IO-Link COM2 for digital communication and remote parameter setting. A rotatable 4-digit alphanumeric display with alternating red/green indication shows the process value and switching status, suiting hydraulic, pneumatic and machine-building applications.
What pressure range and overload does the PN2294 measure?
It measures a compound range of -1...10 bar (-0.1...1 MPa / -14.6...145 psi), with permissible overpressure of 75 bar and a minimum bursting pressure of 150 bar.
What measuring element and media does the PN2294 use?
The PN2294 uses a ceramic-capacitive measuring cell to monitor the pressure of gases and liquids.
How accurate and repeatable is the PN2294?
Switch-point accuracy is < ± 0.4 % of span and repeatability is < ± 0.1 % of span.
What outputs does the PN2294 provide?
Two switching outputs and one analogue output (4...20 mA / 0...10 V), configurable as PNP or NPN, plus IO-Link.
Does the PN2294 support IO-Link?
Yes, it is an IO-Link device (transfer type COM2, revision 1.1) for digital process data and parameter setting.
What supply voltage and current does the PN2294 need?
It operates on 18...30 V DC with a current consumption of < 35 mA.
What are the wetted materials and IP rating of the PN2294?
Wetted parts are stainless steel (316L / 1.4404), Al2O3 ceramics and FKM; protection rating is IP 65 / IP 67.
What process connection and display does the PN2294 have?
A 1/4" NPT internal thread with an M12 connector, and a rotatable 4-digit alphanumeric display with alternating red/green indication.
