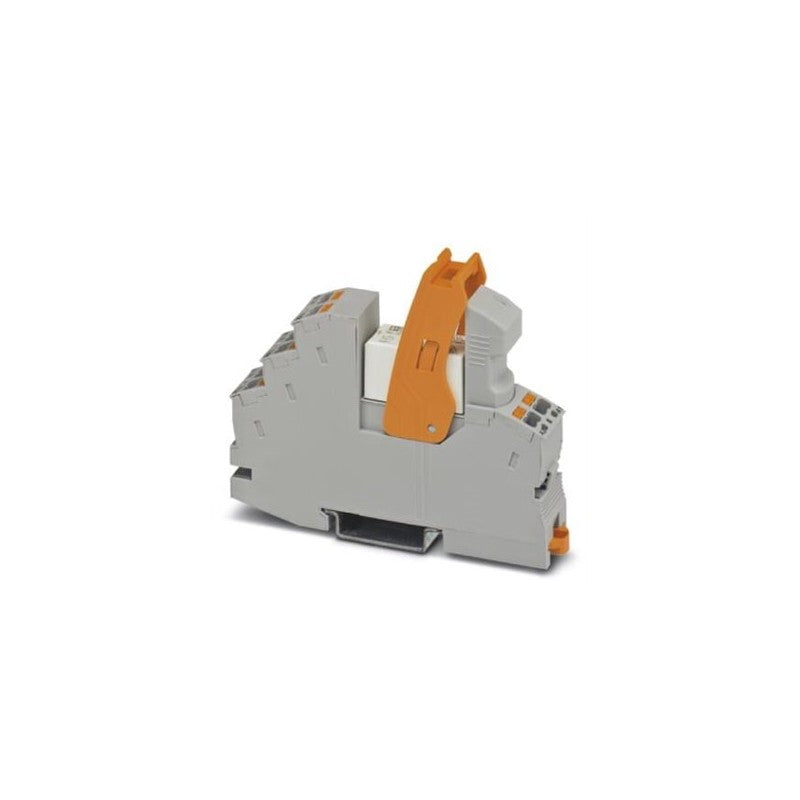

2903341 - Phoenix-contact SPDT Power Relay, 10000 mA (24 VAC)

2903341 - Phoenix-contact SPDT Power Relay, 10000 mA (24 VAC)

SKU2903341BrandPhoenix-contact
AED 52.00
AED 52.00
Sale Sold out
Shipping calculated at checkout.

The 2903341 is a precision-engineered power relay from Phoenix-contact, part of the RIF-1-RPT-LV-24AC/1X21 series. Featuring a SPDT contact configuration rated at 10000 mA switching current, operating on a 24 VAC coil. Its Silver Alloy contacts minimize resistance and arcing, with DIN-Rail installation and Plug-In terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Phoenix-contact
  • Application: Power
  • Coil Resistance: 350 Ω
  • Coil Voltage: 24 VAC
  • Contact Configuration: SPDT
  • Contact Material: Silver Alloy
  • Depth: 75 mm
  • Dimensions: 16 x 93 x 75 mm
  • Height: 93 mm
  • Latching: No
  • Length: 16 mm
  • Life: 10000000 (Mechanical) cycles
  • Maximum Operating Temperature: 50 °C
  • Maximum Switching Power AC: 2.5 kVA
  • Maximum Switching Power DC: 240 W
  • Maximum Switching Voltage AC: 250 VAC
  • Maximum Switching Voltage DC: 250 VDC
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: DIN-Rail
  • Number of Poles: 1
  • Series: RIF-1-RPT-LV-24AC/1X21
  • Standards Met: IEC
  • Switching Current: 10000 mA
  • Terminal Type: Plug-In
  • Width: 16 mm
