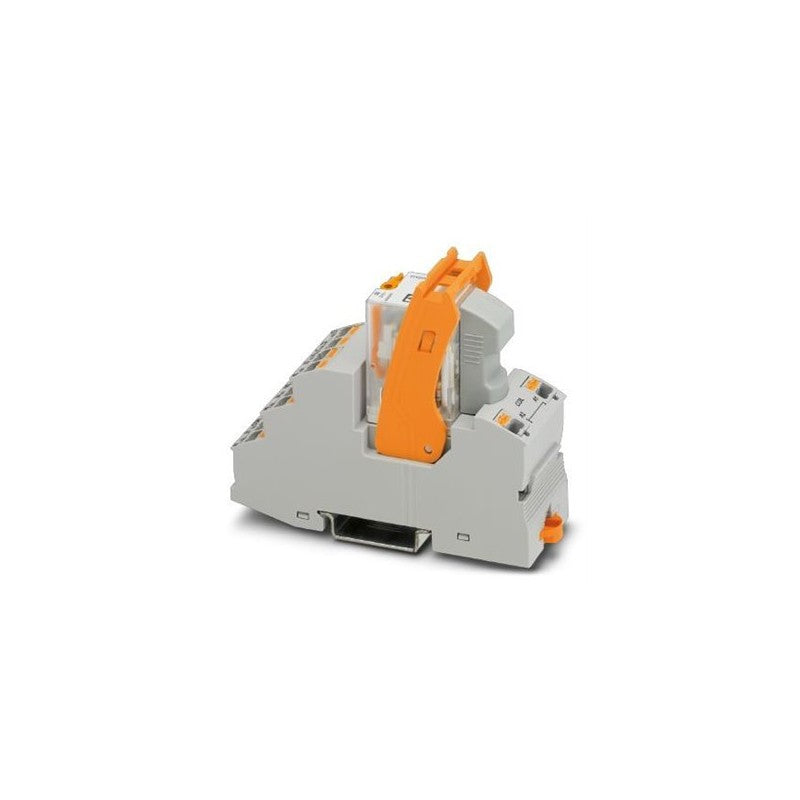

2903313 - Phoenix-contact DPDT Power Relay, 8500 mA (24 VAC)

2903313 - Phoenix-contact DPDT Power Relay, 8500 mA (24 VAC)

SKU2903313BrandPhoenix-contact
AED 66.00
AED 66.00
Sale Sold out
Shipping calculated at checkout.

The 2903313 is a precision-engineered power relay from Phoenix-contact, part of the RIF-2-RPT-LV-24AC/2X21 series. Featuring a DPDT contact configuration rated at 8500 mA switching current, operating on a 24 VAC coil. Its Silver Alloy contacts minimize resistance and arcing, with DIN-Rail installation and Plug-In terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Phoenix-contact
  • Application: Power
  • Coil Resistance: 158 Ω
  • Coil Voltage: 24 VAC
  • Contact Configuration: DPDT
  • Contact Material: Silver Alloy
  • Depth: 90 mm
  • Height: 111 mm
  • Latching: No
  • Length: 43 mm
  • Life: 10000000 (Mechanical) cycles
  • Maximum Operating Temperature: 60 °C
  • Maximum Switching Power AC: 4 kVA
  • Maximum Switching Power DC: 660 W
  • Maximum Switching Voltage: 440 VAC
  • Maximum Switching Voltage: 250 VDC
  • Maximum Switching Voltage AC: 440 VAC
  • Maximum Switching Voltage DC: 250 VDC
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: DIN-Rail
  • Number of Poles: 2
  • Series: RIF-2-RPT-LV-24AC/2X21
  • Switching Current: 8500 mA
  • Terminal Type: Plug-In
