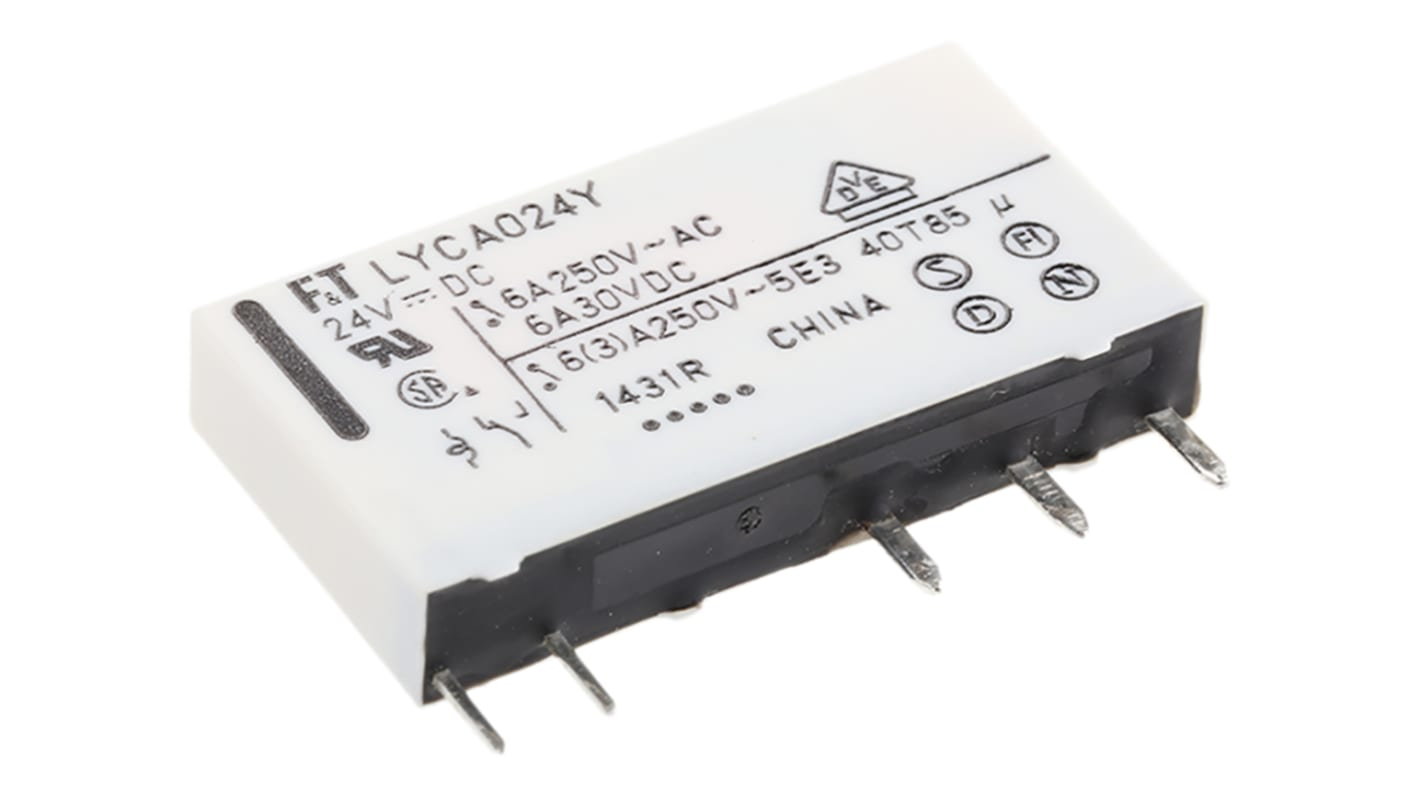

FTR-LYCA024Y - Fujitsu SPDT Power Relay, 6000 mA (24 VDC)

FTR-LYCA024Y - Fujitsu SPDT Power Relay, 6000 mA (24 VDC)

SKUFTR-LYCA024YBrandFujitsu
AED 14.00
AED 14.00
Sale Sold out
Shipping calculated at checkout.

The FTR-LYCA024Y is a precision-engineered power relay from Fujitsu, part of the SPDT series. Featuring a SPDT contact configuration rated at 6000 mA switching current, operating on a 24 VDC coil. Its Silver Alloy contacts minimize resistance and arcing, with PCB-Mount installation and PCB-Pin terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Fujitsu
  • Application: Power
  • Coil Power: 170 mW
  • Coil Resistance: 3390 Ω
  • Coil Voltage: 24 VDC
  • Contact Configuration: SPDT
  • Contact Material: Silver Alloy
  • Depth: 5 mm
  • Height: 15 mm
  • Isolation Coil To Contact: 6 kV
  • Latching: No
  • Length: 28 mm
  • Life: 50 x 10³ Operations
  • Maximum Operating Temperature: 85 °C
  • Maximum Switching Power AC: 1.5 kVA
  • Maximum Switching Power DC: 144 W
  • Maximum Switching Voltage: 250 VAC
  • Maximum Switching Voltage AC: 250 VAC
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: PCB-Mount
  • Number of Poles: 1
  • Switching Current: 6000 mA
  • Terminal Type: PCB-Pin
