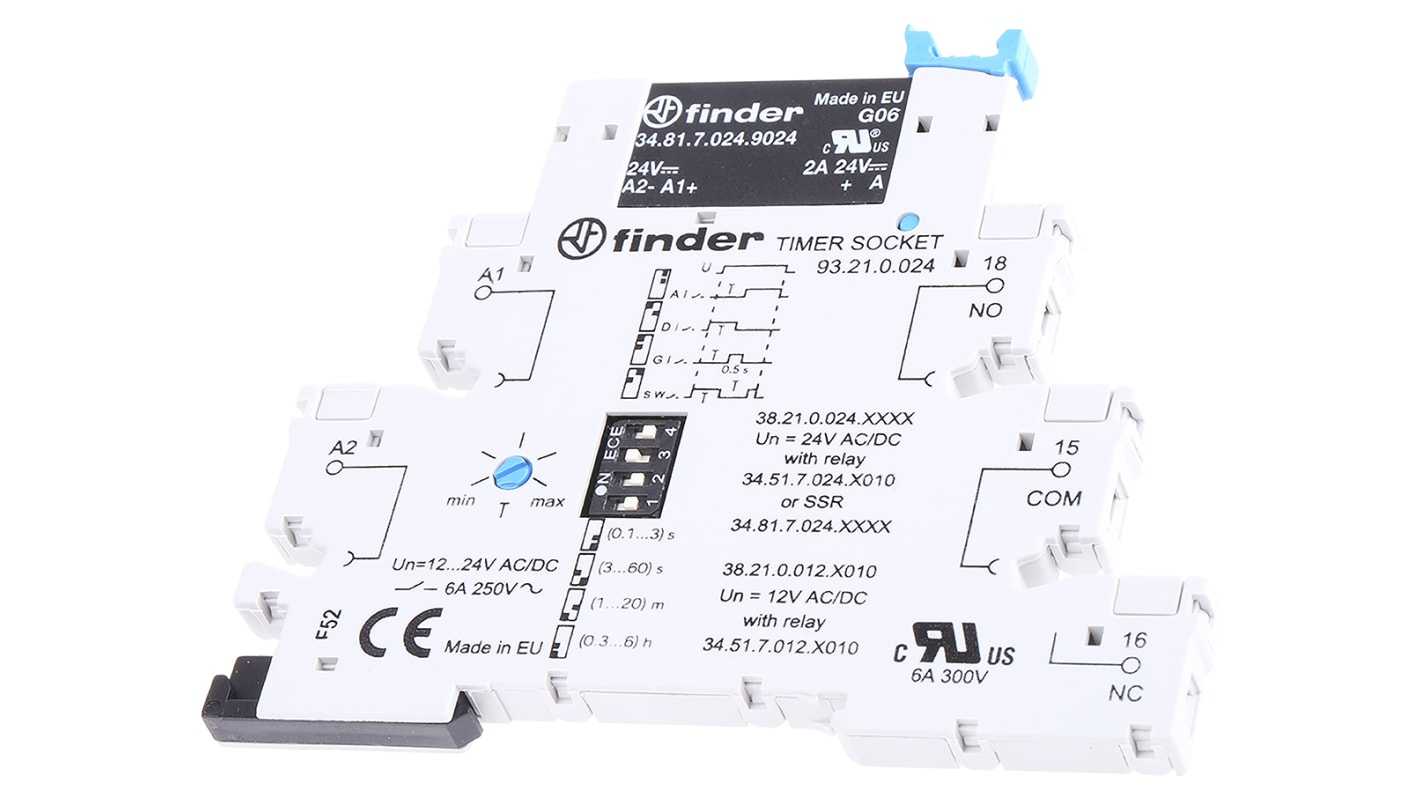

38.21.0.024.9024 - Finder ON Delay, ON Pulse Timer Relay, 0.1 s – 6h 24 V AC/DC (DIN Rail)

38.21.0.024.9024 - Finder ON Delay, ON Pulse Timer Relay, 0.1 s – 6h 24 V AC/DC (DIN Rail)

SKU38.21.0.024.9024BrandFinder
AED 215.00
AED 215.00
Sale Sold out
Shipping calculated at checkout.

The 38.21.0.024.9024 is a versatile timer relay manufactured by Finder, part of the 38 series. Featuring ON Delay, ON Pulse timing mode with a configurable time range of 0.1 s – 6h across Hours, Seconds increments, this timer relay operates on a 24 V AC/DC supply voltage. It provides SPDT output contacts rated for 10 A at 400 V AC, with Screw termination and DIN Rail installation. With multi function timer, a External power supply configuration, it delivers precise, repeatable time control for industrial automation sequences, motor starting, lighting control, HVAC scheduling, and process timing applications.

View full details
ParameterValue
Supply Voltage
24 V AC/DC
Mounting Type
DIN-Rail
Mode of Operation
ON-Delay, ON-Pulse
Time Range
0.1 s to 6 h
Number of Contacts
1
Number of Timer Functions
Multi-Function
Contact Configuration
SPDT
Time Increment
hours, seconds
Maximum Current
10 A
Maximum Voltage
400 V AC
Terminal Type
Screw
Switch Configuration
SPDT
ParameterValue
Width
6.2 mm
Minimum Voltage
250 V AC
Power Supply
External
Minimum Current
6 A
Series
38 Series
Depth
75.6 mm
Maximum Operating Temperature
55 °C
Length
6.2 mm
Minimum Operating Temperature
-20 °C
Time Delay
0.5 s
Contact Material
Silver-Alloy
