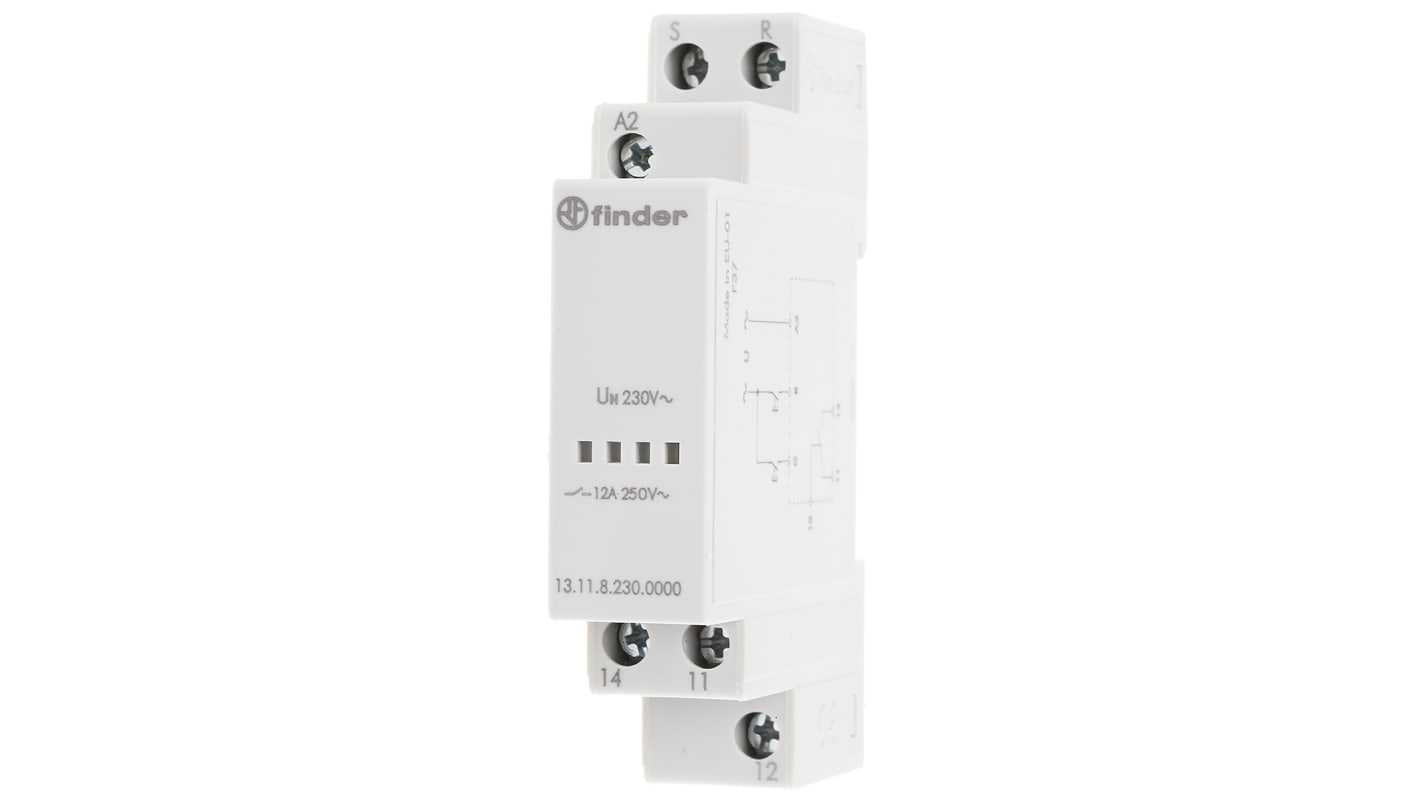

13.11.8.230.0000 - Finder SPDT Power Relay, 12000 mA (230 VAC)

13.11.8.230.0000 - Finder SPDT Power Relay, 12000 mA (230 VAC)

SKU13.11.8.230.0000BrandFinder
AED 186.00
AED 186.00
Sale Sold out
Shipping calculated at checkout.

The 13.11.8.230.0000 is a precision-engineered power relay from Finder, part of the 13 Series. Featuring a SPDT contact configuration rated at 12000 mA switching current, operating on a 230 VAC coil. Its Silver Alloy contacts minimize resistance and arcing, with DIN-Rail installation and Screw terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Finder
  • Application: General Purpose
  • Coil Power: 700 mW
  • Coil Voltage: 230 VAC
  • Contact Configuration: SPDT
  • Contact Material: Silver Alloy
  • Depth: 60.8 mm
  • Height: 88.8 mm
  • Isolation Coil To Contact: 2 kV
  • Latching: Yes
  • Length: 17.5 mm
  • Life: 100000 (Electrical) cycles
  • Maximum Operating Temperature: 60 °C
  • Maximum Switching Power AC: 3 kVA
  • Maximum Switching Voltage: 400 VAC
  • Maximum Switching Voltage AC: 400 VAC
  • Minimum Operating Temperature: -10 °C
  • Mounting Type: DIN-Rail
  • Number of Poles: 1
  • Series: 13 Series
  • Switching Current: 12000 mA
  • Terminal Type: Screw
