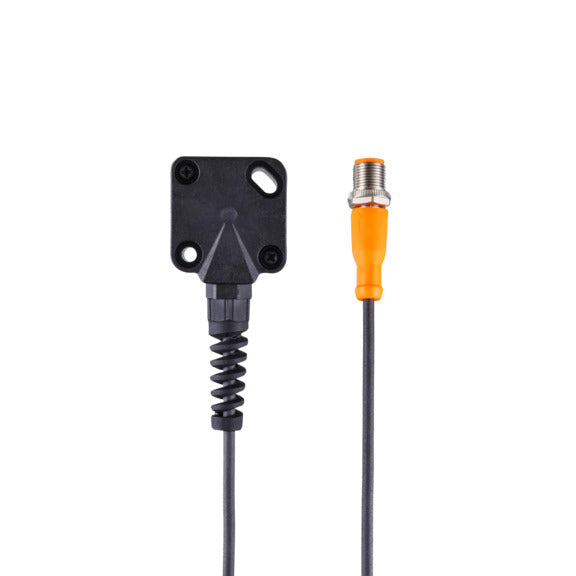

IFM EC2082 - Inclination Sensor, Single-Axis ±90°, 4-20 mA

Q: What is the measuring range of the IFM EC2082 inclination sensor?

The EC2082 is a single-axis inclination sensor with an angular range of +/- 90 degrees. It operates on a static function principle.

Q: What output does the IFM EC2082 provide?

The EC2082 has 1 analogue current output of 4...20 mA, with a maximum load of 400 ohms.

Q: What is the repeatability of the IFM EC2082?

The EC2082 has a repeatability of 0.1 degrees.

Q: What operating voltage and current does the IFM EC2082 need?

The EC2082 runs on 20...30 V DC and draws a current consumption of less than 35 mA.

Q: What is the housing material and IP rating of the IFM EC2082?

The EC2082 has a PPO housing rated to protection IP 67, with protection class III.

Q: What is the operating temperature range of the IFM EC2082?

The EC2082 has an ambient temperature range of -30...85 degrees C.

Q: How is the IFM EC2082 connected electrically?

The EC2082 uses an M12 A-coded connector (pin 1 = L+, pin 3 = L-, pin 4 = analogue output) via a 0.2 m cable pigtail.

Q: Does the IFM EC2082 have protection circuitry?

Yes, the EC2082 includes reverse polarity protection and overload protection.

SKUEC2082BrandIFM

AED 928.59

~~AED 1,031.75~~ AED 928.59

Sale Sold out

Shipping calculated at checkout.

Only 10 left

Quantity

IFM EC2082 Inclination Sensor — single-axis static inclinometer, ±90°, 4-20 mA, 0.1° repeatability, mobile-rated. Static inclination sensor, 1 axis, ±90° range, 4-20 mA analogue, repeatability 0.1°, 20...30 V DC, IP67, -30...85 °C.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: EC2082

EC2082 Applications

The IFM EC2082 is a static inclination sensor (inclinometer) used for precise detection of angles of inclination. It is suited for platform levelling, boom and outrigger position, and tilt monitoring on mobile machines and industrial equipment. It measures a single axis over a ±90° range with 0.1° repeatability and provides a precise 4-20 mA analogue output. The rugged IP67 housing and wide -30...85 °C temperature range with high shock and vibration resistance make it well suited to demanding mobile and outdoor applications.

EC2082 Specifications

Brand	IFM	Product Type	Inclination sensor (static inclinometer)
IFM Type Code	R360/INCLINOMETER/4-20mA/II	Measurement Axes	1
Angular Range	± 90°	Function Principle	Static
Output	4...20 mA analogue	Repeatability	0.1°
Operating Voltage	20...30 V DC	Current Consumption	< 35 mA
Protection Rating	IP 67	Ambient Temperature	-30...85 °C
Housing Material	PPO	Installation Position	Vertical
Electrical Connection	0.2 m cable + M12 connector, A-coded	Weight	191.8 g
