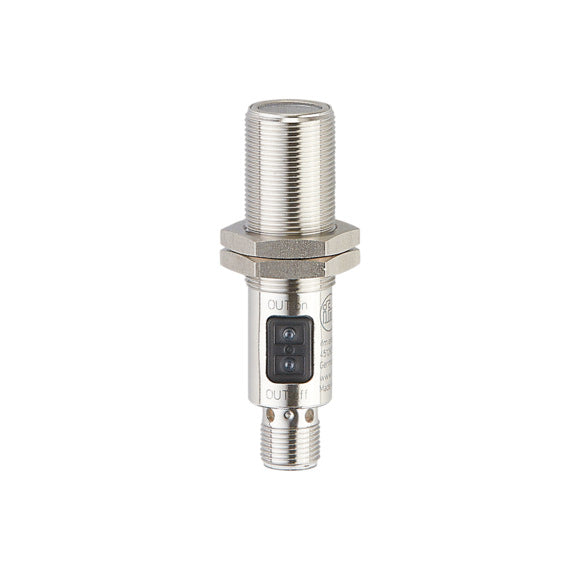

IFM OGH500 - Diffuse Reflection Sensor, M18 Background Suppression, 300 mm Range

IFM OGH500 - Diffuse Reflection Sensor, M18 Background Suppression, 300 mm Range

SKUOGH500BrandIFM
AED 511.69
AED 568.54 AED 511.69
Sale Sold out
Shipping calculated at checkout.

IFM OGH500 Diffuse Reflection Sensor — M18 stainless diffuse sensor with background suppression, 15...300 mm. Diffuse reflection with background suppression, red light 624 nm, 15...300 mm, PNP light-on/dark-on, M18 x 1 stainless, 10...36 V DC, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: OGH500

Also known as: IFM OGH500 distance sensor / laser sensor / photoelectric sensor / optical sensor.

OGH500 Applications

The IFM OGH500 is used for object detection and positioning in factory automation where reliable short-to-mid range sensing with background suppression is needed. It is suited for part-present checks on conveyors, label and cap detection, and end-position sensing where reflective backgrounds must be ignored. The robust M18 stainless steel housing suits harsh industrial environments, precise background suppression rejects surfaces behind the target, the light-on/dark-on mode is programmable, and sensitivity is set intuitively via pushbutton.

OGH500 Specifications

Brand IFM Product Type Diffuse reflection sensor with background suppression
IFM Type Code OGH-FPKG/US100 Type of Light Red light, 624 nm
Electrical Design PNP Output Function Light-on / dark-on (programmable)
Range 15...300 mm (90% remission); 15...190 mm on black (6%) Background Suppression Yes, adjustable
Switching Frequency 1000 Hz Operating Voltage 10...36 V DC
Current Consumption 25 mA Housing M18 x 1, L = 72 mm, threaded
Protection Rating IP 67 Ambient Temperature -25...80 °C
Housing Material Stainless steel (316L / 1.4404) Electrical Connection M12 connector, A-coded, 4 contacts
Weight 61.1 g

OGH500 Datasheet & Manual

Download Datasheet & ManualIFM OGH500 · PDF · Official IFM document

OGH500 – Frequently Asked Questions (FAQ)

What is the range of the IFM OGH500?

The OGH500 diffuse reflection sensor with background suppression has a range of 15...300 mm (referenced to white paper 200 x 200 mm at 90 % remission).

What light source does the IFM OGH500 use?

The OGH500 uses red light with a wavelength of 624 nm.

What is the output type of the IFM OGH500?

The OGH500 is a PNP sensor with programmable light-on/dark-on mode (factory setting light-on mode) and a maximum voltage drop of 2.5 V DC.

What is the switching frequency and current rating of the IFM OGH500?

The OGH500 has a switching frequency of 1000 Hz DC and a permanent current rating of 150 mA (200 mA at -60 C).

What is the operating voltage and protection of the IFM OGH500?

The OGH500 operates on 10...36 V DC with a current consumption of 25 mA, and includes reverse polarity and pulsed short-circuit protection.

What is the housing size and material of the IFM OGH500?

The OGH500 has an M18 x 1 housing with a length of 72 mm, made of stainless steel (316L/1.4404), PA, LCP, EPDM and TPU, with a PMMA front pane.

What temperature range and IP rating does the IFM OGH500 have?

The OGH500 operates from -25...80 C and is rated IP 67.

What is the electrical connection and indicator of the IFM OGH500?

The OGH500 connects via 1 x M12 A-coded connector with 4 contacts and has a 1 x yellow LED switching status display; the range is adjustable.
