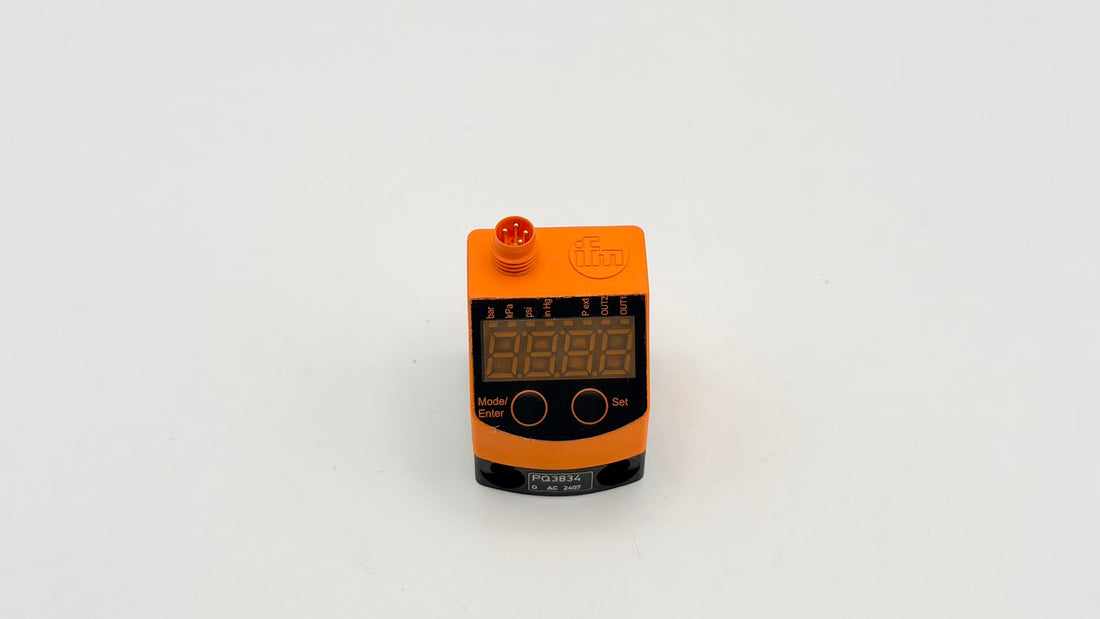

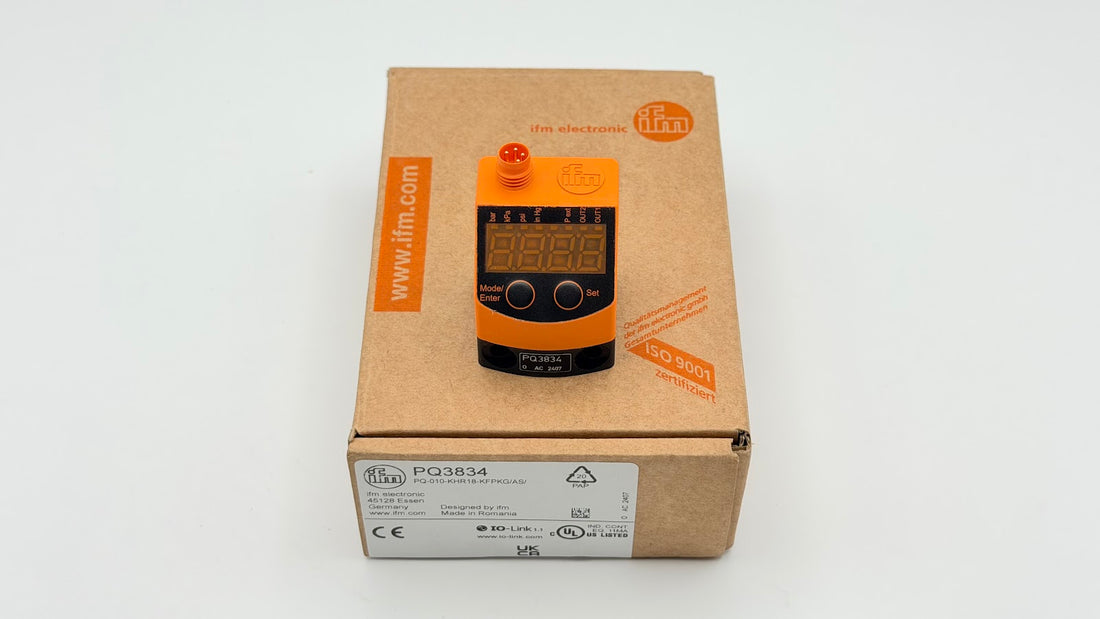

IFM PQ3834 Pressure Sensor for Pneumatics — programmable pneumatic pressure sensor in a PBT housing, -1...10 bar range, dual G1/8 + M5 connections, 4-digit LED display and IO-Link. -1...10 bar, PNP switching + 4...20 mA analogue, IO-Link, G1/8 + M5, 18...32 V DC, IP 65, 4-digit LED display.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: PQ3834
Also known as: IFM PQ3834 pressure sensor / pressure transmitter / pressure switch.
PQ3834 Applications
The IFM PQ3834 is an electronic pressure sensor designed for pneumatic applications and compressed-air monitoring. It measures relative pressure over a -1...10 bar range and provides a programmable PNP switching output with IO-Link plus a scalable 4...20 mA analogue output. A 4-digit alphanumeric LED display shows the pressure in bar, kPa, psi or inHg, while a yellow LED indicates switching status. Dual G1/8 and M5 process connections and a compact PBT housing suit it to machine building, valve terminals and vacuum or low-pressure pneumatic circuits.
PQ3834 Specifications
Brand
IFM
Product Type
Pressure sensor for pneumatics
IFM Type Code
PQ-010-KHR18-KFPKG/AS/
Measuring range
-1...10 bar / -100...1000 kPa / -15...145 psi
Permissible overpressure
20 bar
Bursting pressure (min.)
30 bar
Medium
compressed air (relative pressure)
Output function
1 x switching PNP NO/NC programmable, IO-Link; 1 x analogue
Analogue output
4...20 mA (max. load 500 Ω)
Accuracy (characteristics deviation)
< ± 0.25 % (BFSL) / < ± 0.5 % (LS)
Operating voltage
18...32 V DC
Current rating
100 mA
Protection rating
IP 65
Ambient temperature
0...70 °C
Medium temperature
0...60 °C

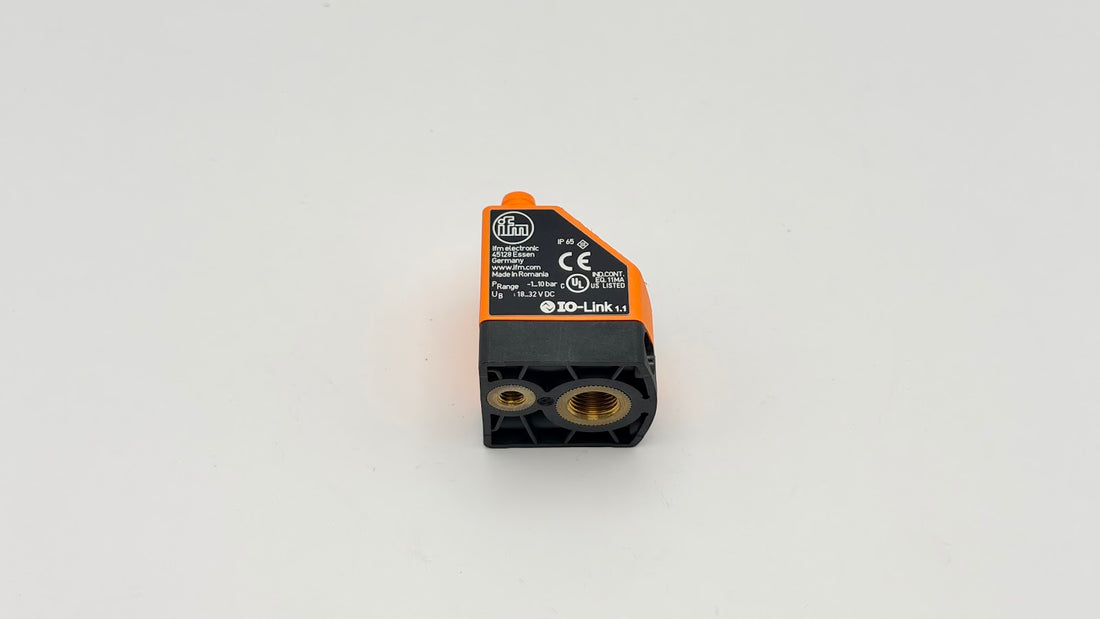

Process connection
G1/8 + M5
Housing / display
PBT housing; 4-digit alphanumeric LED (green) + yellow status LED
What pressure range and overload does the PQ3834 measure?
It measures a relative-pressure range of -1...10 bar (-100...1000 kPa / -15...145 psi), with a permissible overpressure of 20 bar and a bursting pressure of at least 30 bar.
What media is the PQ3834 suitable for?
It is designed for pneumatics and compressed air, measuring relative pressure, with a medium temperature of 0...60 °C.
How accurate is the PQ3834?
The characteristics deviation is < ± 0.25 % of the span (BFSL) / < ± 0.5 % (limit setting).
What outputs does the PQ3834 provide?
OUT1 is a PNP switching output (NO/NC programmable) with IO-Link, and OUT2 is a 4...20 mA analogue output with max. 500 Ω load.
Does the PQ3834 support IO-Link?
Yes, the switching output OUT1 is IO-Link capable for digital process-data and parameter communication.
What is the supply voltage of the PQ3834?
It runs on 18...32 V DC with reverse-polarity, pulsed short-circuit and overvoltage protection.
What are the housing materials and IP rating of the PQ3834?
The housing is PBT, rated to IP 65, with an ambient temperature range of 0...70 °C.
How is the PQ3834 connected and how is pressure displayed?
It connects via an M8 connector with gold-plated contacts, offers G1/8 and M5 process connections, and shows readings on a 4-digit alphanumeric green LED display.
